Hydroquip Grundfos 12-18 GPM Circulating Pump, 230V, 59896292 In stock$17399
Hydroquip Grundfos 12-18 GPM Circulating Pump, 230V, 59896292
30 day returns · Easy, with prepaid labels provided
Quick overview
- 12 to 18 GPM The flow range given for this pump, suited to circulation duty rather than filtration duty.
- 230V Wired for 230 volts, so confirm the supply at the pack before ordering.
- 1 inch barb The connection size listed, which is the common circulation plumbing size on a spa pack.
- Grundfos built The pump itself is a Grundfos unit, carried here under Hydroquip part number 59896292.
- Circulation duty A circ pump runs long and slow to keep water moving past the heater and the sanitizer, instead of cycling hard for a few hours.
- Quiet by design Low flow circulation pumps run at a fraction of the noise of a two speed jet pump, which is the point of having one.
Need a hand?
Similar products
Other products people compare with this one.
Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699
Doughboy Embassy PowerLine XP 1 HP Pump and Motor, 115V, 5-3196-003$24199
Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141$8199
Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010$27499
Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010$27599
Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299
HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399
Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord, .95 HP, SD-10-1-N$32499
Waterway Hi-Flo II 2 Speed Above Ground Pool Pump with 3' NEMA Cord, 1 THP, SD-10-2-N$34399
Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399
Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$37899
Hayward 1 HP Power-Flo LX Pump with 3' Cord, W3SP1580$39900

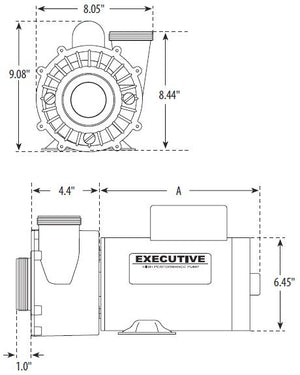

Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$40099
Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10$41799
Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15$41900
Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299
Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$47999
Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$50900
Web Price
Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$52900
Web Price
CaliMar Variable Speed Pool Pump, 1.5 in. Threaded Ports, 1.5 HP, CMAR15VS1.5$59900
Product details

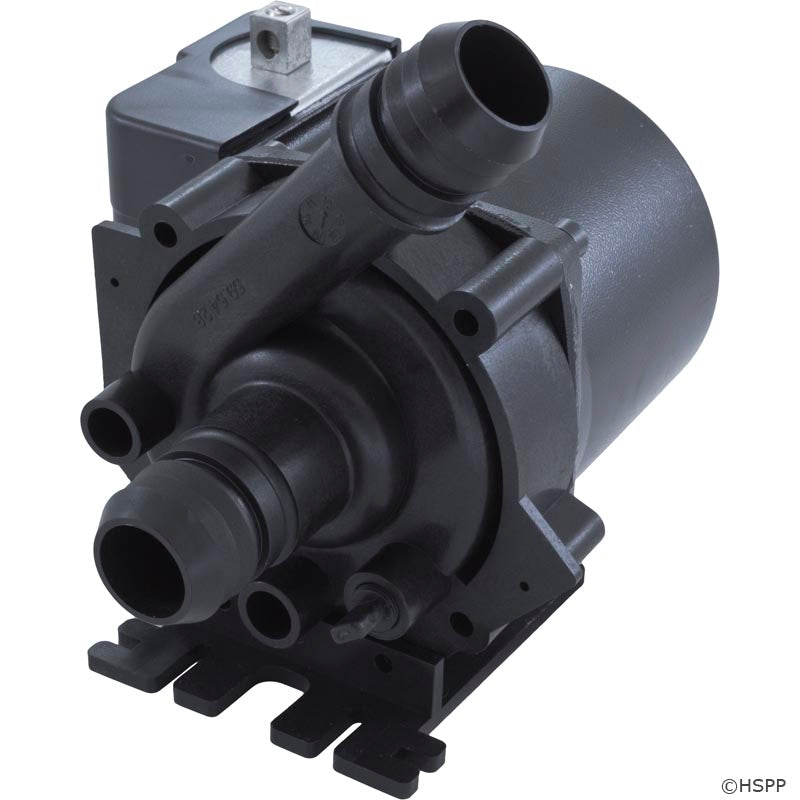

This is a Grundfos circulating pump, carried under Hydroquip part number 59896292. It moves 12 to 18 gallons per minute on 230V and connects through a 1 inch barb.
What a circ pump is for
A circulation pump is not a small jet pump. It runs long hours at low flow so the water keeps passing the heater and the sanitizer even when nobody is in the spa. That steady turnover is what keeps the temperature even and the chemistry stable, and it does the job on a fraction of the power a jet pump would draw.
Before you order
Two things decide the fit: the supply voltage at the pack and the plumbing size. This pump is 230V with a 1 inch barb, so confirm both against what is installed. Our record does not list a spa model compatibility beyond those figures.
| Brand | Hydroquip |
|---|---|
| Manufacturer part number | 59896292 |
| Pump make | Grundfos |
| Type | Circulating pump |
| Flow rate | 12-18 GPM |
| Voltage | 230V |
| Connection | 1 inch barb |
| Size | 1 inch |
| Shipping weight | 4.3 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Questions and answers
What people ask about this product, answered by our pool techs.
What flow does it move?
What voltage does it need?
What size are the connections?
Is this a jet pump or a circulation pump?
