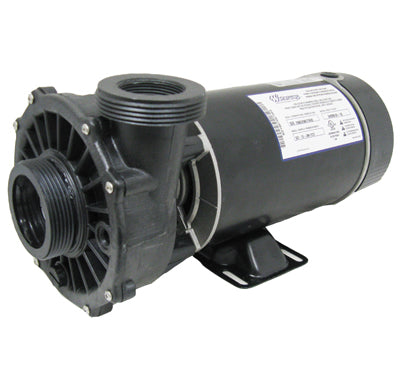

Waterway 3420610-10 Hi-Flo 1.5 HP two speed 115V side discharge pumpWaterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10 In stock$41799
Waterway 3420610-10 Hi-Flo 1.5 HP two speed 115V side discharge pump
Shop all Waterway

Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10

Ask a questionMPN 3420610-10
$41799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two speed operation Runs 16.4 A on high and 4.4 A on low, so filtration can hold a low speed and step up when needed.
  • 1.5 HP on 115V Wired for a standard 115 V, 60 Hz supply.
  • 48 frame Built on the 48 frame footprint listed by Waterway.
  • Side discharge The discharge leaves the side of the volute rather than the top.
  • 2 inch plumbing Both the intake and the discharge are 2 inch connections.
  • Waterway built Supplied as the Waterway assembly, part 3420610-10.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10, SKU WWP-10-1411. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10
Waterway

1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10

$41799
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Hayward W3SP1580X15 Power-Flo LX 1.5 HP above ground pool pump with 6 ft cord Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15$41900 Hayward W3SP1580 Power-Flo LX 1 HP 115 V above ground pool pump with 3 ft cord Hayward 1 HP Power-Flo LX Pump with 3' Cord, W3SP1580$39900 CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housing CaliMar Variable Speed Pool Pump, 1.5 in. Threaded Ports, 1.5 HP, CMAR15VS1.5$59900 Hayward W3SP1593 Power-Flo Matrix 1.5 HP above ground pool pump with cord Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$52900 Web Price Hayward W3SP1592 PowerFlo Matrix 1 HP above ground pool pump with cord Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$50900 Web Price Waterway Hi-Flo II SD-10-2-N two speed above ground pool pump with NEMA cord Waterway Hi-Flo II 2 Speed Above Ground Pool Pump with 3' NEMA Cord, 1 THP, SD-10-2-N$34399 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Waterway Hi-Flo II SD-10-1-N above ground pool pump and trap with 3' NEMA cord Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord, .95 HP, SD-10-1-N$32499 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699
Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$38899 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010$26599 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$36699 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$46599 Doughboy Embassy PowerLine XP 1 HP pump and motor, 115V, part 5-3196-003 Doughboy Embassy PowerLine XP 1 HP Pump and Motor, 115V, 5-3196-003$24199 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010$26799 Hayward Power-Flo Matrix W3SP15932S 1.5 HP two speed above ground pool pump with switch Hayward Power-Flo Matrix 1.5 HP 2 Speed with Switch, W3SP15932S$62900 Web Price CaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing 1 HP Variable Speed 2 in. Threaded Ports CaliMar Pool Pump, 230V, CMARVSP1.0$64900 Web Price

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

This is the Waterway Hi-Flo, a 1.5 HP two speed pump on a 48 frame, wired for 115 V at 60 Hz with side discharge and 2 inch intake and discharge connections.

Two speeds, two jobs

On low speed the motor draws 4.4 A, and on high speed it draws 16.4 A. That gap is the point of a two speed pump: routine turnover can run on low for a fraction of the current, and the high speed is there when a task actually calls for flow, such as vacuuming or backwashing.

Plumbing

Both ports are 2 inch, and the discharge exits the side of the volute rather than the top. Measure the existing pump before ordering, since side discharge and top discharge pumps are not interchangeable in a tight equipment pad without repiping.

A note on the listing

Waterway lists this assembly as a 48 frame spa pump, while it is sold here under pool pumps and tagged for above ground use. The electrical and plumbing figures above are the manufacturer values either way.

Specifications
Brand Waterway
Manufacturer part number 3420610-10
UPC 806105071828
Item 48-Frame Spa Pump
Type Side Discharge
Voltage rating 115 V
Amperage rating 16.4 A High Speed, 4.4 A Low Speed
Frequency rating 60 Hz
HP rating 1.5 HP
Motor speed 2-Speed
Connection size 2 Inch Intake & Discharge
Pool type Above Ground
Shipping weight 30 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What are the plumbing connections?
Two inch intake and two inch discharge, with the discharge coming off the side of the volute.
What does it draw?
16.4 A on high speed and 4.4 A on low speed, at 115 V and 60 Hz.
Is this a pool pump or a spa pump?
The listing carries both readings. It is sold under Waterway pool pumps and tagged for above ground use, while the manufacturer spec line calls it a 48 frame spa pump. Check the application against your plumbing before ordering.
What is the advantage of two speeds?
Low speed moves water for far less current, so routine filtration can run there, and high speed is available for vacuuming, heating or backwashing.
