Hayward W3SP1580X15 Power-Flo LX 1.5 HP above ground pool pump with 6 ft cordHayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15 In stock$41900

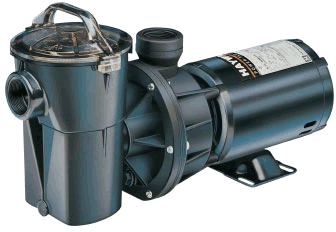

Hayward W3SP1580X15 Power-Flo LX 1.5 HP above ground pool pump with 6 ft cord
Shop all Hayward

Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15

Ask a questionMPN W3SP1580X15
$41900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1.5 HP Power-Flo LX single speed motor for above ground pools.
  • Plug and play 115V with a 6 ft standard 3 prong cord, no hard wiring.
  • 15 A draw runs on a standard household circuit.
  • Strainer included integral strainer pot and basket catch leaves before they reach the impeller.
  • 1-1/2 in. connections matches common above ground filter plumbing.
  • Genuine Hayward model W3SP1580X15.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15, SKU HAY-10-1011. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15
Hayward

1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15

$41900
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Hayward W3SP1580 Power-Flo LX 1 HP 115 V above ground pool pump with 3 ft cord Hayward 1 HP Power-Flo LX Pump with 3' Cord, W3SP1580$39900 Hayward W3SP1593 Power-Flo Matrix 1.5 HP above ground pool pump with cord Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$52900 Web Price Hayward W3SP1592 PowerFlo Matrix 1 HP above ground pool pump with cord Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$50900 Web Price Waterway Hi-Flo II SD-10-2-N two speed above ground pool pump with NEMA cord Waterway Hi-Flo II 2 Speed Above Ground Pool Pump with 3' NEMA Cord, 1 THP, SD-10-2-N$34399 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 Waterway Hi-Flo II SD-10-1-N above ground pool pump and trap with 3' NEMA cord Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord, .95 HP, SD-10-1-N$32499 Waterway 3420610-10 Hi-Flo 1.5 HP two speed 115V side discharge pump Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10$41799 Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399
HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010$26599 Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$38899 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$36699 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$46599 Doughboy Embassy PowerLine XP 1 HP pump and motor, 115V, part 5-3196-003 Doughboy Embassy PowerLine XP 1 HP Pump and Motor, 115V, 5-3196-003$24199 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010$26799 Hayward Power-Flo Matrix W3SP15932S 1.5 HP two speed above ground pool pump with switch Hayward Power-Flo Matrix 1.5 HP 2 Speed with Switch, W3SP15932S$62900 Web Price Grundfos 12-18 GPM circulating pump, 230V, Hydroquip part 59896292 Hydroquip Grundfos 12-18 GPM Circulating Pump, 230V, 59896292$17399 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141$8499

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward W3SP1580X15 is a 1.5 HP Power-Flo LX above ground pool pump supplied with its strainer and a 6 ft standard 3 prong cord. It runs on 115 V and draws 15 A, so it plugs into a household GFCI outlet without an electrician.

Built for above ground pools

The Power-Flo LX is Hayward's workhorse for above ground pools. The integral strainer pot and basket collect leaves and debris ahead of the impeller, and the 1-1/2 in. connections match the plumbing on most above ground sand and cartridge filters.

Setting it up

Set the pump on a level base below the water line, plumb the suction and discharge with 1-1/2 in. fittings, fill the strainer pot and plug it in. Keep the cord clear of the water and use a GFCI protected outlet.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read

Parts for this pump

This is the SP1580X15 in Hayward's parts list.

Hayward Power-Flo LX and Power-Flo II parts diagram17 numbered parts, with the ones for the SP1580X15 already picked.Open the diagram

Bought most for this pump

Specifications
Brand Hayward
Manufacturer part number W3SP1580X15
UPC 0610377390453
Series Power-Flo LX
Horsepower 1.5 HP
Voltage 115 V
Amperage 15 A
Cord 6 ft, standard 3 prong
Connection size 1-1/2 in.
Strainer Included
Application Above ground pools
Shipping weight 25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does it need to be hard wired?
No. It comes with a 6 ft standard 3 prong cord and plugs into a 115V outlet. Use a GFCI protected circuit.
How much current does it draw?
15 A at 115 V.
What size plumbing does it take?
1-1/2 in. connections on both the suction and discharge.
Is the strainer basket included?
Yes. The pump ships with its strainer housing and basket fitted.
