Hayward SPX1500CAP strainer housing with basket for Power-Flo LX pumpsHayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP In stock$10899
Hayward SPX1500CAP strainer housing with basket for Power-Flo LX pumps
Shop all Hayward

Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

Ask a questionMPN SPX1500CAP
$10899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Housing and basket together the strainer pot and its basket in one part.
  • Fits the Power-Flo family SP1500 series, Power-Flo LX SP1580 series and Power-Flo II SP1700 and SP1700UN pumps.
  • Also fits Hayward Turbo-Flo SP2075 and SP2175 and the Leslie's Hydramax above ground pumps.
  • Check the stamp SP-1515 is stamped into the side of the housing.
  • Sizes 5-5/8 in. pot inside diameter, 6-1/8 in. outside diameter inside the notches, 6-1/2 in. outside the notches.
  • Plastic construction genuine Hayward part number SPX1500CAP.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP, SKU HAY-101-1431. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP
Hayward

Power-Flo LX Replacement Strainer Housing with Basket, SPX1500CAP

$10899
Hayward Flush Union Connectors, SP1500UNPAK2C
Hayward

Flush Union Connectors, SP1500UNPAK2C

$2799
Hayward Union Connector, 2 Pack, SP1500UNPAK2
Hayward

Union Connector, 2 Pack, SP1500UNPAK2

$2499
Hayward O-Ring for Strainer, 1-15/16 in. ID, SPX1500W
Hayward

O-Ring for Strainer, 1-15/16 in. ID, SPX1500W

$342
Hayward Power-Flo Matrix Strainer Housing O-Ring, SPX5500H
Hayward

Power-Flo Matrix Strainer Housing O-Ring, SPX5500H

$1699
Hayward Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA
Hayward

Seal Assembly for Power-Flo Matrix Pool Pump, SPX1500KA

$4499
Hayward PowerFlo Matrix Pump Strainer Housing, SPX5500C
Hayward

PowerFlo Matrix Pump Strainer Housing, SPX5500C

$12499
Subtotal

Similar products

Other products people compare with this one.

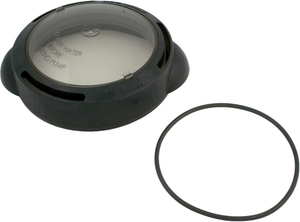

Hayward SPX5500D Power-Flo Matrix strainer cover with lock ring and O-ring Hayward Power-Flo Matrix Strainer Cover Kit, SPX5500D$10799 Hayward SPX1520BT external thread housing cover for Power-Flo LX SP1520UN pumps Hayward Housing Cover with External Thread, 1, 1-1/2 and 2 HP (SP1520UN LX Only), SPX1520BT$9699 Hayward SPX1580AAT Power-Flo LX pump housing with external union threads Hayward Pump Housing with External Union Threads, SPX1580AAT$11299 Hayward SPX1500D2A clear cover strainer lid with o-ring Hayward Cover Strainer Lid with O-Ring, SPX1500D2A$6999 Hayward SPX5500B Power-Flo Matrix pump diffuser cover Hayward Power-Flo Matrix Pump Diffuser Cover SPX5500B$10199 Hayward SP1516 economy ABS complete strainer assembly Hayward Economy ABS Complete Strainer Assembly, SP1516$7599 Hayward SPX5500A plastic pump housing for the Power-Flo Matrix SP1590 pump Hayward Pump Housing for Matrix Pump SP1590, SPX5500A$11499 Hayward SPX1580CH hi performance 1.5 HP impeller for Power-Flo LX pumps Hayward Hi Performance Impeller, 1.5 HP (SP1520UN LX Only), SPX1580CH$5599 Hayward SPX1515C strainer housing C-clip for Power-Flo pool pumps Hayward Strainer Housing C-Clip for Power-Flo Pump, SPX1515C$1899 Hayward SPX0710XZ5 Power-Flo Matrix pump housing o-ring Hayward Power-Flo Matrix Housing O-Ring, SPX0710XZ5$2099

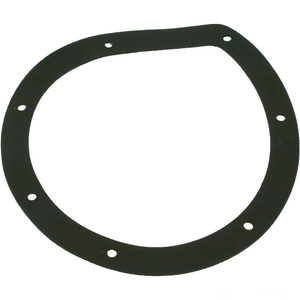

Hayward SPX1500P strainer cover O-ring for Power-Flo pumps Hayward O-Ring, Strainer Cover for Power-Flo Pump, SPX1500P$1599 Hayward SPX5500K Power-Flo Matrix strainer cover o-ring Hayward OEM Power-Flo Matrix Strainer O-Ring, SPX5500K$1099 Hayward Housing Gasket Power-Flo | SPX1500H Hayward Housing Gasket Power-Flo | SPX1500H$346 Hayward SPX1500L genuine 1 HP impeller assembly for Power-Flo and Matrix pumps Hayward Genuine 1 HP Power-Flo Impeller Assembly, SPX1500L$4699 Hayward strainer basket C clip for Power-Flo Matrix SP1590 pumps Hayward Strainer Basket C Clip, SPX5500G$1799 Hayward SPX1580Z1 Power-Flo LX pump housing o-ring Hayward Genuine OEM PowerFlo LX Pump Housing O-Ring, SPX1580Z1$1999 Hayward SPX1700FG drain plug with gasket for pool pumps made after 1991 Hayward Drain Plug with Gasket for Select Hayward Equipment, SPX1700FG$1099 Hayward SPX5500E shroud assembly for the Matrix SP1590 pump Hayward Shroud Assembly for Matrix Pump SP1590, SPX5500E$5199 Hayward SPX1500LH 1 HP high performance impeller for the Power-Flo LX pump Hayward 1 HP PowerFlo LX Pump High Performance Impeller, SPX1500LH$4999 Hayward SPX2607C impeller for 3/4 HP full rate and 1 HP max rate pumps Hayward Impeller, 1 HP Max Rate, 3/4 HP Full Rate, SPX2607C$4999

Product details

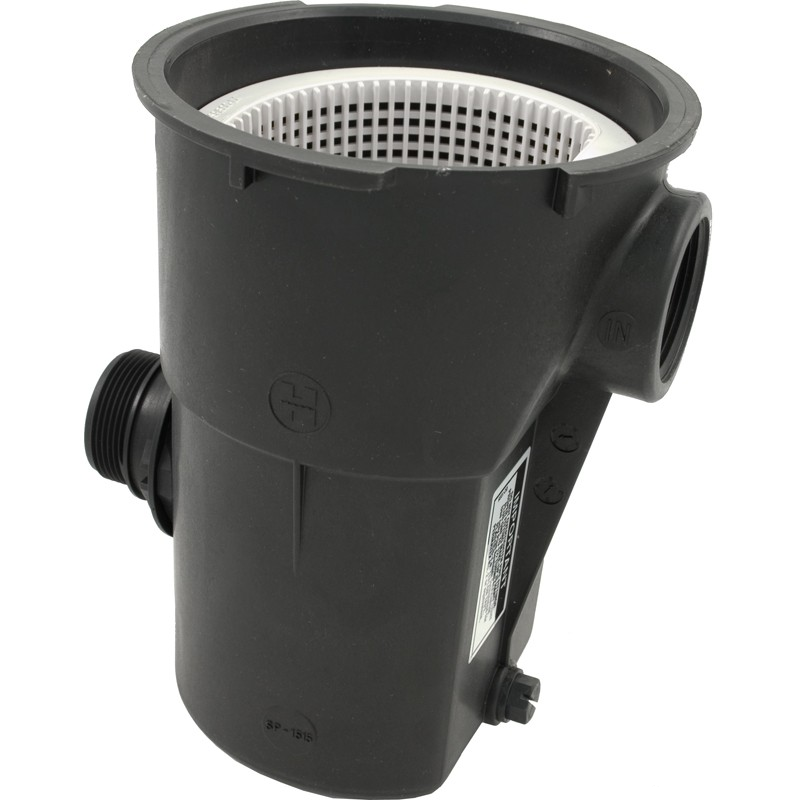

The Hayward SPX1500CAP is the genuine strainer housing, supplied with its basket, for the Power-Flo line of above ground pool pumps. It replaces the pot on the Power-Flo SP1500 series, the Power-Flo LX SP1580 series and the Power-Flo II SP1700 and SP1700UN, and also fits the Turbo-Flo SP2075 and SP2175 and the Leslie's Hydramax above ground pumps.

Confirm the fit

Hayward stamps SP-1515 into the side of this housing. If you cannot read the stamp on yours, measure it: the pot is 5-5/8 in. inside diameter, 6-1/8 in. across the outside measured inside the notches and 6-1/2 in. measured across the notches.

What is and is not included

You get the plastic housing and the basket. The clear strainer cover, its o-ring and the housing o-ring are separate parts, so check them while the pump is apart and replace anything that is cracked or flattened. A little silicone lubricant on the o-rings makes reassembly easier and keeps the lid from pulling air.

Specifications
Brand Hayward
Manufacturer part number SPX1500CAP
UPC 610377551489
Type Strainer housing with basket
Material Plastic
Housing stamp SP-1515
Pot inside diameter 5-5/8 in.
Outside diameter, inside notches 6-1/8 in.
Outside diameter, outside notches 6-1/2 in.
Fits Hayward Power-Flo SP1500 series, Power-Flo LX SP1580 series, Power-Flo II SP1700 and SP1700UN, Turbo-Flo SP2075 and SP2175, Leslie's Hydramax above ground pumps
Shipping weight 2.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does it fit?
The Hayward Power-Flo SP1500 series, Power-Flo LX SP1580 series, Power-Flo II SP1700 and SP1700UN, Turbo-Flo SP2075 and SP2175, and the Leslie's Hydramax above ground pumps.
How do I confirm it matches my housing?
Look for SP-1515 stamped into the side of your existing housing, and measure the pot: 5-5/8 in. inside diameter, 6-1/8 in. across the outside inside the notches and 6-1/2 in. across the notches.
Does the basket come with it?
Yes. The part is the strainer housing with the basket installed.
Does it include the lid and lid o-ring?
No. The strainer cover lid and its o-ring are separate parts. Order them at the same time if yours are cracked or the o-ring is flattened.
Ask your own question
