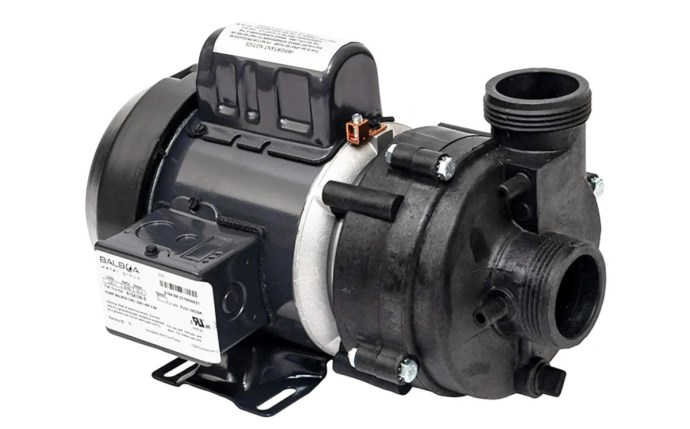

HydroQuip 10-6154106 WOW circulation pumpHydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106 In stock$29399
HydroQuip 10-6154106 WOW circulation pump
Shop all Hydro-Quip

HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106

Ask a questionMPN 10-6154106
$29399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Low draw Runs on 230V and pulls 0.6 amp, so it can circulate continuously without much of an electrical footprint.
  • Self draining volute The volute empties itself when the pump stops, which keeps water from sitting in the housing.
  • Compact body Small enough to fit the tight cabinet space under a tub, and straightforward to install.
  • 1-1/2 inch connections Match this against the plumbing you are tying into before ordering.
  • Quiet by design Built as a bath and whirlpool circulation pump, where noise is the thing owners notice first.
  • Not a filtration pump This is a circulation pump for bath and whirlpool duty, not a pool filter pump.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106, SKU HQP-10-1019. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106
Hydro-Quip

HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106

$29399
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

Hayward W3SP1580X15 Power-Flo LX 1.5 HP above ground pool pump with 6 ft cord Hayward 1.5 HP Power-Flo LX Pump with 6' Cord, W3SP1580X15$41900 Hayward W3SP1580 Power-Flo LX 1 HP 115 V above ground pool pump with 3 ft cord Hayward 1 HP Power-Flo LX Pump with 3' Cord, W3SP1580$39900 Waterway Hi-Flo II SD-10-2-N two speed above ground pool pump with NEMA cord Waterway Hi-Flo II 2 Speed Above Ground Pool Pump with 3' NEMA Cord, 1 THP, SD-10-2-N$34399 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299 Waterway Hi-Flo II SD-10-1-N above ground pool pump and trap with 3' NEMA cord Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord, .95 HP, SD-10-1-N$32499 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 Waterway 3420610-10 Hi-Flo 1.5 HP two speed 115V side discharge pump Waterway 1.5 HP Hi-Flo Pump, 2 Speed, 115V, 48 Frame, Side Discharge, 3420610-10$41799 Grundfos 12-18 GPM circulating pump, 230V, Hydroquip part 59896292 Hydroquip Grundfos 12-18 GPM Circulating Pump, 230V, 59896292$17399 Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$38899
Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010$26599 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$36699 Doughboy Embassy PowerLine XP 1 HP pump and motor, 115V, part 5-3196-003 Doughboy Embassy PowerLine XP 1 HP Pump and Motor, 115V, 5-3196-003$24199 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010$26799 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$46599 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141$7899 Hayward W3SP1592 PowerFlo Matrix 1 HP above ground pool pump with cord Hayward PowerFlo Matrix 1 HP Above Ground Pool Pump with Cord, W3SP1592$50900 Web Price Hayward W3SP1593 Power-Flo Matrix 1.5 HP above ground pool pump with cord Hayward Power-Flo Matrix 1.5HP Pump with 6' Cord, W3SP1593$52900 Web Price CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housing CaliMar Variable Speed Pool Pump, 1.5 in. Threaded Ports, 1.5 HP, CMAR15VS1.5$59900

Product details

The HydroQuip 10-6154106 is a WOW circulation pump with 1-1/2 inch connections, running on 230V and drawing 0.6 amp. It is built as a bath and whirlpool circulation pump rather than a pool filtration pump.

Built to be left alone

The WOW line was designed around reliability in a duty where the pump is buried in a cabinet and nobody is going to look at it again. It is compact, it goes in without a fight, and the self draining volute means water is not left standing in the housing after every cycle. That is a small design decision that matters a lot over years of use.

Check the numbers before you order

Confirm the 1-1/2 inch connection size against your plumbing and confirm you have 230V available at the pump. The horsepower is listed by the manufacturer as 1HP/15HP, which is carried here exactly as given.

Specifications
Brand HydroQuip
Manufacturer part number 10-6154106
Type Circulation pump
Connection size 1-1/2"
Horsepower 1HP/15HP as listed
Voltage 230V
Current 0.6 Amp
Volute Self draining
Shipping weight 50 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hydro-Quip

Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbs Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K$19599 Hydroquip 34-0019-C pressure switch, model 4037P Hydroquip Pressure Switch, 4037P, 34-0019-C$2399 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hydroquip 12-0102-K 4 kW Incoloy heater element with hardware Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K$4099 Hydro-Quip 12-0100F-K 5.5kW titanium M7 heater element Hydro-Quip 5.5kW Titanium M7 Heater Element, 12-0100F-K$5299 Hydroquip 12-0102F-K 4kW titanium M7 heater element Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K$5499 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price Hydroquip 12-0100-K 5.5kW RHS flow through heater element with hardware Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K$3899 HydroQuip 34-0178 1 amp pressure switch HydroQuip 1 Amp Pressure Switch, 34-0178$4599 Hydroquip 60-0015 2 inch ridged rubber union gasket Hydroquip 2" Ridged Gasket, 60-0015$799
Hydro-Quip BHS-55-3W BCS-55 series baptismal equipment system with 5.5kW heater, 240V Hydro-Quip BCS-55 Series Baptismal Equipment, 5.5kW Heater, 240V, BHS-55-3W$34799 Hydro-Quip BES6000 baptismal 5.5 kW heating and control system, 120/240V Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000$84399 Hydro-Quip PBES6040 portable baptismal heater and pump package Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040$72799 Hydro-Quip BES6005 11kW baptismal heating and control system Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW$89699 Hydro-Quip PBES-6010 portable baptismal equipment with 1.0kW heater and pump Hydro-Quip PBES6010 Portable Baptismal Equipment, 1.0kW Heater and Pump, 120V$65399 Hydro-Quip BIS-60-240-GF Immersion Series baptistry heater, 6.0 kW 240V Hydro-Quip Immersion Series Baptistry Heater, 6.0 kW 240V 30 Amp GFCI, BIS-60-240-GF$57499 Hydro-Quip BES-55 baptismal equipment pack with 5.5kW heater and pump Hydro-Quip BES-55 Series Baptismal Equipment, 5.5kW Heater and Pump, 120/208/240V$67199 Hydro-Quip BES6005T baptismal 11kW heating and control system with 7 day timer Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T$70999 HydroQuip BCS6000-U 5.5 kW baptistry heating control system HydroQuip 5.5 kW Baptistry Heating Control System, without Pump Option, BCS6000-U$53099

Questions and answers

What people ask about this product, answered by our pool techs.

What size are the connections?
1-1/2 inch. Check that against the plumbing at the pump location before you order, because adapting a circulation pump adds restriction you do not want.
How much power does it draw?
It is listed at 230V and 0.6 amp, which is a small enough draw to leave running.
What does a self draining volute do for me?
It lets the pump housing empty itself when the pump shuts off, so standing water is not left sitting in the volute between runs.
Is this a pool filter pump?
No. It is a circulation pump built for bath and whirlpool use. A pool filter pump is a different machine with much higher flow.
