Hydro-Quip BES6000 baptismal 5.5 kW heating and control system, 120/240VHydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000$84399
Hydro-Quip BES6000 baptismal 5.5 kW heating and control system, 120/240V
Shop all Hydro-Quip

Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000

Ask a questionMPN BES6000
$84399
FREE Delivery
Typically ships within 2 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Purpose built for baptistries A packaged heating and control system for baptismal equipment rather than a repurposed spa pack.
  • 5.5 kW heater The 5.5 kW model in the Hydro-Quip range, part number BES6000.
  • 120/240V, 4 wire Runs on 120/240 volt, four wire, 60 Hz service.
  • 36 amp draw Total amp draw is 36A, and Hydro-Quip lists a 50 amp circuit breaker for it.
  • Compact cabinet The 5.5 kW cabinet measures 13"H x 27"W x 15"D.
  • Larger model available Hydro-Quip also lists an 11 kW pair, the BES6005 and BES6005T, drawing 56A on a 70 amp breaker.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000, SKU PSU-155296. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000
Hydro-Quip

Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000

$84399
Hydroquip Pressure Switch, 4037P, 34-0019-C
Hydro-Quip

Hydroquip Pressure Switch, 4037P, 34-0019-C

$2399
Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K
Hydro-Quip

Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K

$4099
Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K
Hydro-Quip

Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K

$5499
Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K
Hydro-Quip

Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K

$3899
Hydro-Quip 5.5kW Titanium M7 Heater Element, 12-0100F-K
Hydro-Quip

5.5kW Titanium M7 Heater Element, 12-0100F-K

$5299
HydroQuip 1 Amp Pressure Switch, 34-0178
Hydro-Quip

HydroQuip 1 Amp Pressure Switch, 34-0178

$4599
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite 42001-0051S combination gas control valve assembly for MasterTemp and Max-E-Therm heaters Sta-Rite MasterTemp and Max-E-Therm Combination Gas Control Valve Assembly, 42001-0051S$42299 Raypak 009832 D-2 power vent kit in cool dark gray galvanized steel cabinet for 206 to 267 pool heaters Raypak D-2 Indoor Power Vent 206-267 120/240V, 009832$74199 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899 Sta-Rite 77707-0234 MasterTemp and Max-E-Therm tube sheet coil assembly kit Sta-Rite MasterTemp and Max-E-Therm Tube Sheet Coil Assembly Kit, 77707-0234$1,16099 Pentair 474060 cupro nickel tube sheet coil assembly kit for MasterTemp 300NA and 300LP heaters Pentair Tube Sheet Coil Assembly Kit, Cupro Nickel, for MasterTemp 300NA and 300LP, 474060$1,05399 Hayward HAXCPA1932 H-Series ED2 control bezel assembly Hayward H-Series Control Bezel Assembly ED2, HAXCPA1932$69099 Hayward IDXLCPA1930 Low NOx control bezel assembly Hayward Low NOx Control Bezel Assembly, IDXLCPA1930$68899 Raypak 017975F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Heat Exchanger Copper Tube Bundle for 266A and 267A, 017975F$1,09399 Raypak brand image for the 017974F copper heat exchanger tube bundle Raypak Copper Heat Exchanger Tube Bundle for 206A and 207A, 017974F$1,10499 Raypak 014324F control ignition HSI multi try kit Raypak 014324F Control Ignition HSI Multi Try Kit$54599
Sta-Rite 77707-0255 air blower kit for the 333 propane Max-E-Therm burner system Sta-Rite Air Blower Kit for 333 Propane Max-E-Therm Burner System, 77707-0255$70999 Hayward IDXL2BWR1931 LoNox IDL2 blower and control board kit Hayward LoNox IDL2 Blower/Control Board Kit, IDXL2BWR1931$64299 Raypak 014325F PIM ignition control single try module Raypak 014325F PIM Ignition Control Single Try$58799 Zodiac Jandy Laars Heater Ignition Control | R0202900 Zodiac Jandy Laars Heater Ignition Control | R0202900$57099 Jandy R0453600 polymer front header with hardware and gaskets for LXi Low NOx pool heaters Jandy Front Header with Hardware and Gaskets for LXi Low NOx Pool Heaters, R0453600$58599 Pentair MiniMax DDTC Control Circuit Board Assembly | 472100 Pentair MiniMax DDTC Control Circuit Board Assembly | 472100$44699 Zodiac Front Header with Hardware and Gaskets | R0326900 Zodiac Front Header with Hardware and Gaskets | R0326900$81799 Pentair 474059 tube sheet coil assembly kit for MasterTemp 250NA and 250LP heaters Pentair Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059$93499 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$86999 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599

Product details

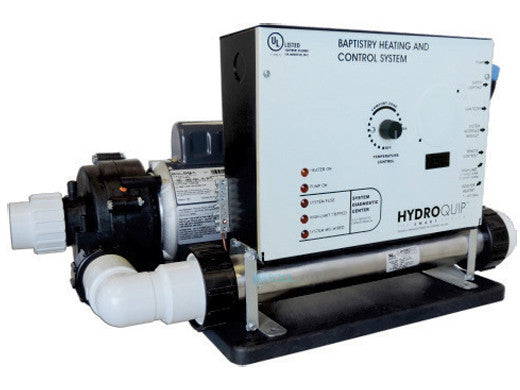

The Hydro-Quip BES6000 is a packaged baptismal heating and control system with a 5.5 kW heater, running on 120/240 volt service. It handles the heating and the control of baptismal equipment as one unit rather than as separately assembled parts.

Electrical

Hydro-Quip specifies four wire, 60 Hz service. The BES6000 and the BES6000T are both listed at a total amp draw of 36A with a 50 amp circuit breaker. That is a dedicated circuit, and it is worth confirming the panel has room before the system arrives.

Space

The cabinet for the 5.5 kW models is listed at 13 inches high by 27 inches wide by 15 inches deep. Hydro-Quip separately gives a minimum space required of 14 inches high by 26 inches wide by 16 inches deep. Those two figures disagree on width, so plan the alcove around the larger of the two and leave room to get a hand behind the unit.

The larger model

If 5.5 kW is not enough for the volume of water, Hydro-Quip lists an 11 kW pair, the BES6005 and BES6005T. Those draw 56A on a 70 amp breaker and sit in a slightly wider cabinet, 13 inches high by 29 inches wide by 15 inches deep.

Specifications
Brand Hydro-Quip
Manufacturer part number BES6000
Type Baptismal heating and control system
Heater output 5.5 kW
Voltage 120/240V
Electrical service 4 wire, 60 Hz
Total amp draw 36A
Circuit breaker size 50
Dimensions 13"H X 27"W X 15"D (5.5KW MODELS)
Minimum space required 14"H X 26"W X 16"D
Shipping weight 50 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hydro-Quip

Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbs Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K$19599 Hydroquip 34-0019-C pressure switch, model 4037P Hydroquip Pressure Switch, 4037P, 34-0019-C$2399 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hydroquip 12-0102-K 4 kW Incoloy heater element with hardware Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K$4099 Hydro-Quip 12-0100F-K 5.5kW titanium M7 heater element Hydro-Quip 5.5kW Titanium M7 Heater Element, 12-0100F-K$5299 Hydroquip 12-0102F-K 4kW titanium M7 heater element Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K$5499 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Hydroquip 12-0100-K 5.5kW RHS flow through heater element with hardware Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K$3899 HydroQuip 34-0178 1 amp pressure switch HydroQuip 1 Amp Pressure Switch, 34-0178$4599
Hydroquip 60-0015 2 inch ridged rubber union gasket Hydroquip 2" Ridged Gasket, 60-0015$799 Hydro-Quip BHS-55-3W BCS-55 series baptismal equipment system with 5.5kW heater, 240V Hydro-Quip BCS-55 Series Baptismal Equipment, 5.5kW Heater, 240V, BHS-55-3W$34799 Hydro-Quip PBES6040 portable baptismal heater and pump package Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040$72799 Hydro-Quip BES6005 11kW baptismal heating and control system Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW$89699 Hydro-Quip PBES-6010 portable baptismal equipment with 1.0kW heater and pump Hydro-Quip PBES6010 Portable Baptismal Equipment, 1.0kW Heater and Pump, 120V$65399 Hydro-Quip BIS-60-240-GF Immersion Series baptistry heater, 6.0 kW 240V Hydro-Quip Immersion Series Baptistry Heater, 6.0 kW 240V 30 Amp GFCI, BIS-60-240-GF$57499 Hydro-Quip BES-55 baptismal equipment pack with 5.5kW heater and pump Hydro-Quip BES-55 Series Baptismal Equipment, 5.5kW Heater and Pump, 120/208/240V$67199 Hydro-Quip BES6005T baptismal 11kW heating and control system with 7 day timer Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T$70999 HydroQuip BCS6000-U 5.5 kW baptistry heating control system HydroQuip 5.5 kW Baptistry Heating Control System, without Pump Option, BCS6000-U$53099

Questions and answers

What people ask about this product, answered by our pool techs.

What electrical service does it need?
120/240 volt, four wire, 60 Hz. Hydro-Quip lists the total amp draw for the BES6000 and BES6000T at 36A with a 50 amp circuit breaker.
How much space does it take?
Hydro-Quip lists the cabinet for the 5.5 kW models at 13 inches high by 27 inches wide by 15 inches deep, and gives the minimum space required as 14 inches high by 26 inches wide by 16 inches deep. Those two figures do not agree on width, so allow the larger dimension when you plan the alcove.
Is there a larger version?
Yes. The 11 kW models, the BES6005 and BES6005T, draw 56A on a 70 amp breaker and use a slightly wider cabinet at 13 inches high by 29 inches wide by 15 inches deep.
What is the difference between the BES6000 and the BES6000T?
Hydro-Quip lists both at the same 36A draw and the same 50 amp breaker, so they share the electrical requirement. Check the Hydro-Quip specification for the feature difference before ordering.
