Hydro-Quip BES6005T baptismal 11kW heating and control system with 7 day timerHydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T$70999

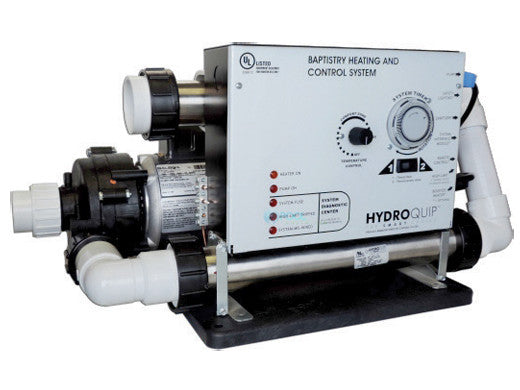

Hydro-Quip BES6005T baptismal 11kW heating and control system with 7 day timer
Shop all Hydro-Quip

Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T

Ask a questionMPN BES6005T
$70999
FREE Delivery
Typically ships within 2 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 11kW of heat The larger of the two output ratings in this Hydro-Quip baptismal range.
  • 7 day timer The T suffix on BES6005T is the built in seven day timer, so the tank can be brought up to temperature on a set schedule.
  • Heat and control in one The heater and the control system come as a single packaged unit.
  • Purpose built for baptistries Designed for baptismal tanks rather than adapted from spa equipment.
  • 56 amp draw Total amp draw is 56 amps, calling for a 70 amp circuit breaker.
  • Compact cabinet The 11kW cabinet measures 13 inches high by 29 inches wide by 15 inches deep.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T, SKU PSU-155303. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T
Hydro-Quip

Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T

$70999
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26199
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3200LCD digital control interface assembly for TriStar VS pumps Hayward Digital Control Interface Assembly, SPX3200LCD$44599 Hayward AquaPod 2.0 AQL2-POD2 wireless waterproof touchscreen remote Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2$55099 Pentair IntelliConnect EC-523317 control and monitoring system, front view Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317$59900 Web Price Hayward LKCUS1100 ColorLogic standalone light controller Hayward ColorLogic Light Controller, Standalone, LKCUS1100$37699 Jandy 8050 four function spa side remote switch, gray, with 150 ft cable Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050$50599 Hayward AQL-CHEM2 Sense and Dispense pH Dispense 120 V CO2 solenoid valve Hayward Sense and Dispense pH Dispense, 120V Solenoid Valve for CO2, AQL-CHEM2$44599 Pentair SunTouch 520859 single body control system power center Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859$70899 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,03699 Hayward AQL2-BASE-RF AQL2 wireless base station Hayward AQL2 Wireless Base Station, AQL2-BASE-RF$35799 Pentair 520548 EasyTouch Indoor Control Panel for 4 circuit systems Pentair EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548$57399
Pentair 618031 Color Sync Controller for color changing pool lights Pentair Color Sync Controller, 618031$38099 Hayward AQL2-SS-RF wireless spa side remote Hayward Wireless Spa Side Remote, AQL2-SS-RF$55399 Pentair 521886 iS4 spa-side remote in gray with 100 foot cord Pentair Genuine OEM iS4 Spa-side Remote, Gray, 100 ft., 521886$36499 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller$78699 Hayward GL-235 AquaSolar dual differential solar control Hayward AquaSolar Control, GL-235$39699 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$87399 Pentair 522045 IntelliCenter i10P upgrade kit for IntelliTouch and EasyTouch load centers Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10P, for LC/PC, 522045$1,04199 Pentair 522035 IntelliCenter white indoor control panel Pentair IntelliCenter White Indoor Control Panel, 522035$53199 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price

Product details

The Hydro-Quip BES6005T is a packaged heating and control system for baptismal tanks. It combines an 11kW heater with the control gear and a seven day timer in a single cabinet.

The timer is the point

A baptistry sits cold most of the week and needs to be warm on a schedule. The seven day timer lets the system be programmed to bring the tank up ahead of a service without anyone remembering to switch it on. The BES6005 is the same 11kW unit without the timer, so the T suffix is what to look for.

Electrical requirements

This is a substantial electrical load. The system draws 56 amps total and calls for a 70 amp circuit breaker on a 4 wire service at 60 Hz. The circuit should be run and terminated by a licensed electrician, and the supply confirmed before the equipment is ordered.

Space and mounting

The 11kW cabinet measures 13 inches high, 29 inches wide and 15 inches deep. Plan the location with enough clearance for the conduit run and for opening the cabinet later for service.

Specifications
Brand Hydro-Quip
Manufacturer part number BES6005T
Type Baptismal heating and control system
Heater output 11kW
Timer 7 day
Total amp draw 56A
Circuit breaker size 70
Electrical service 4 wire service, 60 Hz
Dimensions 13"H x 29"W x 15"D (11kW models)
Shipping weight 44.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hydro-Quip

Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbs Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K$19599 Hydroquip 34-0019-C pressure switch, model 4037P Hydroquip Pressure Switch, 4037P, 34-0019-C$2399 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hydroquip 12-0102-K 4 kW Incoloy heater element with hardware Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K$4099 Hydro-Quip 12-0100F-K 5.5kW titanium M7 heater element Hydro-Quip 5.5kW Titanium M7 Heater Element, 12-0100F-K$5299 Hydroquip 12-0102F-K 4kW titanium M7 heater element Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K$5499 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Hydroquip 12-0100-K 5.5kW RHS flow through heater element with hardware Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K$3899 HydroQuip 34-0178 1 amp pressure switch HydroQuip 1 Amp Pressure Switch, 34-0178$4599
Hydroquip 60-0015 2 inch ridged rubber union gasket Hydroquip 2" Ridged Gasket, 60-0015$799 Hydro-Quip BHS-55-3W BCS-55 series baptismal equipment system with 5.5kW heater, 240V Hydro-Quip BCS-55 Series Baptismal Equipment, 5.5kW Heater, 240V, BHS-55-3W$34799 Hydro-Quip BES6000 baptismal 5.5 kW heating and control system, 120/240V Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000$84399 Hydro-Quip PBES6040 portable baptismal heater and pump package Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040$72799 Hydro-Quip BES6005 11kW baptismal heating and control system Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW$89699 Hydro-Quip PBES-6010 portable baptismal equipment with 1.0kW heater and pump Hydro-Quip PBES6010 Portable Baptismal Equipment, 1.0kW Heater and Pump, 120V$65399 Hydro-Quip BIS-60-240-GF Immersion Series baptistry heater, 6.0 kW 240V Hydro-Quip Immersion Series Baptistry Heater, 6.0 kW 240V 30 Amp GFCI, BIS-60-240-GF$57499 Hydro-Quip BES-55 baptismal equipment pack with 5.5kW heater and pump Hydro-Quip BES-55 Series Baptismal Equipment, 5.5kW Heater and Pump, 120/208/240V$67199 HydroQuip BCS6000-U 5.5 kW baptistry heating control system HydroQuip 5.5 kW Baptistry Heating Control System, without Pump Option, BCS6000-U$53099

Questions and answers

What people ask about this product, answered by our pool techs.

What does the T on the end of the part number mean?
The seven day timer. BES6005 is the same 11kW system without the timer, BES6005T is the timer version.
What electrical supply does it need?
A 4 wire service at 60 Hz. Total amp draw is 56 amps, and the manufacturer calls for a 70 amp circuit breaker. Have the circuit run by a licensed electrician.
How big is the cabinet?
The 11kW models measure 13 inches high by 29 inches wide by 15 inches deep. Leave room around it for the electrical run and for service access.
Is this the 5.5kW or the 11kW model?
The 11kW. The BES6000 and BES6000T are the smaller units in the same family, drawing 36 amps on a 50 amp breaker.
