Hydro-Quip PBES6040 portable baptismal heater and pump packageHydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040$72799

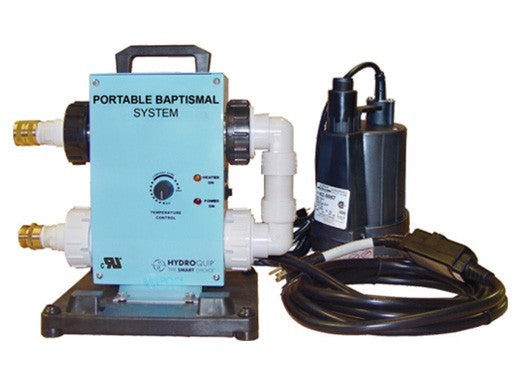

Hydro-Quip PBES6040 portable baptismal heater and pump package
Shop all Hydro-Quip

Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040

Ask a questionMPN PBES6040
$72799
FREE Delivery
Typically ships within 2 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 4.0 kW heater Sized to bring a portable baptistry up to temperature ahead of a service.
  • Pump included A base mounted pump ships with the unit, listed as 1/6 HP at 120V.
  • 20 amp total draw The package draws 20 amps in total and is specified for a 30 amp circuit breaker.
  • Single phase Single phase power, rated for 50 or 60 Hz supply.
  • Compact cabinet 12.5 inches high by 13 inches wide by 9 inches deep, so it stores between uses.
  • Installation kit supplied The kit is part of the package, not a separate order.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040, SKU PSU-176929. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040
Hydro-Quip

Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040

$72799
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799 Elm 4'x12'x2" ELM Solar Panel | 16604-12 Elm 4' x 12' x 2" ELM Solar Panel | 16604-12$48099 Elm 4'x10'x2" ELM Solar Panel | 16604-10 Elm 4' x 10' x 2" ELM Solar Panel | 16604-10$45399 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS$48499 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Elm 4'x8'x2" ELM Solar Panel | 16604-08 Elm 4' x 8' x 2" ELM Solar Panel | 16604-08$29299 Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999
Balboa G7417 remote FloThru heater, VS100, 4.0 kW Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16699 Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$1,99900 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100 Web Price Coates Electric Heater 18kW Single Phase 240V | 12418CE Coates Electric Heater 18kW Single Phase 240V | 12418CE$2,40199

Product details

The Hydro-Quip PBES6040 is a portable baptismal package that puts the heater and the circulation pump in one cabinet. It is rated at 4.0 kW on a 240 volt supply and ships with an installation kit.

Power and circuit

The package is single phase and works on 50 or 60 Hz. Total draw is listed at 20 amps with a 30 amp circuit breaker specified, so the circuit needs planning before the first service rather than on the day. The pump that ships with it is listed at 1/6 HP, 120V, base mounted.

Portable by design

At 12.5 inches high, 13 inches wide and 9 inches deep the cabinet is small enough to move and store between uses, which is the point of a portable baptistry setup. Heat is applied when the tank is filled and the equipment goes back into storage afterward.

Specifications
Brand Hydro-Quip
Manufacturer part number PBES6040
Type Portable baptismal heater and pump
Heater output 4.0 kW
System voltage 240V
Pump 1/6 HP, 120V, base mounted
Phase Single phase, 50/60 Hz
Total amp draw 20A
Circuit breaker size 30
Dimensions 12.5 in H x 13 in W x 9 in D
Included Installation kit
Shipping weight 23.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hydro-Quip

Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbs Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K$19599 Hydroquip 34-0019-C pressure switch, model 4037P Hydroquip Pressure Switch, 4037P, 34-0019-C$2399 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hydroquip 12-0102-K 4 kW Incoloy heater element with hardware Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K$4099 Hydro-Quip 12-0100F-K 5.5kW titanium M7 heater element Hydro-Quip 5.5kW Titanium M7 Heater Element, 12-0100F-K$5299 Hydroquip 12-0102F-K 4kW titanium M7 heater element Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K$5499 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Hydroquip 12-0100-K 5.5kW RHS flow through heater element with hardware Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K$3899 HydroQuip 34-0178 1 amp pressure switch HydroQuip 1 Amp Pressure Switch, 34-0178$4599
Hydroquip 60-0015 2 inch ridged rubber union gasket Hydroquip 2" Ridged Gasket, 60-0015$799 Hydro-Quip BHS-55-3W BCS-55 series baptismal equipment system with 5.5kW heater, 240V Hydro-Quip BCS-55 Series Baptismal Equipment, 5.5kW Heater, 240V, BHS-55-3W$34799 Hydro-Quip BES6000 baptismal 5.5 kW heating and control system, 120/240V Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000$84399 Hydro-Quip BES6005 11kW baptismal heating and control system Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW$89699 Hydro-Quip PBES-6010 portable baptismal equipment with 1.0kW heater and pump Hydro-Quip PBES6010 Portable Baptismal Equipment, 1.0kW Heater and Pump, 120V$65399 Hydro-Quip BIS-60-240-GF Immersion Series baptistry heater, 6.0 kW 240V Hydro-Quip Immersion Series Baptistry Heater, 6.0 kW 240V 30 Amp GFCI, BIS-60-240-GF$57499 Hydro-Quip BES-55 baptismal equipment pack with 5.5kW heater and pump Hydro-Quip BES-55 Series Baptismal Equipment, 5.5kW Heater and Pump, 120/208/240V$67199 Hydro-Quip BES6005T baptismal 11kW heating and control system with 7 day timer Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T$70999 HydroQuip BCS6000-U 5.5 kW baptistry heating control system HydroQuip 5.5 kW Baptistry Heating Control System, without Pump Option, BCS6000-U$53099

Questions and answers

What people ask about this product, answered by our pool techs.

What power does it need?
The package is listed at 240 volts, single phase, with a total draw of 20 amps on a 30 amp circuit breaker.
Is a pump part of the package?
Yes. A base mounted pump is included, listed as 1/6 HP at 120V, along with an installation kit.
How large is the unit?
12.5 inches high, 13 inches wide and 9 inches deep.
What is the heater rated at?
4.0 kW.
