Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786 In stock$2,49900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786
$2,49900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 150,000 BTU Raypak rates the 156A well above typical above ground heaters, and more BTU means a quicker heat up.
- Propane fired This is the liquid propane version of the 156A, part number 014786.
- Digital controls A digital control panel with electronic ignition, so there is no standing pilot to light.
- Copper tubing Copper heat exchanger tubing for fast heat transfer.
- Sea level to 1999 ft This model is rated for installations from 0 to 1999 ft above sea level.
- Pools and spas Suited to larger above ground pools, spas and inground pools, opening the season earlier and closing it later.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786
$2,49900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,17900
Raypak Heater, 240K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R266A-EP-X, 014951$3,63300
Web Price
Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,39100
Web Price
Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,29100
Web Price
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899
Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599
Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226$3,63200
Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$2,83800
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100
Web Price
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999
Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$1,99900
Web Price
Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$2,99900
Web Price
Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199
Raypak P-R206A-MP-C #57 Propane Gas Heater, 199.5K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009200$3,33300
Web Price
Pentair MasterTemp Propane Gas Heater 250,000 BTU, EC-462027$3,73900

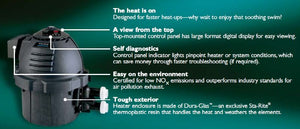

Pentair Sta-Rite Max-E-Therm Low NOx Pool and Spa Heater | SR200LP$3,72499
Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999
Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799
Lochinvar EnergyRite ASME Commercial Grade Heater, 400K BTU Natural Gas, Cupro Nickel, ERN402-A-8009, 100143241$3,59099
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

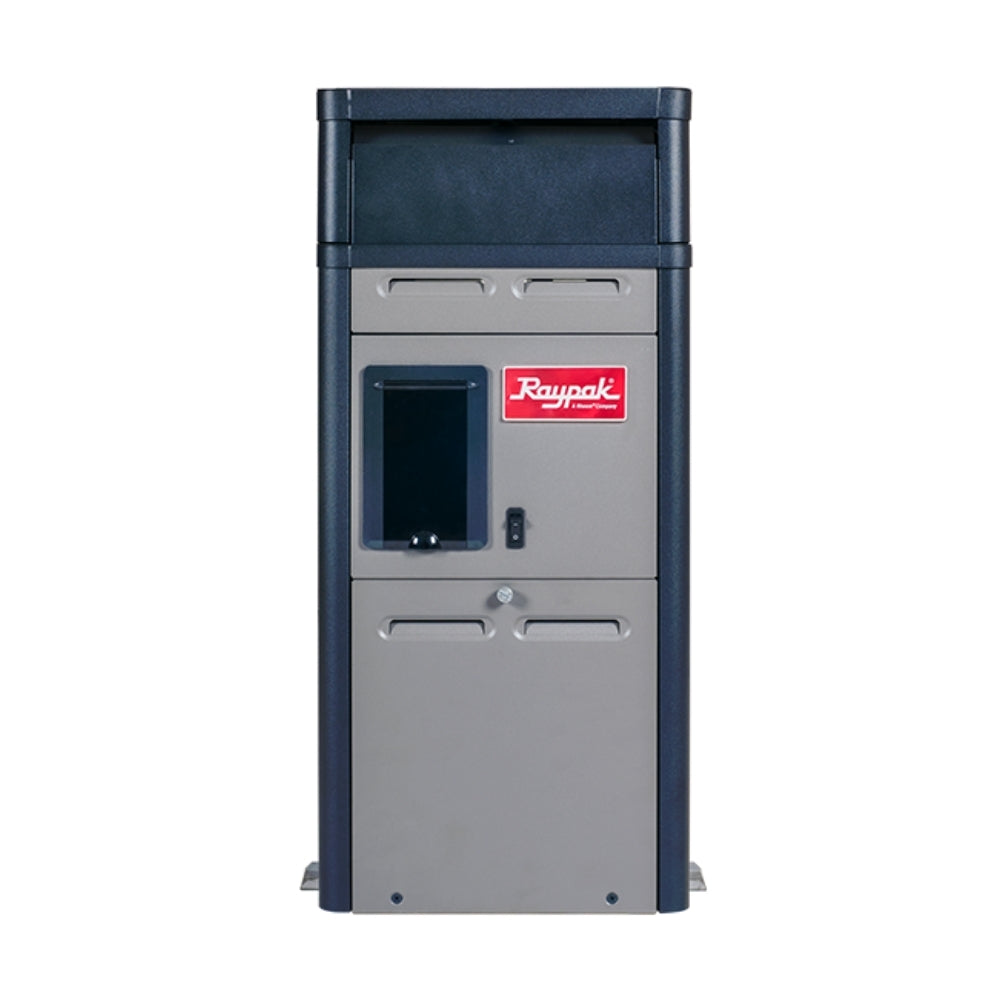

The Raypak 156A, model P-D156A, is a 150,000 BTU propane gas heater built for above ground pools and spas, with digital controls and electronic ignition. Part number 014786 is the liquid propane version rated for installations from sea level to 1999 ft.
More heat, faster
Raypak rates the 156A well above the output of typical above ground heaters, and the extra capacity shows up as a shorter heat up time. That makes it a fit for larger above ground pools, for spas that need to come to temperature quickly, and Raypak also lists it for inground pools. A heater this size lets you open the pool earlier in spring and keep swimming later into autumn.
Digital and self lighting
Temperature is set on a digital control panel and the burner lights electronically on demand, so there is no standing pilot to relight after a windy day. The heat exchanger uses copper tubing for quick heat transfer to the water.
Before you order
Confirm you have propane, not natural gas, and that your site is below 2000 ft elevation. The heater ships by freight.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 014786 |
| Model | P-D156A (156A) |
| UPC | 840891035879 |
| Type | Above ground pool and spa heater |
| Fuel | Propane |
| Heat input | 150,000 BTU/hr |
| Heat output | 123,000 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Controls | Digital thermostat |
| Ignition | Electronic, spark lit pilot |
| Heat exchanger | Copper fin tube |
| Electrical | 120 V, 3 prong cord included |
| Water connections | 1-1/2 in or 2 in NPT |
| Gas connection | 1/2 in NPT |
| Elevation | 0 to 1,999 ft |
| Shipping weight | 100 lb |
| Warranty | 2 years, by Raypak |
| Ships | Freight |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 014786 natural gas or propane?
Propane, for 0 to 1,999 ft. Raypak's catalog lists the 156A under separate part numbers by fuel and by elevation.
Does the Raypak 156A 014786 plug in?
Yes. Raypak fits it with a 120 V power cord and a three prong plug.
Can the Raypak 156A 014786 heat an inground pool?
Raypak sells it as an above ground pool and spa heater, at 150,000 BTU/hr input. Our pool heater size calculator will say whether that covers your pool.
Does the Raypak 014786 have a standing pilot?
No. The ignition is electronic: a spark lights the pilot when the thermostat calls for heat.
What warranty does Raypak give the 156A 014786?
Two years, by Raypak's catalog.
Where is the manual for the Raypak 156A 014786?
Under Downloads on this page, as Installation and Operation. It is Raypak's manual for the 106A and 156A above ground heaters.
