Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heaterRaypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038 In stock$3,49300
Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater
Shop all Raypak

Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038

Ask a questionMPN 018038
$3,49300
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 264,000 BTU sized for large pools and pool and spa combinations.
  • Propane, low NOx clean burning propane model with intermittent ignition (IID).
  • WiFi built in monitor and control the heater remotely.
  • Copper tubing, polymer headers copper heat exchanger for heat transfer, polymer headers for corrosion resistance.
  • ProTek Shield added corrosion protection now included on the AVIA.
  • 0 to 4,500 ft rated for installations up to 4,500 ft elevation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038, SKU RUD-15-0004. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038
Raypak

AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038

$3,49300
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900 Raypak AVIA P-R404A-EP-N 399,000 BTU propane gas pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300 Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400 Raypak P-R266A-EP-X 266K BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak Heater, 240K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R266A-EP-X, 014951$3,74200 Raypak 009227 Digital 399K BTU propane pool and spa heater, model P-R406A-EP-C Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,42600 Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,39000 Raypak AVIA P-R404A-EP-C 399,000 BTU propane low NOx pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,42600 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,25699 Raypak 009226 Digital 333,000 BTU propane gas pool and spa heater, model P-R336A-EP-C Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226$3,84100
Raypak 009224 P-R206A-EP-C 200K BTU digital propane gas pool and spa heater Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$3,02300 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800 Raypak P-R336A-EP-X 333,000 BTU propane pool and spa heater with cupro-nickel heat exchanger Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952$4,21000 Hayward Universal H-Series W3H250FDP pool heater, front view Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900 Web Price Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,08299 Raypak 019141 E3T ELS-R-0018-3-TI electric pool and spa heater, 18KW 208V 3-phase Raypak E3T ELS-R-0018-3-TI Electric Pool and Spa Heater, 3-Phase, 18KW, 208V, 019141$2,12000 Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$2,11900 Raypak B-R266A-EP-C 266K BTU propane gas ASME pool heater with bronze header Raypak 266K BTU Propane Gas ASME Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, B-R266A-EP-C, 017384$4,04800 Raypak E3T 27kW digital electric pool heater, part 100-10000666 Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$3,14900 Raypak P-R206A-MP-C propane gas pool heater, 199.5K BTU Raypak P-R206A-MP-C #57 Propane Gas Heater, 199.5K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009200$3,33300 Web Price

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

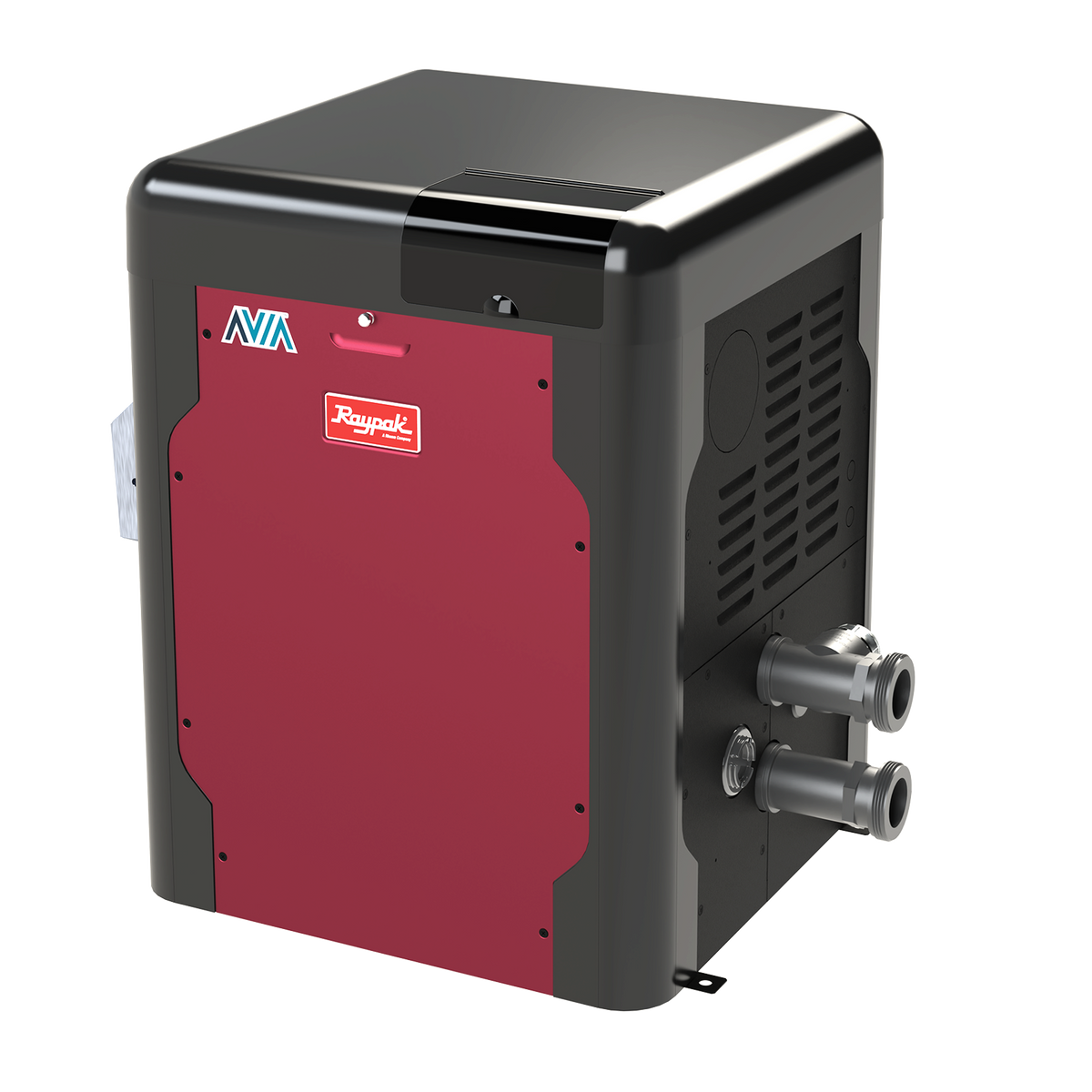

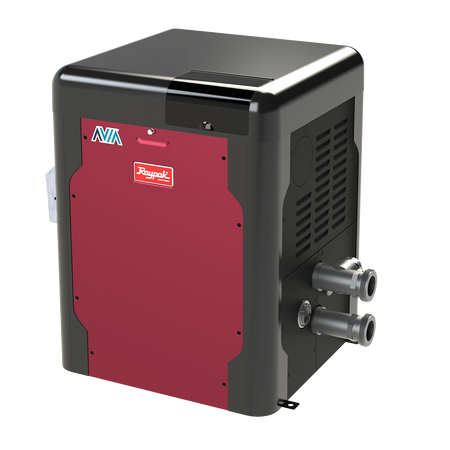

The Raypak AVIA P-R264A-EP-C is a 264,000 BTU propane gas pool and spa heater with intermittent electronic ignition and a low NOx burner. It is the copper tubing model, rated for installations from sea level to 4,500 ft.

Built to resist corrosion

The heat exchanger uses copper tubing for fast heat transfer, paired with polymer headers that do not corrode the way metal headers can. Raypak now includes its ProTek Shield on the AVIA for additional protection.

Connected control

WiFi is built in, so the heater can be monitored and adjusted remotely rather than only at the unit.

Sizing and shipping

At 264,000 BTU this heater suits large pools and pool and spa combinations. It ships by freight.

Specifications
Brand Raypak
Manufacturer part number 018038
Model P-R264A-EP-C
UPC 840891047285
Type Pool and spa heater
Fuel Propane
Heat input 264,000 BTU/hr
Heat output 221,760 BTU/hr at 84 percent
Thermal efficiency 84 percent, by Raypak
Ignition Direct spark
Heat exchanger Copper fin tube
Headers Polymer
Emissions Low NOx
Elevation 0 to 4,500 ft
Water connections 2 in buttress
Gas connection 3/4 in NPT
Connectivity Wi-Fi, Raymote app
Unit weight 135 lb
Shipping weight 155 lb
Warranty 3 years full, by Raypak, on residential installations
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77499 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300

Questions and answers

What people ask about this product, answered by our pool techs.

Is the Raypak AVIA P-R264A-EP-C, 018038, natural gas or propane?
Propane. Raypak builds the AVIA for one fuel and sells the other as a separate model.
Does the Raypak AVIA 018038 have Wi-Fi built in?
No. Wi-Fi is built in, and Raypak's Raymote app, which is free, controls and monitors the heater once it is on the home network.
What elevation is the Raypak AVIA 018038 rated for?
Raypak's catalog lists the propane AVIA for 0 to 4,500 ft, and sells a high elevation kit, 018762F, for propane above that.
What is the heat exchanger on the AVIA P-R264A-EP-C?
Copper fin tube, which is what the C at the end of the model number means. Raypak's HD models, ending in N, have its nickel coated NiTek tubing. Raypak rates both at 84 percent.
What warranty does Raypak give the AVIA 018038?
Three years on the whole heater, which Raypak's catalog gives for all residential replacements and new builds.
Where is the manual for the Raypak AVIA 018038?
Under Downloads on this page. It is Raypak's AVIA Installation and Operation Manual for models 264 and 404, part number 100-10000111.
Ask your own question
