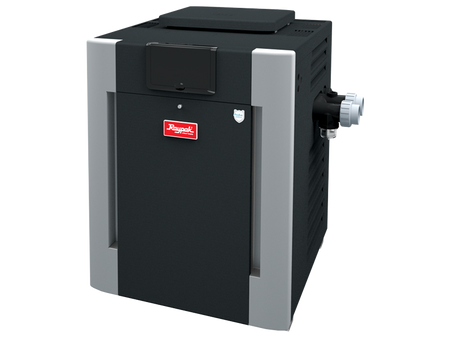

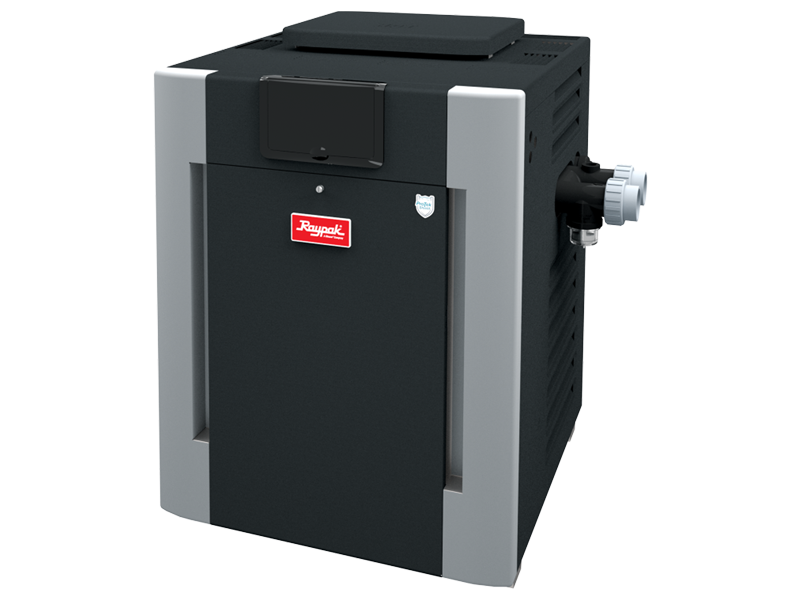

Raypak 009226 Digital 333,000 BTU propane gas pool and spa heater, model P-R336A-EP-CRaypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226 In stock$3,63200
Raypak 009226 Digital 333,000 BTU propane gas pool and spa heater, model P-R336A-EP-C
Shop all Raypak

Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226

Ask a questionMPN 009226
$3,63200
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 333,000 BTU Output for large in-ground pools and pool and spa combinations.
  • Propane gas Built for LP fuel, model P-R336A-EP-C, part number 009226.
  • Digital control Electronic ignition with digital controls, no standing pilot to light.
  • Copper heat exchanger Copper fin tube exchanger for fast heat transfer into the water.
  • Weather ready Galvanized metal cabinet resists corrosion and stands up to outdoor installation year round.
  • Sea level to 2,000 ft Rated for installations from 0 to 2,000 ft elevation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226, SKU RAY-15-9226. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226
Raypak

333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226

$3,63200
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900 Web Price Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899 Raypak AVIA P-R404A-EP-N 399,000 BTU propane gas pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,78000 Web Price Pentair MasterTemp 400,000 BTU propane gas pool heater, model EC-462029 Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900 Web Price Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,17900 Raypak P-R406A-EP-X 399K BTU propane pool and spa heater with cupro-nickel heat exchanger, front view Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,54000 Web Price Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,39100 Web Price Raypak 009227 Digital 399K BTU propane pool and spa heater, model P-R406A-EP-C Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,20000 Web Price Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,29100 Web Price
Raypak AVIA P-R404A-EP-C 399,000 BTU propane low NOx pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,20000 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799 Raypak 009224 P-R206A-EP-C 200K BTU digital propane gas pool and spa heater Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$2,83800 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100 Web Price Hayward Universal H-Series W3H250FDP pool heater, front view Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900 Web Price Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$1,99900 Web Price Pentair MasterTemp 460771 250K natural gas ASME pool heater Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak P-R336A-EP-C is a 333,000 BTU propane gas heater for in-ground pools and spas, part of the Raypak Digital line. Electronic ignition and digital controls replace the standing pilot and mechanical thermostat of older heaters, so it lights on demand and holds the temperature you set.

Built for the outdoors

The cabinet is galvanized metal that resists corrosion, and the low profile design sits neatly on the equipment pad. Inside, a copper fin tube heat exchanger moves heat quickly into the water passing through it. Raypak builds these to run year round in the weather without a shelter.

Before you order

This is the propane model, rated for installations between sea level and 2,000 ft. Make sure your gas supply, line sizing and elevation match. It ships freight on a pallet, and a licensed gas installer should handle the connection.

Specifications
Brand Raypak
Manufacturer part number 009226
Model P-R336A-EP-C
UPC 840891012856
Type Pool and spa heater
Fuel Propane
Heat input 332,500 BTU/hr
Heat output 272,650 BTU/hr at 82 percent
Thermal efficiency 82 percent, by Raypak
Ignition Electronic, digital IID
Heat exchanger Copper fin tube
Headers Polymer
Elevation 0 to 2,000 ft
Electrical 120 or 240 VAC, single phase, 60 Hz
Amp draw 4 A at 120 V, 2 A at 240 V
Water connections 2 in
Gas connection 3/4 in NPT
Cabinet width 26 in
Shipping weight 230 lb, 19 more with the indoor draft hood
Warranty 2 years, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is Raypak 009226 natural gas or propane?
Propane. Raypak builds the 336A for one fuel, and sells the natural gas heater as a separate part number.
What elevation is Raypak 009226 rated for?
0 to 2,000 ft, by Raypak's catalog. Raypak sells the same heater jetted for three bands: #50 for 0 to 2,000 ft, #51 for 2,000 to 6,000 and #52 for 6,000 to 9,000, each under its own part number.
What do the messages on the Raypak 009226 display mean?
The display names the switch that opened. Water Sw Open is the water pressure switch, Hi Limit 1 or 2 a high limit, Rollout Sw Open the flame rollout switch, and Ignition Lockout a pilot or main burner that did not light in time. Our pool heater error code guide lists them all and what to check.
What power and connections does Raypak 009226 need?
120 or 240 VAC, single phase. Raypak's brochure gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the P-R336A-EP-C, 009226?
Two years, by Raypak's catalog.
Where is the manual for the Raypak P-R336A-EP-C 009226?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
Ask your own question
