Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heaterCoates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3 In stock$3,00999

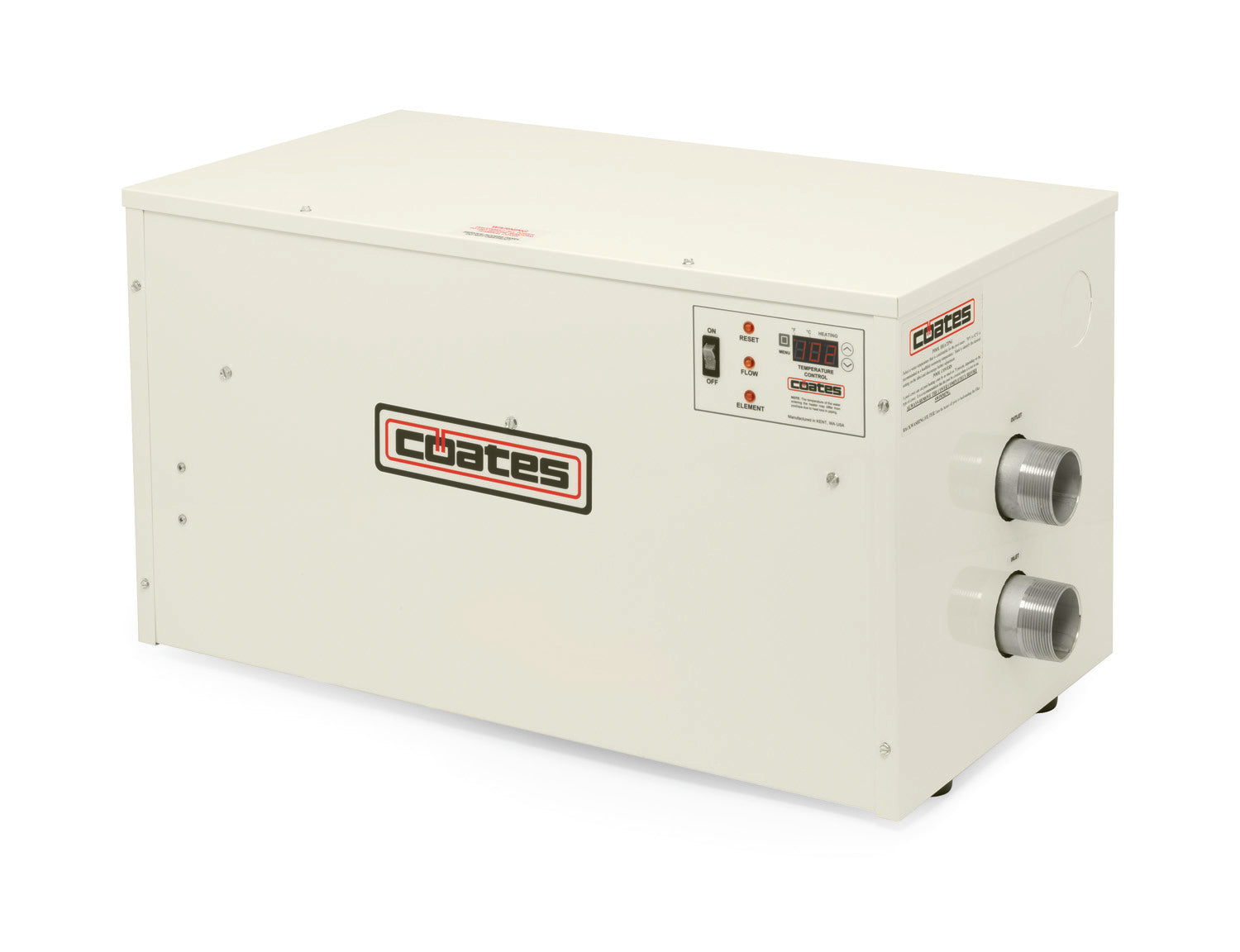

Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater
Shop all Coates Heater

Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3

Ask a questionMPN 34836PHS-3
$3,00999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 36 kW output the 36 kW model in the PHS series.
  • 480 V three phase wired for 480 V, 3 phase service.
  • Digital thermostat the 36 to 57 kW PHS heaters add a digital thermostat for finer control of water temperature.
  • Electric heating no gas supply or flue to run.
  • Coates built factory part 34836PHS-3.
  • Freight delivery ships by freight carrier.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3, SKU CHC-15-514. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3
Coates Heater

Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3

$3,00999
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Pentair MasterTemp 400 natural gas pool heater EC-462028 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900 Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900 Web Price Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,89000 Web Price
Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,29100 Web Price Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,17900 Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,63200 Web Price Raypak P-R266A-EP-X 266K BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak Heater, 240K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R266A-EP-X, 014951$3,63300 Web Price Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,39100 Web Price Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,17900 Web Price Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,29100 Web Price Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,49900 Web Price Raypak AVIA P-R404A-EP-C 399,000 BTU propane low NOx pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,20000 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899

Product details

The Coates 34836PHS-3 is a 36 kW electric pool heater from the PHS series, built for 480 V three phase service. Electric heat means no gas line, no combustion and no flue; the heater sits on the pad and draws from the panel.

Digital control

The 36 to 57 kW heaters in the PHS line carry the same features as the smaller 12 to 18 kW models and add a digital thermostat, which holds pool water temperature more precisely than a dial setting.

Before you order

Confirm your electrical service is 480 V, three phase, and that the panel has capacity for a 36 kW load. Installation is a job for a licensed electrician. The heater ships by freight, so plan for a delivery that needs someone present to receive it.

Specifications
Brand Coates
Manufacturer part number 34836PHS-3
Series PHS
Type Electric pool and spa heater
Power 36 kW
Heat output 122,832 BTU/hr, which is 36 kW x 3,412
Electrical 480 V, three phase, 44 A
Water connections 2 in male NPT
Dimensions 28 in long, 15 in wide, 15 in high
Unit weight 100 lb
Heating elements Incoloy
Tank Stainless steel
Controls Digital thermostat, manual reset high limit, flow switch
Flow rate 20 to 80 GPM
Listing UL, indoor or outdoor
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates Heater

Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199 Coates 20005061 threaded heating element 5.5kW 240V with gasket Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$6899 Coates 22003820 high temperature limit switch for Coates electric heaters Coates High Temperature Limit Switch, 22003820$9399 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799 Coates 20006009 heater element, 12 kW 240V Coates Heater Element 12 kW 240V, 20006009$32999 Coates 23000105 Q-12DS50 half inch pool heater flow switch Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$8799
Coates 32705010 split nut union in PVC for SHA and SHB heaters Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$1999 Coates 22002001 temperature control thermostat TD103-77 for CPH and PHS heaters Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$6499 Coates electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999 Coates 57kW three phase 480V electric pool and spa heater Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,86399 Coates electric pool and spa heater Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799 Coates 20006004 15kW 208V heater element with 4 bolt flange and gasket Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$32399

Questions and answers

What people ask about this product, answered by our pool techs.

What electrical supply does the Coates 34836PHS-3 need?
480 V, three phase, 44 A, by Coates's table for the 34836PHS-3. Have an electrician confirm the panel, breaker and conductors before ordering.
Does the Coates 34836PHS-3 need a gas line or a vent?
No. It is electric, so there is no gas piping, no vent and no combustion air to plan for. The installation work is plumbing and electrical.
Can the Coates 34836PHS-3 go on a salt water pool?
Coates builds a separate series, the PHS-CN, for pools on salt chlorine generators, with a copper nickel tank and titanium elements. This heater has a stainless steel tank and Incoloy elements.
What controls does the Coates 34836PHS-3 have?
A digital thermostat, a manual reset high limit and a flow switch, all built in. Coates gives the working flow range as 20 to 80 GPM.
Can the Coates 34836PHS-3 be installed outdoors?
Yes. It is UL listed for indoor or outdoor installation.
