Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH In stock$2,98799
Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH
$2,98799
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 30kW on 240V Single phase 240 volt supply, so confirm the service can carry the load before you order.
- Digital thermostat Coates includes a digital thermostat on the 24kW to 30kW heaters for closer control of water temperature.
- CPH Series Coates CPH Series electric heater, part number 12430CPH.
- No gas required Electric heat means no gas line, no flue and no combustion air, which suits indoor rooms and sites with no gas service.
- Single phase This is the single phase version, not a three phase heater.
- A step up in size Coates groups this with the 24kW to 30kW heaters, above the 12kW to 18kW models in the same series.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Coates Heater
Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH
$2,98799
Subtotal
Similar products
Other products people compare with this one.
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900
Web Price
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,89000
Web Price
Raypak 200K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,29100
Web Price
Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,17900
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,63200
Web Price
Raypak Heater, 266K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R266A-EP-X, 014951$3,63300
Web Price
Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,39100
Web Price
Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,17900
Web Price
Raypak 200K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,29100
Web Price
Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,49900
Web Price
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899
Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,20000
Web Price
Product details

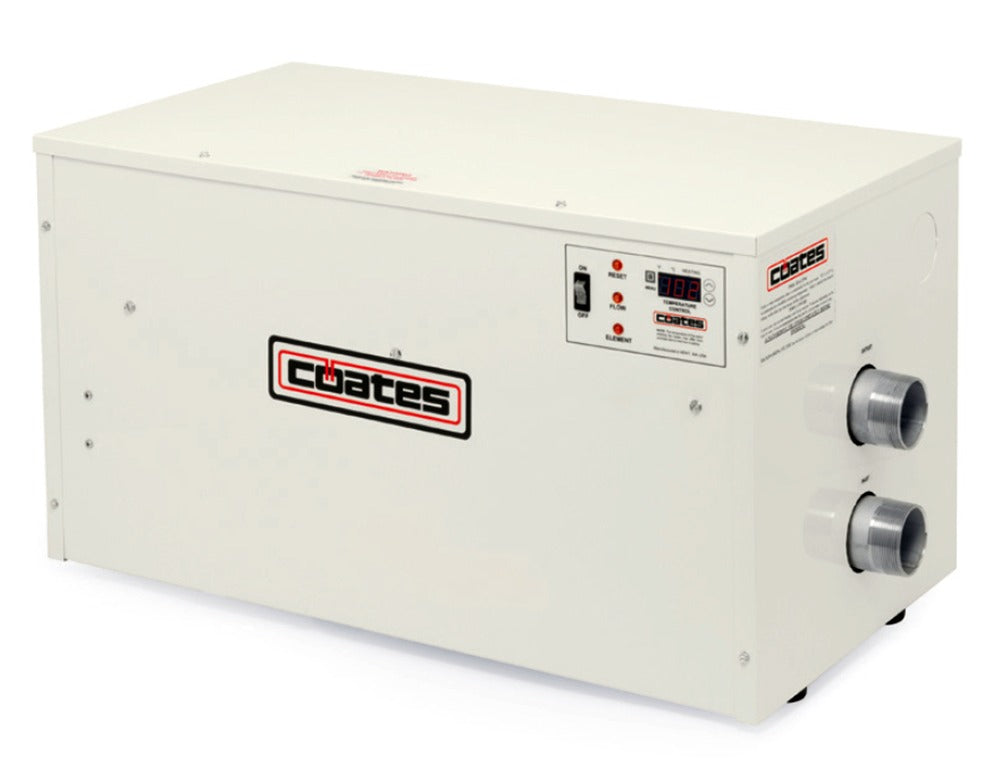

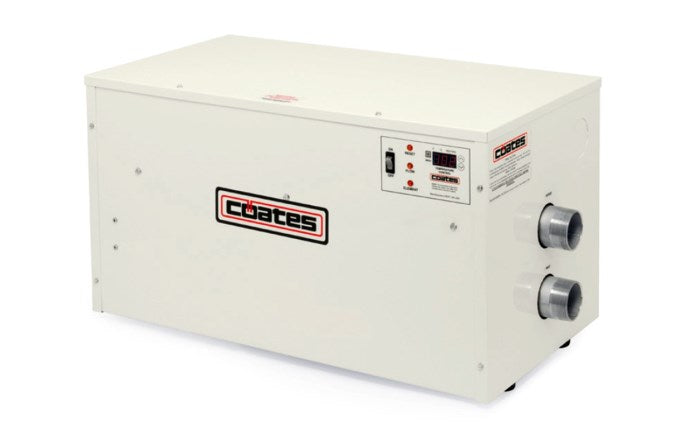

The Coates 12430CPH is a CPH Series electric pool and spa heater rated at 30kW on a single phase 240 volt supply. It heats with electric elements rather than a gas burner.
The digital thermostat
Coates carries the same core design across the series, but the larger heaters get a digital thermostat where the 12kW to 18kW models do not. That is the main practical difference in this size bracket: you set a number rather than a dial position, and the water sits closer to where you asked it to sit.
Electric instead of gas
An electric heater removes the whole gas side of an installation. No gas line to run, no flue to route, no combustion air to supply and nothing burning inside the cabinet. That makes it a straightforward answer for indoor pool rooms, sites with no gas service, and any job where venting a gas heater is the obstacle.
Plan the electrical first
The trade off is electrical demand. Thirty kilowatts is a serious load, so the panel, breaker and conductors have to be sized for it. Get an electrician to confirm the service before the heater is on site, and make sure the supply is single phase 240 volts, since the three phase heaters are different part numbers.
| Brand | Coates |
|---|---|
| Manufacturer part number | 12430CPH |
| Series | CPH Series |
| Type | Electric pool and spa heater |
| Power | 30 kW |
| Heat output | 102,360 BTU/hr, which is 30 kW x 3,412 |
| Electrical | 240 V, single phase, 125 A |
| Water connections | 1-1/2 in male NPT |
| Dimensions | 24 in long, 12 in wide, 13 in high |
| Unit weight | 68 lb |
| Heating elements | Incoloy |
| Tank | Stainless steel |
| Controls | Digital thermostat, manual reset high limit, flow switch |
| Flow rate | 20 to 80 GPM |
| Listing | UL, indoor or outdoor |
| Shipping weight | 66.15 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Coates Heater
Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999
Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899
Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299
Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199
Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$6899
Coates High Temperature Limit Switch, 22003820$9399
Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799
Coates Heater Element 12 kW 240V, 20006009$32999
Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$8199
Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$1999
Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$6499
Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999
Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,86399
Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$32399
Questions and answers
What people ask about this product, answered by our pool techs.
What electrical supply does the Coates 12430CPH need?
240 V, single phase, drawing 125 A, by Coates's table for its 30 kW CPH heater. Have an electrician confirm the panel, breaker and conductors before ordering.
Is the Coates 12430CPH a three phase heater?
No. It is the single phase, 240 V, 30 kW heater. Coates builds its three phase heaters under other model numbers.
Does the Coates 30 kW heater need a gas line?
No. It is electric, so there is no gas piping, no vent and no combustion air to plan for. The installation work is plumbing and electrical.
What controls does the Coates 30 kW CPH heater have?
A digital thermostat, a manual reset high limit and a flow switch, all built in. Coates gives the working flow range as 20 to 80 GPM.
Can the Coates 12430CPH be installed outdoors?
Yes. It is UL listed for indoor or outdoor installation.
