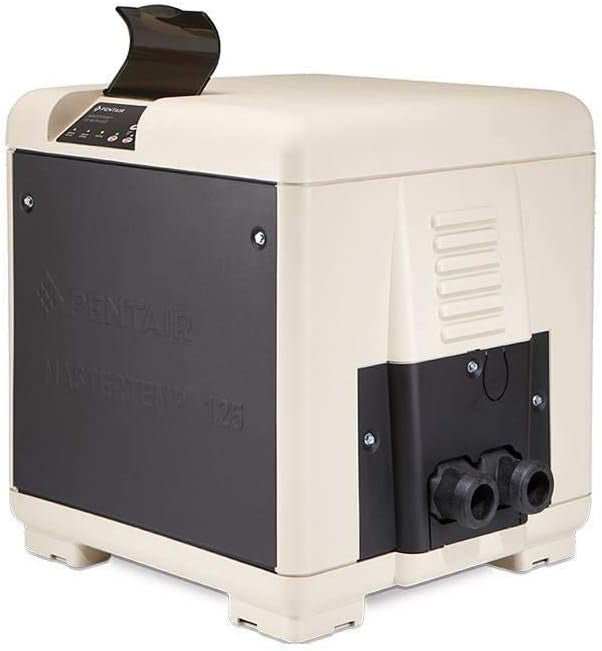

Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heaterPentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024 In stock$2,21299
Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater
Shop all Pentair

Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024

Ask a questionMPN EC-462024
$2,21299 $2,249.00 2% OFF
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 125,000 BTU Sized for smaller bodies of water up to 15,000 gallons.
  • 82 percent efficiency Compact footprint and quiet operation compared with larger heaters.
  • Rotating digital display Reads correctly in any installation orientation, with indicator lights for simple monitoring.
  • Built for outdoors Corrosion and UV resistant housing.
  • Safety built in Water pressure and stack flue sensors, automatic shut-off above factory limits, and a manual shut-off for service.
  • Low NOx Certified for low NOx emissions.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024, SKU PUR-15-2008. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024
Pentair

MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024

$2,21299
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Pentair MasterTemp 125 Manifold Kit, 474972
Pentair

MasterTemp 125 Manifold Kit, 474972

$28399
Pentair Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994
Pentair

Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994

$15199
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 009216 Digital 200K BTU natural gas pool heater, model P-R206A-EN-C, front view Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,83800 Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,29100 Web Price Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,17900 Web Price Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,49900 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Raypak 009220 P-R206A-EN-C #51 high altitude digital natural gas pool heater, 199.5K BTU Raypak High Altitude R206A Digital Natural Gas Heater, 199.5K BTU, P-R206A-EN-C #51, 009220$2,83800 Web Price
Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100 Web Price Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Hayward Universal H-Series W3H150FDN pool heater, front view Hayward Universal H-Series Natural Gas 150,000 BTU Low NOx Pool Heater, W3H150FDN$2,99900 Web Price Raypak E3T 27kW digital electric pool heater, part 100-10000666 Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$2,99900 Web Price Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199 Raypak E3T Electric Pool and Spa Heater, 11 kW, 37,543 BTU, 240V Single Phase, Titanium, ELS 0011-1-TiB, 100-10000663$1,15400 Coates electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999 Coates electric pool and spa heater Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799 Coates Electric Heater 18kW Three Phase 208V | 32018CE Coates Electric Heater 18kW Three Phase 208V | 32018CE$2,64399 Coates Electric Heater 18kW Single Phase 240V | 12418CE Coates Electric Heater 18kW Single Phase 240V | 12418CE$2,54499

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair MasterTemp 125 is a 125,000 BTU natural gas pool heater built for smaller bodies of water, up to 15,000 gallons. This is part number EC-462024, the natural gas model, supplied with its cord.

Compact and efficient

At 82 percent efficiency the MasterTemp 125 heats without the footprint or noise of a larger heater, so it fits on a crowded pad and does not intrude on time by the pool. The housing is corrosion and UV resistant for years outdoors.

Easy to run

The digital display rotates to suit any installation orientation, so it is readable whichever way the heater sits, and indicator lights make it simple to see what the system is doing at a glance.

Safety and emissions

A water pressure sensor and a stack flue sensor guard against overheating, the heater shuts itself off if temperature exceeds factory limits, and a manual shut-off is provided for service. The unit is certified for low NOx emissions.

Specifications
Brand Pentair
Manufacturer part number EC-462024
UPC 788379887308
Type Gas pool and spa heater
Fuel Natural gas
Heat input 125,000 BTU/hr
Heat output 102,500 BTU/hr at 82 percent
Thermal efficiency 82 percent, by Pentair
Ignition Hot surface (HSI), no standing pilot
Emissions Certified low NOx
Electrical 120 or 240 VAC
Amp draw About 5 A at 120 V, 2.5 A at 240 V; 15 A circuit
Water connections 1-1/2 in
Gas connection 3/4 in line, up to 50 ft from the source
Cabinet 31.5 in long, 21 in wide, 23 in high
Unit weight 80 lb
Pool size Spas, above ground pools and inground pools up to 15,000 gallons, by Pentair
Warranty 1 year, parts only, by Pentair for e-commerce (EC) models and online purchases
Housing Corrosion and UV resistant
Safety Water pressure sensor, stack flue sensor, automatic shut-off, manual shut-off
Shipping weight 130 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What size pool is the Pentair MasterTemp 125 for?
Pentair names spas, above ground pools and inground pools up to 15,000 gallons. For your own pool, our pool heater size calculator works out the BTU from its surface, the temperature rise you want and the wind.
What are the dimensions of the MasterTemp 125?
31.5 inches long, 21 inches wide and 23 inches high, and 80 lb, by Pentair's brochure. The water connections are 1-1/2 inch.
What warranty does Pentair give the MasterTemp 125, EC-462024?
One year, parts only. That is Pentair's warranty for its e-commerce (EC) models and for online purchases. The two years printed in Pentair's brochures is its standard warranty, which does not cover a heater bought online.
Where is the manual for the MasterTemp 125?
Under Downloads on this page, as the Owners Manual. It is Pentair's MasterTemp 125 Installation and User's Guide, part number 475000.
Is EC-462024 the natural gas or the propane MasterTemp 125?
Natural gas. Pentair builds each MasterTemp 125 for one fuel, and the propane version is a separate part number.
Does the MasterTemp 125 have a pilot light?
No. It lights with a hot surface igniter on each call for heat, so there is no standing pilot to keep lit or relight.
