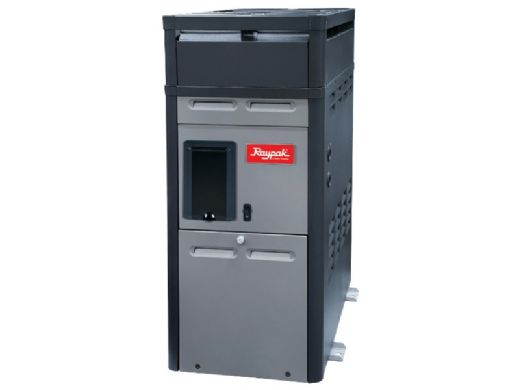

Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude modelRaypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785 In stock$2,64900
Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model
Shop all Raypak

Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785

Ask a questionMPN 014785
$2,64900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Above ground pool and spa Raypak sizes the 156A for above ground pools and spas rather than large inground bodies of water.
  • 150,000 BTU Natural gas input of 150K BTU.
  • High altitude version Configured for installation between 5,000 and 9,999 ft, where standard sea level heaters are not correct.
  • Digital controls A digital control panel rather than a mechanical thermostat.
  • Electronic ignition No standing pilot to relight at the start of the season.
  • Model family The listing covers Raypak catalog numbers P-M156A-EN-C 014803, P-D156A-EN-C 014821 and P-R156A-EN-C 014785.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785, SKU PSU-144229. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785
Raypak

156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785

$2,64900
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 009216 Digital 200K BTU natural gas pool heater, model P-R206A-EN-C, front view Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$3,02300 Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,39000 Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,84100 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,37400 Raypak 009193 P-R266A-MN-C 266,000 BTU natural gas pool heater Raypak P-R266A-MN-C #50 Natural Gas Heater, 266K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009193$3,81100 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,25699
Raypak 014939 P-R266A-EN-X natural gas pool heater with cupro-nickel heat exchanger Raypak P-R266A-EN-X Natural Gas Pool Heater, 240K BTU, Cupro-Nickel, 0 to 2000 Ft Elevation, 014939$3,74200 Raypak 009220 P-R206A-EN-C #51 high altitude digital natural gas pool heater, 199.5K BTU Raypak High Altitude R206A Digital Natural Gas Heater, 199.5K BTU, P-R206A-EN-C #51, 009220$3,02300 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800 Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,08299 Hayward Universal H-Series W3H150FDN pool heater, front view Hayward Universal H-Series Natural Gas 150,000 BTU Low NOx Pool Heater, W3H150FDN$2,99900 Web Price Raypak 019141 E3T ELS-R-0018-3-TI electric pool and spa heater, 18KW 208V 3-phase Raypak E3T ELS-R-0018-3-TI Electric Pool and Spa Heater, 3-Phase, 18KW, 208V, 019141$2,12000 Pentair 460730 MasterTemp 200K BTU natural gas pool heater Pentair MasterTemp Natural Gas Heater 200K BTU, IID Low NOx, 460730$3,67399 Raypak E3T 27kW digital electric pool heater, part 100-10000666 Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$3,14900 Pentair MasterTemp 460806 250,000 BTU Low NOx natural gas pool heater Pentair MasterTemp Low NOx Pool Heater, 250,000 BTU Natural Gas, Electronic Ignition, HD Cupro-Nickel, 460806$3,72099 Raypak B-R206A-EN-C 200K BTU natural gas ASME commercial pool heater Raypak B-R206A-EN-C 200K BTU Natural Gas ASME Commercial Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, 017371$3,68000

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak 156A is an above ground pool and spa heater with a 150,000 BTU natural gas input. This listing is the high altitude configuration, built for installations from 5,000 to 9,999 ft.

Why altitude matters

Air is thinner at elevation, and a gas heater set up for sea level does not burn correctly there. Raypak builds a separate high altitude version for that reason. Ordering the wrong one means a heater that will not run properly, so confirm your site elevation before choosing.

Controls and ignition

The 156A uses digital controls rather than a mechanical thermostat, and electronic ignition instead of a standing pilot, so there is no pilot flame to relight when the season starts.

Model numbers and shipping

Raypak lists this heater under catalog numbers P-M156A-EN-C 014803, P-D156A-EN-C 014821 and P-R156A-EN-C 014785. The heater ships by freight.

Specifications
Brand Raypak
Manufacturer part number 014785
Model 156A
UPC 840891045762
Type Above ground pool and spa heater
Fuel Natural gas
Heat input 150,000 BTU/hr
Heat output 123,000 BTU/hr at 82 percent
Thermal efficiency 82 percent, by Raypak
Controls Digital thermostat
Ignition Electronic, spark lit pilot
Heat exchanger Copper fin tube
Electrical 120 V, 3 prong cord included
Water connections 1-1/2 in or 2 in NPT
Gas connection 1/2 in NPT
Elevation 5,000 to 9,999 ft
Shipping weight 100 lb
Warranty 2 years, by Raypak
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77599 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300

Questions and answers

What people ask about this product, answered by our pool techs.

Is Raypak 014785 natural gas or propane?
Natural gas, for 5,000 to 9,999 ft. Raypak's catalog lists the 156A under separate part numbers by fuel and by elevation.
Does the Raypak 156A 014785 plug in?
Yes. Raypak fits it with a 120 V power cord and a three prong plug.
Can the Raypak 156A 014785 heat an inground pool?
Raypak sells it as an above ground pool and spa heater, at 150,000 BTU/hr input. Our pool heater size calculator will say whether that covers your pool.
Does the Raypak 014785 have a standing pilot?
No. The ignition is electronic: a spark lights the pilot when the thermostat calls for heat.
What warranty does Raypak give the 156A 014785?
Two years, by Raypak's catalog.
Where is the manual for the Raypak 156A 014785?
Under Downloads on this page, as Installation and Operation. It is Raypak's manual for the 106A and 156A above ground heaters.
