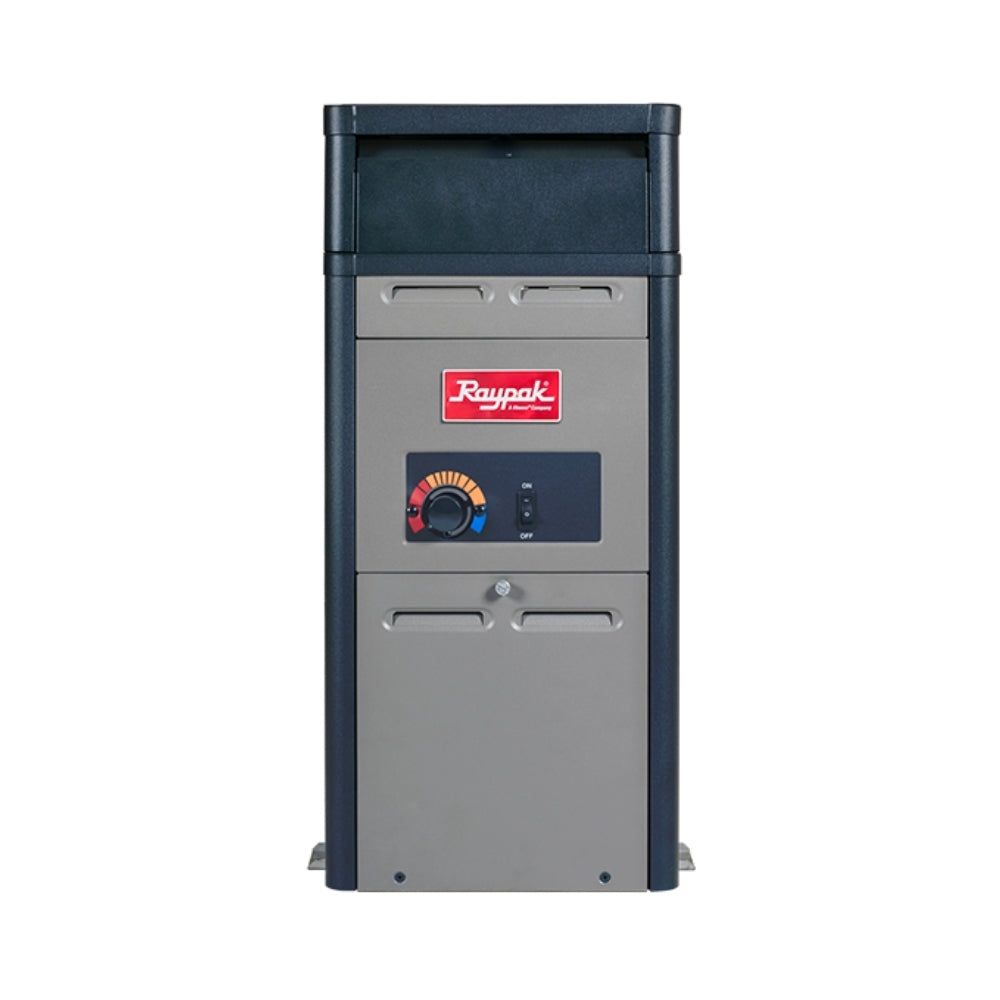

Raypak 014779 106A analog natural gas above ground pool heaterRaypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779 In stock$2,11900
Raypak 014779 106A analog natural gas above ground pool heater
Shop all Raypak

Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779

Ask a questionMPN 014779
$2,11900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Made for above ground pools The smallest Raypak pool and spa heater, sized for above ground pools and spas.
  • 105,000 BTU natural gas Extends the swim season at both ends.
  • Plugs in 120V NEMA cord, indoor or outdoor installation.
  • Analog thermostat Simple analog temperature control.
  • 2 in. socket inlet 2 in. SKT inlet with automatic bypass.
  • 0 to 4,999 ft Rated from sea level to 4,999 ft elevation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779, SKU RAY-15-9706. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779
Raypak

Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779

$2,11900
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 009216 Digital 200K BTU natural gas pool heater, model P-R206A-EN-C, front view Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$3,02300 Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,64900 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,25699 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800 Raypak 019141 E3T ELS-R-0018-3-TI electric pool and spa heater, 18KW 208V 3-phase Raypak E3T ELS-R-0018-3-TI Electric Pool and Spa Heater, 3-Phase, 18KW, 208V, 019141$2,12000 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$93399
Raypak E3T 27kW digital electric pool heater, part 100-10000666 Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$3,14900 Raypak E3T Electric Pool and Spa Heater, 11 kW, 37,543 BTU, 240V Single Phase, Titanium, ELS 0011-1-TiB, 100-10000663$1,21200 Coates Electric Heater 18kW Single Phase 240V | 12418CE Coates CE Series 18 kW Single Phase 240V Electric Pool and Spa Heater, 12418CE$2,62099 Raypak E3T ELS-R-0030-3-TI three phase electric pool and spa heater Raypak E3T Three Phase Electric Commercial Pool and Spa Heater, 30 kW, 102,364 BTU, 208V, Titanium, ELS-R-0030-3-TI, 019145$2,75200 Raypak E3T ELS-D-0005-1-Ti 5.5kW 240V electric pool and spa heater Raypak E3T 5.5kW 240V Electric Heater ELS-D-0005-1-Ti, 017121$1,09000 Coates Electric Heater 18kW Three Phase 208V | 32018CE Coates CE Series 18 kW Three Phase 208V Electric Pool and Spa Heater, 32018CE$2,72099 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Coates electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,97399 Hayward Universal H-Series W3H150FDN pool heater, front view Hayward Universal H-Series Natural Gas 150,000 BTU Low NOx Pool Heater, W3H150FDN$2,99900 Web Price Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,37400

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Product details

The Raypak 106A is the smallest heater in the Raypak pool and spa line, built for above ground pools and spas. This is the natural gas version with an analog thermostat, model P-R106A-AN-C, part number 014779, rated for 105,000 BTU.

Simple to install

It comes with a 120V NEMA cord, so it plugs into a standard outlet rather than needing a hardwired circuit, and it is approved for indoor or outdoor installation. The water connection is a 2 in. socket inlet with an automatic bypass.

Same build as the big ones

Small does not mean light duty. The 106A is built to the same standards as the rest of the Raypak range, and it does the same job: open the pool earlier, close it later and keep the spa ready.

Before you order

Rated for 0 to 4,999 ft elevation. Natural gas only. Heaters ship by freight.

Specifications
Brand Raypak
Manufacturer part number 014779
Model P-R106A-AN-C
UPC 840891034223
Type Above ground pool and spa heater
Fuel Natural gas
Heat input 105,000 BTU/hr
Heat output 86,100 BTU/hr at 82 percent
Thermal efficiency 82 percent, by Raypak
Controls Analog thermostat
Ignition Electronic, spark lit pilot
Heat exchanger Copper fin tube
Electrical 120 V, 3 prong cord included
Water connections 1-1/2 in or 2 in NPT
Gas connection 1/2 in NPT
Elevation 0 to 4,999 ft
Warranty 2 years, by Raypak
Shipping weight 85 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400 Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099 Raypak 002003F genuine OEM propane and natural gas pilot Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77499 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300 Raypak 010059F copper tube bundle heat exchanger for 206A and 207A pool heaters Raypak Copper Tube Bundle R206A, R207A, 010059F$66399

Questions and answers

What people ask about this product, answered by our pool techs.

Is Raypak 014779 the natural gas or the propane 106A?
Natural gas, for 0 to 4,999 ft. Raypak's natural gas 106A for 5,000 to 9,999 ft is part number 014780, and the propane heaters are separate part numbers by elevation.
Does the Raypak 106A need to be hardwired?
No. Raypak fits it with a 120 V power cord and a three prong plug.
Can the Raypak 106A heat an inground pool?
Raypak sells it as an above ground pool and spa heater, at 105,000 BTU/hr input. Our pool heater size calculator will say whether that covers your pool.
Does the Raypak 106A have a pilot light?
Not one that stays lit. The ignition is electronic: a spark lights the pilot when the thermostat calls for heat.
What warranty does Raypak give the 106A?
Two years, by Raypak's catalog.
Where is the manual for the Raypak 106A?
Under Downloads on this page, as Installation and Operation. It is Raypak's manual for the 106A and 156A above ground heaters.
Ask your own question
