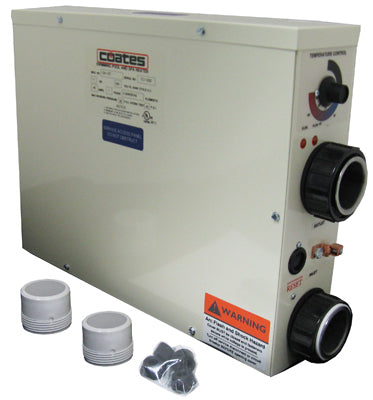

Coates 12411ST 11kW 240V single phase ST Series electric spa heaterCoates 11kW 240V Spa Heater, Single Phase, 12411ST In stock$96999
Coates 12411ST 11kW 240V single phase ST Series electric spa heater
Shop all Coates Heater

Coates 11kW 240V Spa Heater, Single Phase, 12411ST

Ask a questionMPN 12411ST
$96999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 11kW electric heat Runs on 240V single phase and draws 46 amps.
  • Flow protected A built-in pressure switch keeps the elements off when no water is moving.
  • Wide flow window Operates at any flow rate between 15 and 80 GPM.
  • Stainless steel tank The tank directs water across the elements for efficient heat transfer.
  • Incoloy elements Water flows directly over the incoloy heating elements inside the tank.
  • Compact The ST model measures 17-1/2 in. long, 4 in. wide and 14 in. tall.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coates 11kW 240V Spa Heater, Single Phase, 12411ST, SKU CHC-15-505. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coates 11kW 240V Spa Heater, Single Phase, 12411ST
Coates Heater

Coates 11kW 240V Spa Heater, Single Phase, 12411ST

$96999
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799 Raypak E3T Electric Pool and Spa Heater, 11 kW, 37,543 BTU, 240V Single Phase, Titanium, ELS 0011-1-TiB, 100-10000663$1,15400 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS$48499 Elm 4'x12'x2" ELM Solar Panel | 16604-12 Elm 4' x 12' x 2" ELM Solar Panel | 16604-12$48099 Elm 4'x10'x2" ELM Solar Panel | 16604-10 Elm 4' x 10' x 2" ELM Solar Panel | 16604-10$45399 Elm 4'x8'x2" ELM Solar Panel | 16604-08 Elm 4' x 8' x 2" ELM Solar Panel | 16604-08$29299 Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7417 remote FloThru heater, VS100, 4.0 kW Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16799
Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$1,99900 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900 Web Price

Product details

The Coates 12411ST is an 11kW electric spa heater from the ST Series, built for 240V single phase service at 46 amps. It is a straightforward heater for a spa that has electrical service available and no gas line.

Safe on low flow

A built-in pressure switch prevents the heater from firing when there is no water flow, and lets it run at any flow rate from 15 GPM up to 80 GPM. That protects the elements if a pump fails or a valve is left closed.

Stainless tank, incoloy elements

The stainless steel tank is shaped to direct the water flow over the incoloy heating elements, so heat transfers into the water efficiently rather than soaking into the housing.

Size

The ST model measures 17-1/2 in. long, 4 in. wide and 14 in. tall, small enough to fit on most equipment pads. A 5.5kW version in the same series is available for smaller spas.

Specifications
Brand Coates
Manufacturer part number 12411ST
Series ST
Type Electric spa heater
Power 11 kW
Heat output 37,543 BTU/hr, by Coates
Electrical 240 V, single phase, 46 A
Water connections 1-1/2 in x 2 in unions for PVC pipe
Dimensions 17-1/2 in long, 4 in wide, 14 in high
Shipping weight 19 lb
Heating elements Incoloy
Tank Stainless steel
Controls Digital thermostat, manual reset high limit, flow switch
Flow rate 15 to 80 GPM
Listing UL, indoor or outdoor
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates Heater

Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199 Coates 20005061 threaded heating element 5.5kW 240V with gasket Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$6899 Coates 22003820 high temperature limit switch for Coates electric heaters Coates High Temperature Limit Switch, 22003820$9399 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799 Coates 20006009 heater element, 12 kW 240V Coates Heater Element 12 kW 240V, 20006009$32999 Coates 23000105 Q-12DS50 half inch pool heater flow switch Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$8799
Coates 32705010 split nut union in PVC for SHA and SHB heaters Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$1999 Coates 22002001 temperature control thermostat TD103-77 for CPH and PHS heaters Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$6499 Coates electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999 Coates 57kW three phase 480V electric pool and spa heater Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,86399 Coates electric pool and spa heater Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799 Coates 20006004 15kW 208V heater element with 4 bolt flange and gasket Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$32399

Questions and answers

What people ask about this product, answered by our pool techs.

What electrical supply does the Coates 12411ST need?
240 V, single phase, 46 A, by Coates's table for the 12411ST. Have an electrician confirm the panel, breaker and conductors before ordering.
Can the Coates 12411ST heat a pool?
Coates sells the ST series as spa heaters, at 37,543 BTU/hr for the 12411ST. Its pool heaters start at 12 kW in the CE series.
What flow does the Coates 12411ST need?
15 to 80 GPM. The built in flow switch stops the heater when there is no flow.
What controls does the Coates 12411ST have?
A digital thermostat, a manual reset high limit and a flow switch, all built in. Coates gives the working flow range as 15 to 80 GPM.
Can the Coates 12411ST be installed outdoors?
Yes. It is UL listed for indoor or outdoor installation.
Ask your own question
