Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spasBalboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1 In stock$23799

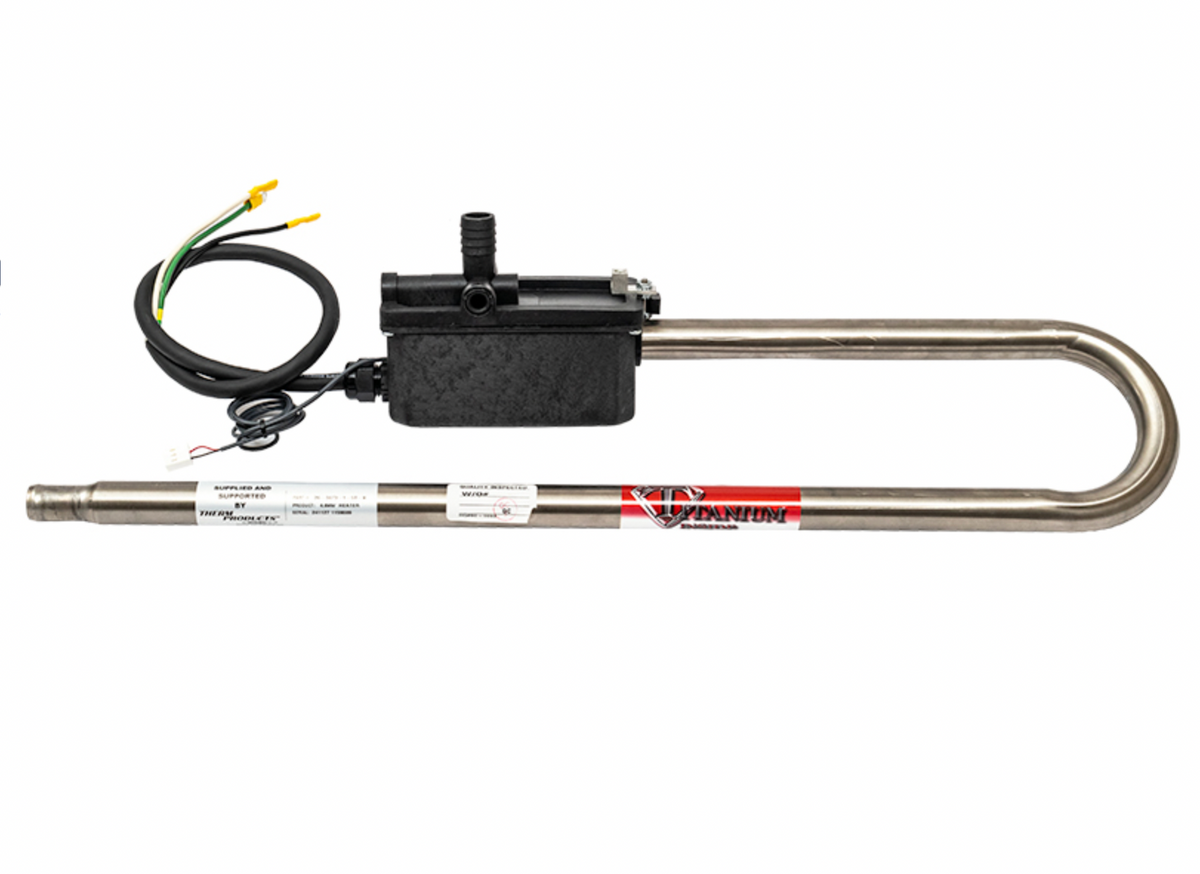

Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas
Shop all Balboa

Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1

Ask a questionMPN C3473-1
$23799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 4kW at 240V The heating element is rated 4kW at 240 volts.
  • Built for low flow The trombone style body is designed to heat efficiently in spas running reduced circulation.
  • Flow switch and hi-limit sensor Both safety devices come as part of the heater, so it only fires under the right conditions.
  • 3/4 inch hose barb connections Ties into the spa plumbing through barb fittings for a secure joint.
  • 40 inch pigtail cord The lead gives room to reach the control pack without splicing in extra wire.
  • Caldera and Watkins spas Suited to models such as the Caldera Utopia and Paradise Series.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1, SKU HTAC34731. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1
Balboa

Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1

$23799
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699 Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7417 remote FloThru heater, VS100, 4.0 kW Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16699 Elm 4'x8'x2" ELM Solar Panel | 16604-08 Elm 4' x 8' x 2" ELM Solar Panel | 16604-08$29299 Coates Heater 12kW Element 480V 4-Bolt Flange & Gasket | 20006015 Coates Heater 12kW Element 480V 4-Bolt Flange & Gasket | 20006015$32399 Raypak Electronic Ignition Control Lockout Natural Gas | 004817B Raypak Electronic Ignition Control Lockout Natural Gas | 004817B$17899 Coates Heater 6kW Element 240V with 4-Bolt Flange & Gasket | 20006046 Coates Heater 6kW Element 240V with 4-Bolt Flange & Gasket | 20006046$27599 Zodiac PRESSURE SWITCH 1-10 PSI | R0015500 Zodiac PRESSURE SWITCH 1-10 PSI | R0015500$13199 Pentair 0 MODULE NATURAL GAS CH150 IID | 073584 Pentair 0 MODULE NATURAL GAS CH150 IID | 073584$27699
Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600 Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600$10399 Raypak Pilot Orifice Millivolt Propane | 003902F Raypak Pilot Orifice Millivolt Propane | 003902F$7199 Raypak Header Gasket 9-Pack 155B-C | 800086B Raypak Header Gasket 9-Pack 155B-C | 800086B$2699 Raypak Pilot Orifice Propane Electronic Ignition Heaters | 004308F Raypak Pilot Orifice Propane Electronic Ignition Heaters | 004308F$2299 Elm 4'x10'x2" ELM Solar Panel | 16604-10 Elm 4' x 10' x 2" ELM Solar Panel | 16604-10$45399 Elm 4'x12'x2" ELM Solar Panel | 16604-12 Elm 4' x 12' x 2" ELM Solar Panel | 16604-12$48099 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS$48499 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Pentair MasterTemp & Sta-Rite Max-E-Therm Natural Gas | 77707-0253 Pentair MasterTemp & Sta-Rite Max-E-Therm Natural Gas | 77707-0253$65499 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799

Product details

The Balboa C3473-1 is a 4kW, 240V trombone style replacement heater for Caldera and Watkins spas. It is the low flow version, built for tubs whose circulation runs slower than a standard system.

Why low flow matters

A spa heater needs water moving past the element to shed heat safely. When circulation drops, an ordinary heater either trips its hi-limit or heats unevenly. The trombone body on this heater is shaped to keep heat transfer steady at reduced flow, which is why it suits models such as the Caldera Utopia and Paradise Series.

Safety and fitting

The flow switch and the hi-limit sensor are both part of the assembly, so the heater only energizes when conditions are right. Plumbing is through 3/4 inch hose barbs, and the 40 inch pigtail cord gives enough length to reach the control pack without splicing.

The same heater is cataloged elsewhere as 26-3473-1-5T-K by HydroQuip, 74912 by Watkins and SEH-4300-NHW by Laing. If your old unit carries one of those numbers, this is the replacement.

Specifications
Brand Balboa
Manufacturer part number C3473-1
Type Low flow trombone heater
Rating 4kW at 240V
Connections 3/4" hose barb
Cord 40" pigtail
Included Flow switch and hi-limit sensor
Fits Caldera and Watkins spas, including the Caldera Utopia and Paradise Series
Alternate part numbers 26-3473-1-5T-K (HydroQuip), 74912 (Watkins), SEH-4300-NHW (Laing)
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Balboa

Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33899 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Balboa Therm Products C2400-C333-01 flow thru heater, 4kW 240V Balboa Therm Products Flow Thru Heater 4kW 240V Replacement, C2400-C333-01$14699 Balboa Ultimax 5235208-S 2HP 230V two speed spa pump Balboa Ultimax Pump, 2HP 230V, 2 Speed, 2 Inch Suction Port, 5235208-S$33799 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7411 FloThru heater, 4.0kW, for BP100 spa control systems Balboa G7411 FloThru Heater BP100 4.0kW$17900 Web Price Balboa G7415 FloThru spa heater assembly, 4.0kW 230V, without mounting studs Balboa G7415 FloThru Heater 4.0kW, 230V, without Mounting Studs, G7415-01$17900 Web Price Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699 Balboa G8220 VL200 four button topside spa keypad without overlay Balboa 4-Button Topside VL200 Keypad, G8220$13499
Balboa 9845WW Cyclone Luxury 4-1/8 inch directional jet insert, face view Balboa Cyclone Luxury Jet Insert, 4-1/8" Directional, 9845WW$1299 HydroQuip 80-11774-K J/J/L/W/M/C spa control panel overlay Balboa HydroQuip J/J/L/W/M/C Control Panel Overlay, 80-11774-K$2799

Questions and answers

What people ask about this product, answered by our pool techs.

What does low flow mean here?
It means the heater is built to work in spas whose circulation is slower than normal. A standard heater in that situation trips out or heats unevenly, and this one is designed around the reduced flow.
Does it include the flow switch and hi-limit?
Yes. Both the flow switch and the hi-limit sensor are part of the assembly.
How does it plumb in?
Through 3/4 inch hose barb connections, with a 40 inch pigtail cord for the electrical side.
My old heater carries a different number, is this still the right part?
It is also cataloged as 26-3473-1-5T-K by HydroQuip, 74912 by Watkins and SEH-4300-NHW by Laing, so any of those numbers point to this heater.
Ask your own question
