Balboa G7414 FloThru heater VS100, 4.0kW, 230VBalboa FloThru Heater VS100, 4.0kW, 230V, G7414 In stock$16399

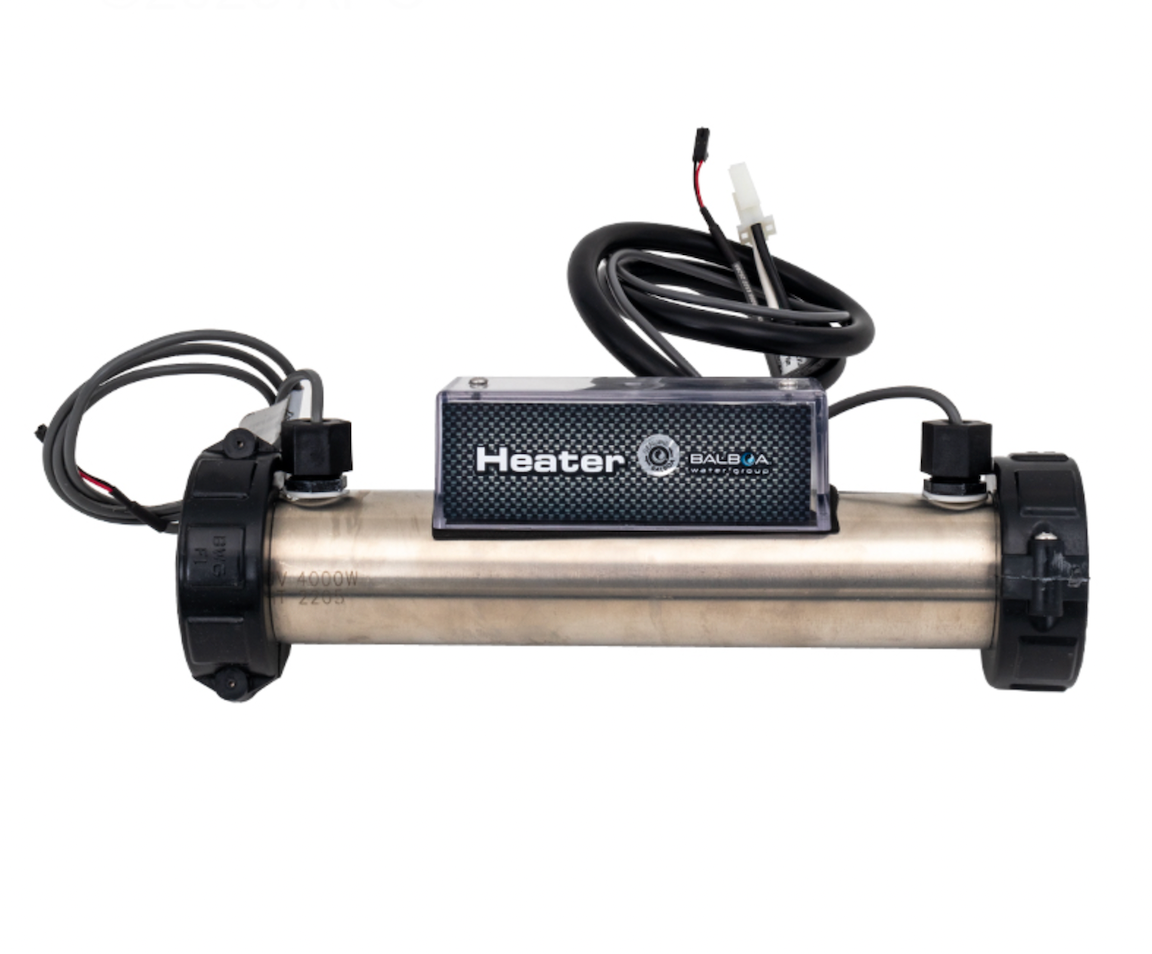

Balboa G7414 FloThru heater VS100, 4.0kW, 230V
Shop all Balboa

Balboa FloThru Heater VS100, 4.0kW, 230V, G7414

Ask a questionMPN G7414
$16399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Balboa G7414 The factory part number for this FloThru heater.
  • VS100 system Specified for the Balboa VS100, so match your system before ordering.
  • 4.0kW output Rated at 4.0kW, the heating capacity the system was designed around.
  • 230 volt Built for 230 volt supply, which is what a VS100 spa pack runs on.
  • FloThru design Water passes straight through the heater tube while the pump runs, which is how the spa holds set temperature.
  • Direct replacement Swaps in for the original heater when the spa runs but no longer heats.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Balboa FloThru Heater VS100, 4.0kW, 230V, G7414, SKU BBG7414. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Balboa FloThru Heater VS100, 4.0kW, 230V, G7414
Balboa

FloThru Heater VS100, 4.0kW, 230V, G7414

$16399
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Elm 4'x8'x2" ELM Solar Panel | 16604-08 Elm Solar Pool Heating Panel, 4 ft x 8 ft x 2 in., 2 in. Headers, 16604-08$29999 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line Spa Heater 1.5 kW 120V with Pressure Switch and 1-1/2 x 2 in. Unions, 1.5ILS$51199 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$93399 Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Raypak E3T ELS-D-0005-1-Ti 5.5kW 240V electric pool and spa heater Raypak E3T 5.5kW 240V Electric Heater ELS-D-0005-1-Ti, 017121$1,09000 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak E3T Electric Pool and Spa Heater, 11 kW, 37,543 BTU, 240V Single Phase, Titanium, ELS 0011-1-TiB, 100-10000663$1,21200 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900 Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$2,11900
Raypak 019141 E3T ELS-R-0018-3-TI electric pool and spa heater, 18KW 208V 3-phase Raypak E3T ELS-R-0018-3-TI Electric Pool and Spa Heater, 3-Phase, 18KW, 208V, 019141$2,12000 Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,25699 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800 Coates Electric Heater 18kW Single Phase 240V | 12418CE Coates CE Series 18 kW Single Phase 240V Electric Pool and Spa Heater, 12418CE$2,62099 Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900 Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,64900 Coates Electric Heater 18kW Three Phase 208V | 32018CE Coates CE Series 18 kW Three Phase 208V Electric Pool and Spa Heater, 32018CE$2,72099

Product details

The Balboa G7414 is the FloThru heater for the VS100 system, rated 4.0kW at 230 volts. It is the Balboa part, the same heater the system was built with.

How a FloThru heater works

Water is pushed through the heater tube by the pump and picks up heat as it passes the element on its way back to the spa. There is no separate heating vessel, so the heater only makes heat while water is moving through it. That design is simple and reliable, and it also means a failed element shows up as a spa that circulates normally and never warms.

Before you order

Confirm you have a VS100 system and that your supply is 230 volt, since the rating has to match what the pack and the breaker were set up for.

Specifications
Brand Balboa
Manufacturer part number G7414
Type FloThru heater
System VS100
Output 4.0kW
Voltage 230V
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Balboa

Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33299 Balboa 4239110-S Dura-Jet 1HP two speed 48 frame 115V spa pump Balboa Dura-Jet Spa Pump, 1HP 2-Speed 48 Frame 115V, 4239110-S$30399 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Balboa Therm Products C2400-C333-01 flow thru heater, 4kW 240V Balboa Therm Products Flow Thru Heater 4kW 240V Replacement, C2400-C333-01$14699 Balboa Ultimax 5235208-S 2HP 230V two speed spa pump Balboa Ultimax Pump, 2HP 230V, 2 Speed, 2 Inch Suction Port, 5235208-S$33799 Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7411 FloThru heater, 4.0kW, for BP100 spa control systems Balboa FloThru Heater BP100 4.0kW, G7411$17900 Web Price Balboa G7415 FloThru spa heater assembly, 4.0kW 230V, without mounting studs Balboa G7415 FloThru Heater 4.0kW, 230V, without Mounting Studs, G7415-01$17900 Web Price Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699
Balboa G8220 VL200 four button topside spa keypad without overlay Balboa 4-Button Topside VL200 Keypad, G8220$14099 Balboa 9845WW Cyclone Luxury 4-1/8 inch directional jet insert, face view Balboa Cyclone Luxury Jet Insert, 4-1/8" Directional, 9845WW$1299 HydroQuip 80-11774-K J/J/L/W/M/C spa control panel overlay Balboa HydroQuip J/J/L/W/M/C Control Panel Overlay, 80-11774-K$2399

Questions and answers

What people ask about this product, answered by our pool techs.

What system is this heater for?
It is the Balboa G7414 FloThru heater listed for the VS100.
What is the rating?
4.0kW at 230 volts.
The spa circulates but the water stays cold. Is the heater the problem?
It is one of the two common causes, the other being the control side. If the pump runs and flow is good but the element never brings the water up, the heater is the part to look at.
Is this a genuine Balboa part?
Yes. It is the Balboa part, G7414.
