Raypak E3T 5.5kW 240V Electric Heater ELS-D-0005-1-Ti, 017121 In stock$1,09000
Raypak E3T 5.5kW 240V Electric Heater ELS-D-0005-1-Ti, 017121
$1,09000
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Titanium heating elements Built to take the water conditions that destroy ordinary elements, salt chlorinated pools included.
- 316L stainless steel The heater body uses 316L stainless, the grade chosen for corrosion resistance.
- 5.5 kW, 18,767 BTU/hr Model 0005 in the Electric 3-Series, running on 240V.
- Solid state design The E3T pairs a solid-state design with flow sensor technology.
- Digital controls with diagnostics Readable settings and on-board diagnostics rather than a blind thermostat dial.
- Compact to install The small footprint suits new construction and drop-in replacements alike.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
E3T 5.5kW 240V Electric Heater ELS-D-0005-1-Ti, 017121
$1,09000
Subtotal
Similar products
Other products people compare with this one.
Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999
Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799
Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299
Elm 4' x 12' x 2" ELM Solar Panel | 16604-12$49399
Elm 4' x 10' x 2" ELM Solar Panel | 16604-10$46099
Elm 4' x 8' x 2" ELM Solar Panel | 16604-08$29999
Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799
Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999
Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16799
Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399
Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$2,11900
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Coates Electric Heater 18kW Single Phase 240V | 12418CE$2,54499
Coates Electric Heater 18kW Three Phase 208V | 32018CE$2,64399
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

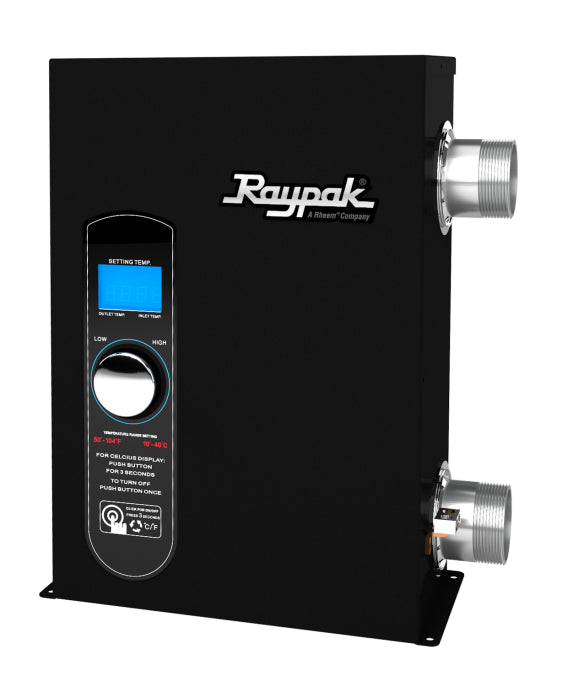

The Raypak E3T is the Electric 3-Series Titanium heater for pools and spas. This is model 0005, rated 5.5 kW at 240V for 18,767 BTU/hr, listed as ELS-D-0005-1-Ti.
Built for pool water
Titanium heating elements and a 316L stainless steel build are the reason this heater is specified where water conditions are hard on equipment, salt water chlorinated pools included. Those are the two materials that decide how long an electric heater lasts in service.
Controls and installation
The E3T uses a solid-state design with flow sensor technology, and the controls are digital with diagnostics rather than a bare thermostat. Its compact size is a practical advantage: it fits new construction and drops into replacement work without rebuilding the pad around it.
Note that the source listing carries two part numbers for this heater, 017121 and 017129. Both are given here so you can match whichever appears on your equipment paperwork.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 017121 |
| Also listed as | 017129 |
| Model | ELS-D-0005-1-Ti |
| Model number | 0005 |
| Series | Electric 3-Series Titanium (E3T) |
| UPC | 840891040286 |
| Type | Electric pool and spa heater |
| Heat output | 18,767 BTU/hr, by Raypak |
| Power | 5.5 kW |
| Electrical | 240 V, single phase, 60 Hz |
| Breaker | 1 x 30 A |
| Water connections | 1-1/2 in NPT |
| Dimensions | 12-1/8 in high, 9 in wide, 4-3/4 in deep |
| Shipping weight | 15 lb |
| Heating elements | Titanium |
| Body | 316L stainless steel |
| Controls | Digital, with diagnostics and a flow readout |
| Minimum flow | 15 GPM |
| Warranty | 1 year, by Raypak |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77399
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300
Questions and answers
What people ask about this product, answered by our pool techs.
How much heat does the Raypak E3T 5.5 kW put out?
18,767 BTU/hr, by Raypak's brochure for the 0005 model.
Can the Raypak E3T 5.5 kW run on a salt pool?
Yes. Raypak builds the E3T with titanium heating elements and 316L stainless steel, and says both are there to stand up to extreme pool water, salt water chlorinated pools included.
What breaker does the Raypak E3T 5.5 kW need?
One 30 A breaker on 240 V, single phase, by Raypak's brochure. The water connections are 1-1/2 inch and Raypak's minimum flow is 15 GPM.
Will the Raypak E3T 5.5 kW run on 120 V?
No. 240 V, single phase. Raypak's manual says every E3T model is rated for operation on 240 V only.
What warranty does Raypak give the E3T 5.5 kW?
One year, by Raypak's catalog.
Where is the manual for the Raypak E3T 5.5 kW?
Under Downloads on this page. It is Raypak's E3T Installation and Operation Manual, part number 241758.
