Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781 In stock$2,11900
Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781
$2,11900
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Sized for above ground the 106A is the smallest heater Raypak builds, aimed at above ground pools and spas.
- Propane fired this is the LP version, not natural gas.
- Analog thermostat a dial, not a digital board, which keeps the control simple.
- Indoor or outdoor rated it can be installed either way.
- Plugs in at 120V supplied with a 120V NEMA cord rather than requiring a hard wired supply.
- Auto bypass 2" SKT inlet with auto bypass built in.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781
$2,11900
Subtotal
Similar products
Other products people compare with this one.
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900

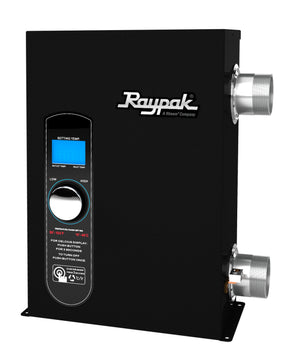

Raypak E3T 5.5kW 240V Electric Heater ELS-D-0005-1-Ti, 017121$1,09000
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899
Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$3,02300
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999
Raypak E3T ELS-R-0018-3-TI Electric Pool and Spa Heater, 3-Phase, 18KW, 208V, 019141$2,12000
Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$3,14900
Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199
Raypak E3T Electric Pool and Spa Heater, 11 kW, 37,543 BTU, 240V Single Phase, Titanium, ELS 0011-1-TiB, 100-10000663$1,21200
Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799
Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999
Coates Electric Heater 18kW Three Phase 208V | 32018CE$2,64399
Coates Electric Heater 18kW Single Phase 240V | 12418CE$2,54499
Raypak E3T Three Phase Electric Commercial Pool and Spa Heater, 30 kW, 102,364 BTU, 208V, Titanium, ELS-R-0030-3-TI, 019145$2,75200
Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999
Raypak P-R206A-MP-C #57 Propane Gas Heater, 199.5K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009200$3,33300
Web Price
Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

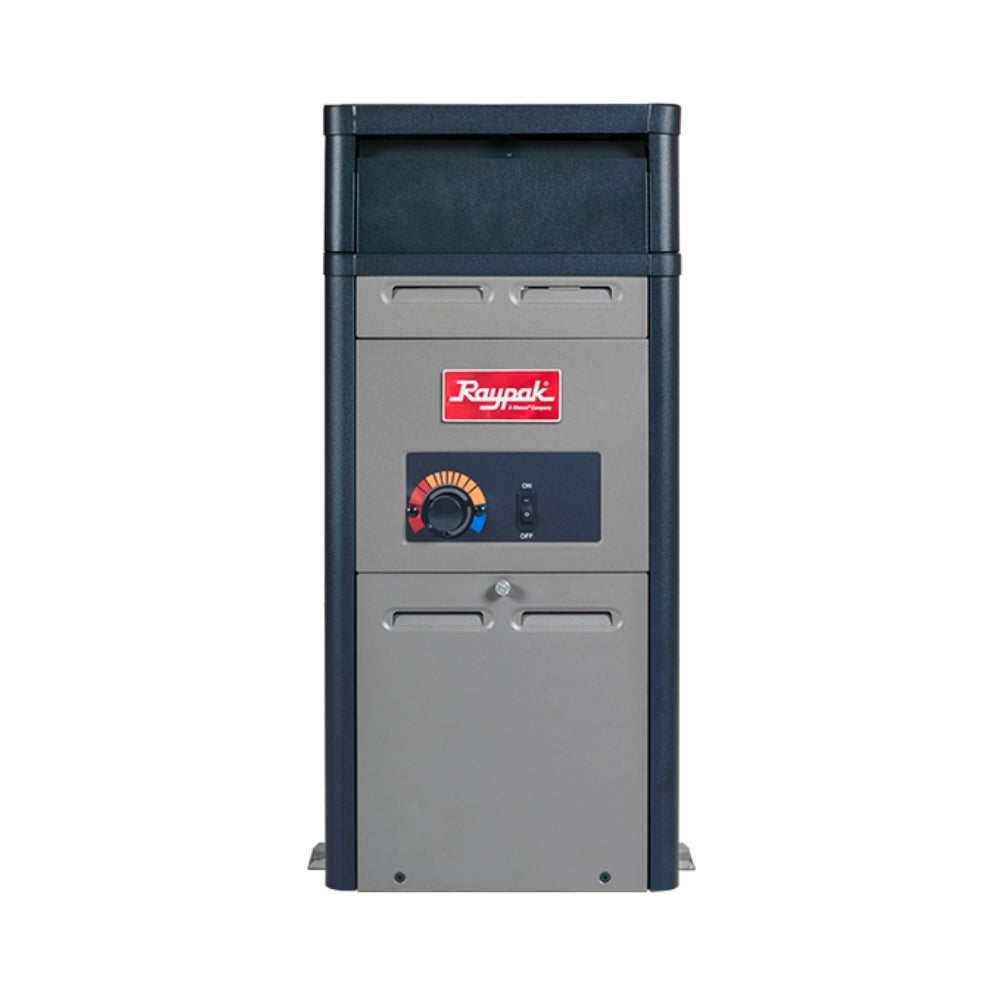

The Raypak P-R106A-AP-C, part number 014781, is a propane fired pool and spa heater with an analog thermostat. It is the 106A, the smallest heater in the Raypak line, and it is built for above ground pools and spas.
What being the small one means
The 106A is not a scaled down product. It carries the same construction standard as the larger Raypak heaters; it is simply matched to the water volume an above ground pool or a spa actually holds. On that kind of pool it does what a heater is supposed to do: opens the season earlier, closes it later, and has the water ready when you are. On a large in ground pool it is undersized and will run without ever catching up.
Connections and controls
Water comes in through a 2 in. SKT inlet with auto bypass. Power is a 120V NEMA cord, so it plugs in rather than needing a hard wired supply. Control is an analog thermostat. It can be installed indoors or outdoors and is rated for elevations from 0 to 4999 feet.
Fuel and rating
This is the propane model. Two BTU figures appear in the source information for it, 106,000 BTU in the listing title and 105K BTU in the model description, both describing the same 106A heater. If the exact input matters for a permit or for sizing the gas line, confirm it against the data plate on the unit.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 014781 |
| Model number | P-R106A-AP-C |
| Series | 106A |
| UPC | 840891035862 |
| Type | Above ground pool and spa heater |
| Fuel | Propane |
| Heat input | 105,000 BTU/hr |
| Heat output | 86,100 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Controls | Analog thermostat |
| Ignition | Electronic, spark lit pilot |
| Heat exchanger | Copper fin tube |
| Electrical | 120 V, 3 prong cord included |
| Water connections | 1-1/2 in or 2 in NPT |
| Gas connection | 1/2 in NPT |
| Elevation | 0 to 1,999 ft |
| Shipping weight | 85 lb |
| Warranty | 2 years, by Raypak |
| Ships | Freight |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77399
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 014781 natural gas or propane?
Propane, for 0 to 1,999 ft. Raypak's catalog lists the 106A under separate part numbers by fuel and by elevation.
Does the Raypak 106A 014781 plug in?
Yes. Raypak fits it with a 120 V power cord and a three prong plug.
Can the Raypak 106A 014781 heat an inground pool?
Raypak sells it as an above ground pool and spa heater, at 105,000 BTU/hr input. Our pool heater size calculator will say whether that covers your pool.
Does the Raypak 014781 have a standing pilot?
No. The ignition is electronic: a spark lights the pilot when the thermostat calls for heat.
What warranty does Raypak give the 106A 014781?
Two years, by Raypak's catalog.
Where is the manual for the Raypak 106A 014781?
Under Downloads on this page, as Installation and Operation. It is Raypak's manual for the 106A and 156A above ground heaters.
