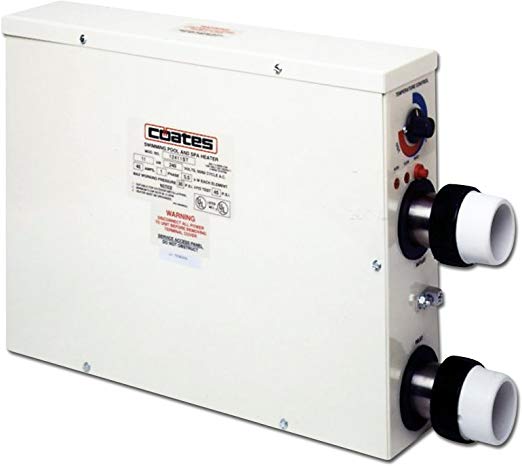

Coates 12406ST ST Series 5.5 kW electric spa heater, 240VCoates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST In stock$88799
Coates 12406ST ST Series 5.5 kW electric spa heater, 240V
Shop all Coates Heater

Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST

Ask a questionMPN 12406ST
$88799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 5.5 kW output 18772 BTUH of heat from a 240 volt single phase supply.
  • Compact cabinet 4 inch wide by 14 inch deep by 17-1/2 inch high, so it fits where a gas heater will not.
  • Union connections 1-1/2 inch by 2 inch unions for PVC pipe, so the heater comes out without cutting.
  • Wide flow range Rated for 15 to 80 gpm.
  • Electric, no gas line No flue, no gas run and no combustion air to plan for.
  • Circuit sizing is known 23 amps draw, 30 amp maximum breaker, 10 AWG wire.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST, SKU CHC-15-504. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST
Coates Heater

Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST

$88799
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Elm 4'x12'x2" ELM Solar Panel | 16604-12 Elm 4' x 12' x 2" ELM Solar Panel | 16604-12$48099 Pentair MasterTemp & Sta-Rite Max-E-Therm Natural Gas | 77707-0253 Pentair MasterTemp & Sta-Rite Max-E-Therm Natural Gas | 77707-0253$65499 Elm 4'x10'x2" ELM Solar Panel | 16604-10 Elm 4' x 10' x 2" ELM Solar Panel | 16604-10$45399 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS$48499 Coates Heater 12kW Element 480V 4-Bolt Flange & Gasket | 20006015 Coates Heater 12kW Element 480V 4-Bolt Flange & Gasket | 20006015$32399 Elm 4'x8'x2" ELM Solar Panel | 16604-08 Elm 4' x 8' x 2" ELM Solar Panel | 16604-08$29299 Pentair 0 MODULE NATURAL GAS CH150 IID | 073584 Pentair 0 MODULE NATURAL GAS CH150 IID | 073584$27699
Coates Heater 6kW Element 240V with 4-Bolt Flange & Gasket | 20006046 Coates Heater 6kW Element 240V with 4-Bolt Flange & Gasket | 20006046$27599 Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Raypak Electronic Ignition Control Lockout Natural Gas | 004817B Raypak Electronic Ignition Control Lockout Natural Gas | 004817B$17899 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7417 remote FloThru heater, VS100, 4.0 kW Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16699 Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699 Zodiac PRESSURE SWITCH 1-10 PSI | R0015500 Zodiac PRESSURE SWITCH 1-10 PSI | R0015500$13199 Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600 Zodiac Zodiak Pool Systems LXI Flame Sensor | R0458600$10399 Raypak Pilot Orifice Millivolt Propane | 003902F Raypak Pilot Orifice Millivolt Propane | 003902F$7199

Product details

The Coates 12406ST is an ST Series electric spa heater rated at 5.5 kW, or 18772 BTUH, on a 240 volt single phase supply.

Electrical

The heater draws 23 amps, takes a 30 amp maximum breaker and is wired with 10 AWG. That is a dedicated circuit, and it is the item worth pricing before the heater, because the run from the panel is often the larger part of an electric heater install.

Plumbing and flow

Water connections are 1-1/2 inch by 2 inch unions for PVC pipe, so the heater unions off the line for service rather than being cut out. The rated flow range is 15 to 80 gpm, which covers the pump sizes normally found on a spa or small pool.

Size

The cabinet is 4 inch wide, 14 inch deep and 17-1/2 inch high. A gas heater of comparable duty needs a flue, combustion air and a gas run. This one needs a circuit and two unions, which is why electric is the usual answer on tight equipment pads and indoor spa rooms.

Specifications
Brand Coates
Manufacturer part number 12406ST
Type Electric spa heater, ST Series
Heat output 5.5 kW
Heat output BTUH 18772
Voltage rating 240 V, 1-Phase
Current 23 A
Maximum breaker size 30 A
Wire size 10 AWG
Water connection 1-1/2 inch x 2 inch union for PVC pipe
Flow rate 15 to 80 gpm
Cabinet width 4 inch
Cabinet depth 14 inch
Cabinet height 17-1/2 inch
Shipping weight 18.65 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates Heater

Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$51299 Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199 Coates 20005061 threaded heating element 5.5kW 240V with gasket Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$6899 Coates 22003820 high temperature limit switch for Coates electric heaters Coates High Temperature Limit Switch, 22003820$9399 Coates 20006009 heater element, 12 kW 240V Coates Heater Element 12 kW 240V, 20006009$32999 Coates 23000105 Q-12DS50 half inch pool heater flow switch Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$8199
Coates 32705010 split nut union in PVC for SHA and SHB heaters Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$1999 Coates 22002001 temperature control thermostat TD103-77 for CPH and PHS heaters Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$6499 Coates 32024CPH 24kW 208V electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999 Coates 57kW three phase 480V electric pool and spa heater Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,86399 Coates 12430CPH CPH Series 30kW 240V single phase electric pool heater Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799 Coates 20006004 15kW 208V heater element with 4 bolt flange and gasket Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$32399

Questions and answers

What people ask about this product, answered by our pool techs.

What size circuit does it need?
It draws 23 amps at 240 volts single phase, with a 30 amp maximum breaker and 10 AWG wire.
How much heat does 5.5 kW give?
18772 BTUH.
How does it plumb in?
Through 1-1/2 inch by 2 inch unions for PVC pipe, rated for a flow of 15 to 80 gpm.
How much space does it take?
The cabinet is 4 inch wide, 14 inch deep and 17-1/2 inch high, which is far smaller than a gas heater of similar duty.
