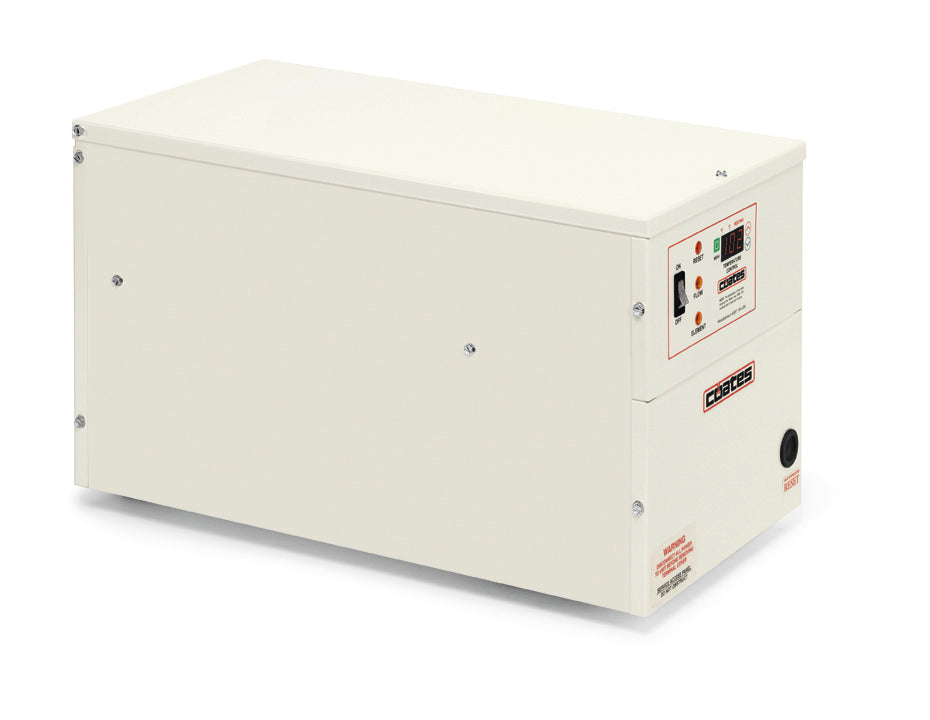

Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heaterCoates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE In stock$2,14299
Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater
Shop all Coates Heater

Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE

Ask a questionMPN 32015CE
$2,14299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 15 kW at 208 V three phase electric heat for spas and smaller pools where gas is not an option.
  • 42 amp draw plan the circuit and breaker around the 42 A rating on 208 V three phase.
  • Flow switch standard the heater will not fire without water moving through it.
  • All stainless steel tank corrosion resistant construction for long service in pool water.
  • Genuine Coates model 32015CE from the CE Series.
  • Compact electric design no gas line, flue or combustion air to arrange.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE, SKU CHC-15-519. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE
Coates Heater

Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE

$2,14299
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$30899
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3499
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$38199
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,26799 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900 Web Price Raypak 009216 Digital 200K BTU natural gas pool heater, model P-R206A-EN-C, front view Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,83800 Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,18699 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,17900 Web Price
Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,49900 Web Price Raypak 009220 P-R206A-EN-C #51 high altitude digital natural gas pool heater, 199.5K BTU Raypak High Altitude R206A Digital Natural Gas Heater, 199.5K BTU, P-R206A-EN-C #51, 009220$2,83800 Web Price Raypak 009224 P-R206A-EP-C 200K BTU digital propane gas pool and spa heater Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$2,92599 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100 Web Price Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,10299 Hayward W3H150FDN Universal H-Series 150,000 BTU Low NOx natural gas pool heater Hayward Universal H-Series Natural Gas 150,000 BTU Low NOx Pool Heater, W3H150FDN$2,99900 Web Price Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$1,99900 Web Price Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$3,04299 Raypak E3T 27kW digital electric pool heater, part 100-10000666 Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$2,99900 Web Price Coates 32024CPH 24kW 208V electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,97999

Product details

The Coates CE Series 32015CE is an electric pool and spa heater rated at 15 kW on 208 V three phase power, drawing 42 amps. Electric heat suits spas and smaller pools, indoor installations and any site where a gas line, flue or combustion air is impractical.

Built to run safely

A flow switch is standard and keeps the elements from energizing when no water is moving through the heater, which protects the elements from burning out on a lost prime or closed valve. The tank is all stainless steel for corrosion resistance and long life.

Before you order

Confirm the pad has 208 V three phase service with capacity for a 42 amp load. Coates builds the CE Series in single phase and three phase versions, and this is the three phase model. It ships freight.

Specifications
Brand Coates
Manufacturer part number 32015CE
Series CE Series
Type Electric pool and spa heater
Output 15 kW
Voltage 208 V
Phase Three phase
Amperage 42 amps
Tank All stainless steel
Flow protection Flow switch
Shipping weight 42 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates Heater

Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,68599 Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,10299 Coates 6ILS in-line electric spa heater, 6 kW 240 V single phase Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW$52899 Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$3,04299 Coates 20005061 threaded heating element 5.5kW 240V with gasket Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$7199 Coates 22003820 high temperature limit switch for Coates electric heaters Coates High Temperature Limit Switch, 22003820$9699 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$91499 Coates 20006009 heater element, 12 kW 240V Coates Heater Element 12 kW 240V, 20006009$33999 Coates 23000105 Q-12DS50 half inch pool heater flow switch Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$8499
Coates 32705010 split nut union in PVC for SHA and SHB heaters Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$1999 Coates 22002001 temperature control thermostat TD103-77 for CPH and PHS heaters Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$6699 Coates 32024CPH 24kW 208V electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,97999 Coates 57kW three phase 480V electric pool and spa heater Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,86399 Coates 12430CPH CPH Series 30kW 240V single phase electric pool heater Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$3,07999 Coates 20006004 15kW 208V heater element with 4 bolt flange and gasket Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$33399

Questions and answers

What people ask about this product, answered by our pool techs.

What electrical service does this need?
208 V three phase at 42 amps. It is not a single phase heater and will not run correctly on 240 V single phase service.
Does it have low flow protection?
Yes. A flow switch prevents the elements from energizing when there is no water flow through the tank.
What is the tank made of?
All stainless steel, for corrosion resistance and long life in chlorinated or brominated water.
Is this a pool heater or a spa heater?
Coates rates it for both. At 15 kW it is well suited to spas and smaller pools; larger pools generally need more output.
Ask your own question
