Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW

Ask a questionMPN 6ILS
$51299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Compact in-line design Plumbs directly into the circulation line rather than sitting as a separate appliance.
  • Stainless steel tank The heater body is stainless, built for constant contact with treated water.
  • Replaceable titanium elements Elements are titanium and are serviceable, so element failure does not mean a new heater.
  • For spas and hot tubs under 400 gallons Intended for spas and hot tubs with a forced water circulation system holding less than 400 gallons.
  • Single phase 240 V Rated 6 kW at 240 V, one phase, drawing 23 A, so size the circuit and breaker accordingly.
  • Rating varies in the source This unit is also listed as 5.5 kW at 230 V, which reflects the same heater rated at a different supply voltage.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW, SKU CHC-15-508. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW
Coates Heater

Coates 6ILS In-Line Electric Spa Heater, 1 Phase 240 V 6 kW

$51299
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Subtotal

Similar products

Other products people compare with this one.

Elm 4'x12'x2" ELM Solar Panel | 16604-12 Elm 4' x 12' x 2" ELM Solar Panel | 16604-12$49399 Elm 4'x10'x2" ELM Solar Panel | 16604-10 Elm 4' x 10' x 2" ELM Solar Panel | 16604-10$46099 Elm 4'x8'x2" ELM Solar Panel | 16604-08 Elm 4' x 8' x 2" ELM Solar Panel | 16604-08$29999 Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS Coates In-Line 1.5kW 120V Electric Heater | 1.5ILS$48499 Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7417 remote FloThru heater, VS100, 4.0 kW Balboa Remote FloThru Heater, VS100, 4.0kW, G7417$16799 Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799
Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak E3T Electric Pool and Spa Heater, 11 kW, 37,543 BTU, 240V Single Phase, Titanium, ELS 0011-1-TiB, 100-10000663$1,15400 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price Raypak P-R106A-AP-C propane gas pool and spa heater, part 014781 Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$1,99900 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Raypak E3T 18Kw 240V electric pool and spa heater with titanium elements Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price

Product details

The Coates 6ILS is an in-line electric heater for spas and hot tubs, rated 6 kW on a single phase 240 V supply with a 23 amp draw. It plumbs into the circulation line rather than standing as a separate piece of equipment.

How it is built

The tank is stainless steel and the heating elements are titanium. Both choices are about living in treated water year after year. The elements are replaceable, which matters over the life of the heater: when an element eventually fails, it is a serviceable repair rather than a reason to buy a new unit.

What it is sized for

Coates intends this heater for spas and hot tubs that have a forced water circulation system and hold less than 400 gallons. It is a spa heater, not a swimming pool heater, and the compact in-line format reflects that.

Electrical and rating

Plan the installation around single phase 240 V and a 23 amp draw, and have the circuit and breaker confirmed by a licensed electrician. Note that this heater appears in the source under two ratings, 6 kW at 240 V and 5.5 kW at 230 V. Electric heater output moves with supply voltage, so those are two ways of describing the same unit.

Specifications
Brand Coates
Manufacturer part number 6ILS
Type In-line electric spa heater
Power 5.5 kW
Heat output 18,772 BTU/hr, by Coates
Electrical 240 V, single phase, 23 A
Water connections 1-1/2 in x 2 in unions for PVC pipe
Dimensions 19-1/2 in long with unions, 15 in without; control box 12 x 6 x 6 in
Shipping weight 10 lb
Heating element Titanium, replaceable
Tank Stainless steel
Controls Close differential thermostat, pressure switch, manual reset high limit, contactor
Listing UL, indoor installation
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Coates Heater

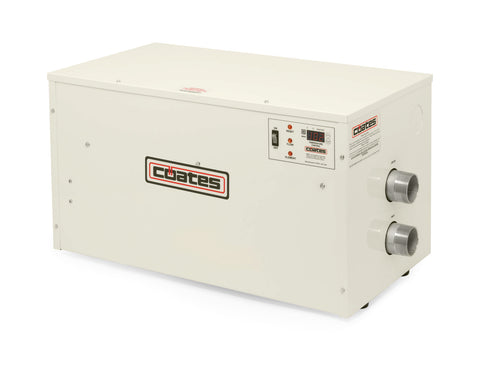

Coates 12411ST 11kW 240V single phase ST Series electric spa heater Coates 11kW 240V Spa Heater, Single Phase, 12411ST$96999 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Coates 12424CPH CPH Series 24kW 240V single phase electric pool and spa heater Coates CPH Series Electric Heater 1 PH 24kW 240V, 12424CPH$2,95199 Coates 20005061 threaded heating element 5.5kW 240V with gasket Coates Electric Heater 5.5kW 240V Threaded Element with Gasket, 20005061$6899 Coates 22003820 high temperature limit switch for Coates electric heaters Coates High Temperature Limit Switch, 22003820$9399 Coates 12406ST ST Series 5.5 kW electric spa heater, 240V Coates 5.5 kW ST Series Electric Spa Heater, 240V, 12406ST$88799 Coates 20006009 heater element, 12 kW 240V Coates Heater Element 12 kW 240V, 20006009$32999 Coates 23000105 Q-12DS50 half inch pool heater flow switch Coates Heater 1/2" Flow Switch, Q-12DS50, 23000105$8799
Coates 32705010 split nut union in PVC for SHA and SHB heaters Coates Split Nut Union for SHA and SHB Heaters, PVC, 1-1/2 to 2 inch, 32705010$1999 Coates 22002001 temperature control thermostat TD103-77 for CPH and PHS heaters Coates Temperature Control Thermostat TD103-77 CPH/PHS, 22002001$6499 Coates electric pool and spa heater Coates Electric Pool and Spa Heater 24kW 208V Three Phase, 32024CPH$2,88999 Coates 57kW three phase 480V electric pool and spa heater Coates Electric Heater 57kW Three Phase 480V, 32857PHS$3,86399 Coates electric pool and spa heater Coates CPH Series Electric Heater 1 Phase 30kW 240V, 12430CPH$2,98799 Coates 20006004 15kW 208V heater element with 4 bolt flange and gasket Coates 15kW Heater Element, 208V with 4 Bolt Flange and Gasket, 20006004$32399

Questions and answers

What people ask about this product, answered by our pool techs.

What electrical supply does the Coates 6ILS need?
240 V, single phase, 23 A, by Coates's table for the 6ILS. Have an electrician confirm the panel, breaker and conductors before ordering.
What is the Coates 6ILS for?
A spa or hot tub. It is Coates's in-line spa heater, with a stainless steel tank and a replaceable titanium element, and Coates lists it for indoor installation.
Does the Coates 6ILS have a thermostat?
Yes, a close differential thermostat, with a pressure switch and a manual reset high limit.
What controls does the Coates 6ILS have?
A close differential thermostat, a pressure switch, a manual reset high limit and an element on light.
Can the Coates 6ILS be installed outdoors?
Coates lists the ILS for indoor installation only.
