Raypak E3T Three Phase Electric Commercial Pool and Spa Heater, 30 kW, 102,364 BTU, 208V, Titanium, ELS-R-0030-3-TI, 019145$2,26900
Raypak E3T Three Phase Electric Commercial Pool and Spa Heater, 30 kW, 102,364 BTU, 208V, Titanium, ELS-R-0030-3-TI, 019145
$2,26900
$2,621.00
13% OFF
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
Out of stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 30 kW, 102,364 BTU/hr Raypak's rating for the ELS-R-0030-3-TI, on a 208 V three phase supply.
- Titanium elements Raypak builds every E3T 3-phase with titanium heating elements and says it stands up to salt pool water.
- Flow protection The elements will not energize below 15 GPM, which keeps the heater from dry firing; the working range is 15 to 60 GPM.
- 50/50 mode Runs the heater at half capacity, which Raypak offers on the 30, 45 and 54 kW models to help prevent downtime and cut energy use.
- Plain language display An 80 character display with full fault descriptions in place of blinking lights or short codes.
- Solid state relays Quiet operation, a fuse access door, inlet and outlet sensors, and 2 inch NPT unions in the box.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
E3T Three Phase Electric Commercial Pool and Spa Heater, 30 kW, 102,364 BTU, 208V, Titanium, ELS-R-0030-3-TI, 019145
$2,26900
Raypak
Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
$3,85900
Raypak
156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
$1,94900
Pentair
MasterTemp 250 Natural Gas Pool Heater, EC-462026
$3,73900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,42900
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$1,89900
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,08900
Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,61900
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,23900
Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,06900
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

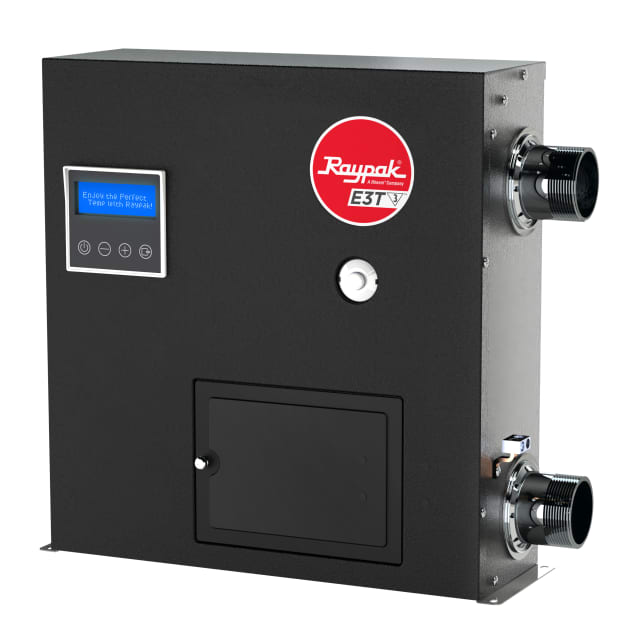

The Raypak ELS-R-0030-3-TI, part number 019145, is the 30 kW, 208 V model of Raypak's E3T 3-Phase electric heater for commercial pools and spas: 102,364 BTU/hr, 6 titanium heating elements, and a digital control with an 80 character display.
Where it fits
Raypak designs the E3T 3-Phase for commercial use: multi family housing, schools, hotels and aquatic centers. It is certified to UL 1261 and CEC Title 20, installs indoors or out, and mounts vertically on a level, non combustible base or a wall.
Protection built in
Flow protection keeps the elements off below 15 GPM, so the heater cannot dry fire. Low temperature operating mode guards against sharp drops in system water temperature, and load detection stops unwanted heating when there is no call for heat. On this size, 50/50 mode runs the heater at half capacity to help prevent downtime and reduce energy costs.
Electrical and plumbing
Raypak's manual gives 83.27 A per phase at 208 V, a 105 A breaker per phase and 2 AWG wire for this model; have a licensed electrician confirm the supply. Water connections are 2 inch NPT with unions included, and the working flow range is 15 to 60 GPM; above 60 GPM Raypak calls for a manual bypass valve.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 019145 |
| Model | ELS-R-0030-3-TI |
| Series | E3T 3-Phase |
| UPC | 840891099345 |
| Type | Electric commercial pool and spa heater |
| Heat output | 102,364 BTU/hr, by Raypak |
| Power | 30 kW |
| Electrical | 208 V, three phase |
| Amps per phase | 83.27 A |
| Breaker | 105 A per phase, by Raypak's manual |
| Wire gauge | 2 AWG, by Raypak's manual |
| Heating elements | Titanium, 6 at 5 kW |
| Water flow | 15 to 60 GPM; the elements do not energize below 15 GPM |
| Water connections | 2 in NPT, unions included |
| Controls | Digital, 80 character display, inlet and outlet sensors |
| 50/50 mode | Runs at 50 percent capacity, on the 30, 45 and 54 kW models |
| Certification | UL 1261; CEC Title 20 |
| Cabinet depth | 8 in |
| Unit weight | 50 lb |
| Shipping weight | 59.5 lb |
| Warranty | 1 year, parts and labor; the heating elements 90 days, by Raypak |
| Ships | Parcel |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5199
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25199
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak Boiler Burner 10-Pack, 100-10000414$4799
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$37499
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Questions and answers
What people ask about this product, answered by our pool techs.
What breaker does the Raypak E3T ELS-R-0030-3-TI need?
105 A per phase, by Raypak's manual, with 2 AWG wire. The heater draws 83.27 A per phase at 208 V, three phase. Electrical work is for a licensed electrician.
Can the Raypak E3T ELS-R-0030-3-TI heat a salt water pool?
Yes. Raypak says every E3T 3-phase model has titanium elements and stands up to salt pool water. Its manual gives 4,500 ppm as the maximum salt level.
What flow does the Raypak E3T 019145 need?
15 GPM to start and up to 60 GPM, by Raypak's manual. The elements do not energize below 15 GPM, and above 60 GPM Raypak calls for a manual bypass valve.
How much heat does the Raypak E3T 30 kW 208V put out?
102,364 BTU/hr, by Raypak's table for the ELS-R-0030-3-TI. Our pool heater size calculator works out what your pool or spa needs.
What warranty does Raypak give the E3T ELS-R-0030-3-TI?
One year, parts and labor, under Raypak's pool heater limited warranty for the E3T 3-phase models. The electrical heating elements are covered for 90 days.
Where is the manual for the Raypak E3T 019145?
Under Downloads on this page. It is Raypak's Electric Pool and Spa Heater (3-Phase) Installation and Operation Manual, part number 242011.
