Raypak 002003F genuine OEM propane and natural gas pilotRaypak Genuine OEM Propane and Natural Gas Pilot, 002003F In stock$8499
Raypak 002003F genuine OEM propane and natural gas pilot
Shop all Raypak

Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F

Ask a questionMPN 002003F
$8499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Raypak part 002003F, the OEM pilot rather than a generic substitute.
  • Propane and natural gas one pilot covers both fuels.
  • IID heaters listed for the 53A, 53B, 055A and 055B intermittent ignition models.
  • Wider coverage also catalogued for Versa 55A and 55B, Versa 155A, 155B and 155C, and RP2100 R185A through R405A heaters built 1993 to 1998.
  • Ignition trouble a worn pilot is a common cause of a heater that clicks but will not light or that drops out after lighting.
  • Parcel shipping a small part that ships by standard parcel.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F, SKU RAY-151-3523. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak

Genuine OEM Propane and Natural Gas Pilot, 002003F

$8499
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347
Raypak

Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347

$29699
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak

Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F

$25899
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak

Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345

$33499
Raypak Genuine OEM Temperature Sensor Kit, 009577F
Raypak

Genuine OEM Temperature Sensor Kit, 009577F

$6299
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F
Raypak

Inlet/Outlet Header Complete with ProTek Shield, 017959F

$42099
Raypak Genuine OEM Unitherm Governor for Polymer Heat Exchanger, 006719F
Raypak

Genuine OEM Unitherm Governor for Polymer Heat Exchanger, 006719F

$7099
Subtotal

Similar products

Other products people compare with this one.

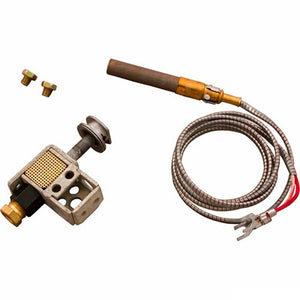

Raypak 600575B propane millivolt pilot with generator Raypak Genuine OEM Propane Pilot with Generator, 600575B$10699 Raypak 006723F 2 in. PVC connector and nut set for pool heaters Raypak Genuine OEM 2 in. PVC Connector and Nut, 006723F$5499 Raypak 006715F Capron header bypass kit with valve, dam, shaft and spring Raypak Genuine OEM Bypass Kit with Valve, Dam, Shaft and Spring, 006715F$6099 Raypak 005393F 2 inch CPVC adapter kit for Versa pool heaters Raypak Genuine OEM 2 inch CPVC Adapter Kit for 155B/C, R185 and R265 Versa Pool Heaters, 005393F$8999 Raypak 062234B unitherm governor thermal bypass for gas pool heaters Raypak Genuine OEM Unitherm Governor, 062234B$6299 Raypak 600893B 140 deg F high limit temperature control with black epoxy body Raypak Genuine OEM 140 Degree F Hi-Limit Control, 600893B$4899 Raypak 009492F switch and decal membrane for pool heater control panels Raypak Genuine OEM Switch Decal, 009492F$8899 Raypak 008135F genuine OEM air pressure switch 267A for digital low NOx pool heaters Raypak Genuine OEM Air Pressure Switch 267A, 008135F$6699 Raypak 009184F switch decal membrane kit for RP2100 digital gas heaters Raypak Genuine OEM Switch Decal Membrane Kit, 009184F$8999 Raypak 008091F 125 psi pressure relief valve for pool heaters Raypak Genuine OEM Pressure Relief Valve, 125 PSI, 008091F$8099
Raypak 009505 PoolStat cover with lock Raypak Genuine OEM Poolstat Cover/Lock, 009505$6099 Raypak 006716F genuine OEM Capron bypass valve Raypak Genuine OEM Bypass Valve, 006716F$4399 Raypak 600892B 135 deg F hi-limit control, red epoxy high limit gas shut-off Raypak Genuine OEM 135 Deg F Hi-Limit Control, 600892B$4699 Raypak 062237B genuine OEM pool heater pressure switch Raypak Genuine OEM Heater Pressure Switch, 062237B$6799 Raypak 007224F pressure relief valve, 125 psi Raypak Genuine OEM Pressure Relief Valve 125 PSI, 007224F$9099 Raypak SENSOR WELL KIT VERSA | 003765F Raypak SENSOR WELL KIT VERSA | 003765F$8699 Raypak Temperature Sensor 3 Wire RP2100 Non-Digital Analog Models | 005299B Raypak Temperature Sensor 3 Wire RP2100 Non-Digital Analog Models | 005299B$9499 Raypak HEADER GASKET VERSA 151 | 800075B Raypak HEADER GASKET VERSA 151 | 800075B$6299 Raypak 003899F propane gas combination valve, 1/2 inch, for millivolt pool heaters Raypak Genuine OEM Propane Gas Combination Valve For Model 53, 53A, 406A Millivolt Pool Heater, 1/2", 003899F$30599 Raypak 003898F 1/2 inch natural gas combination valve Raypak Genuine OEM 1/2" Natural Gas Combination Valve, 003898F$30599

Product details

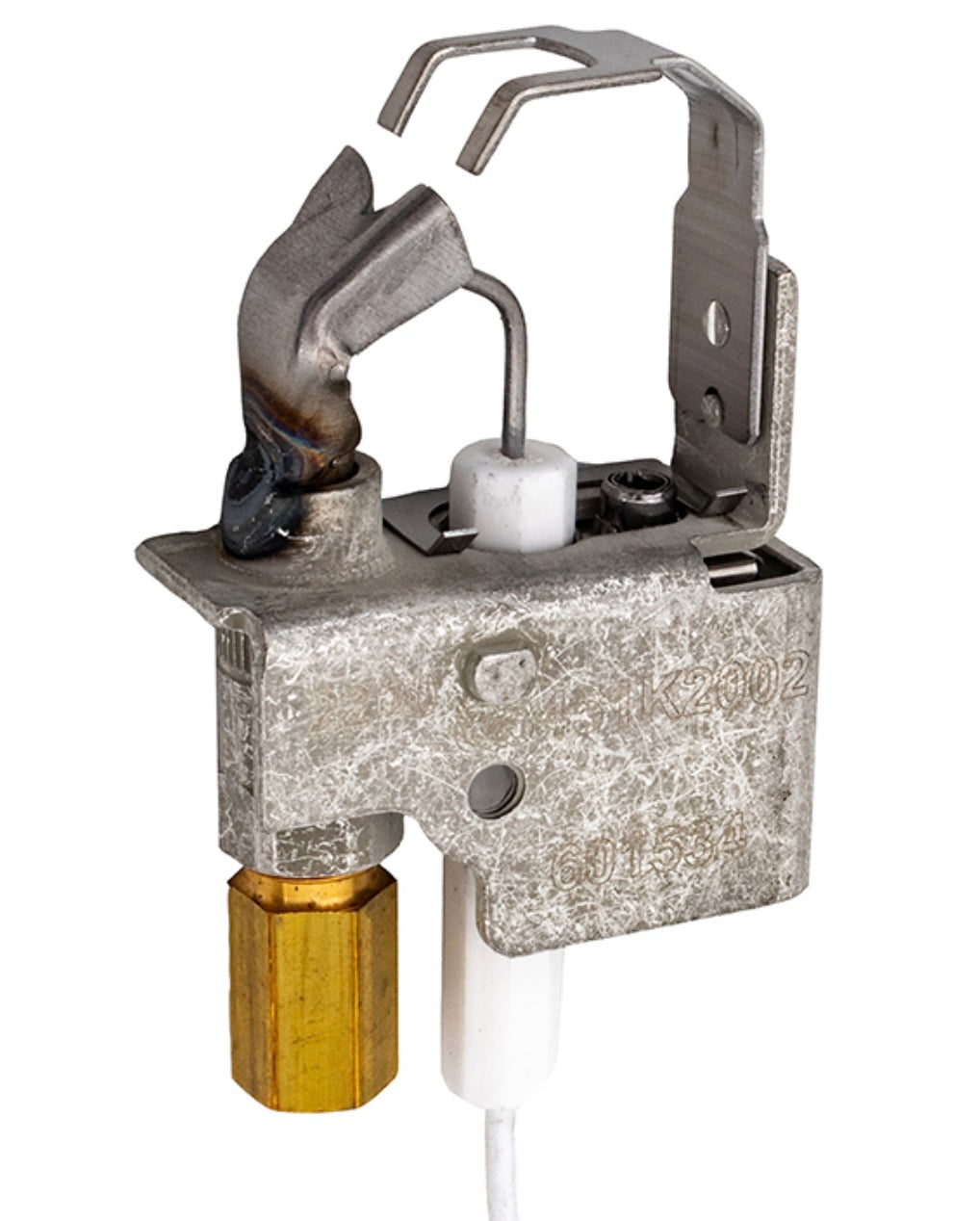

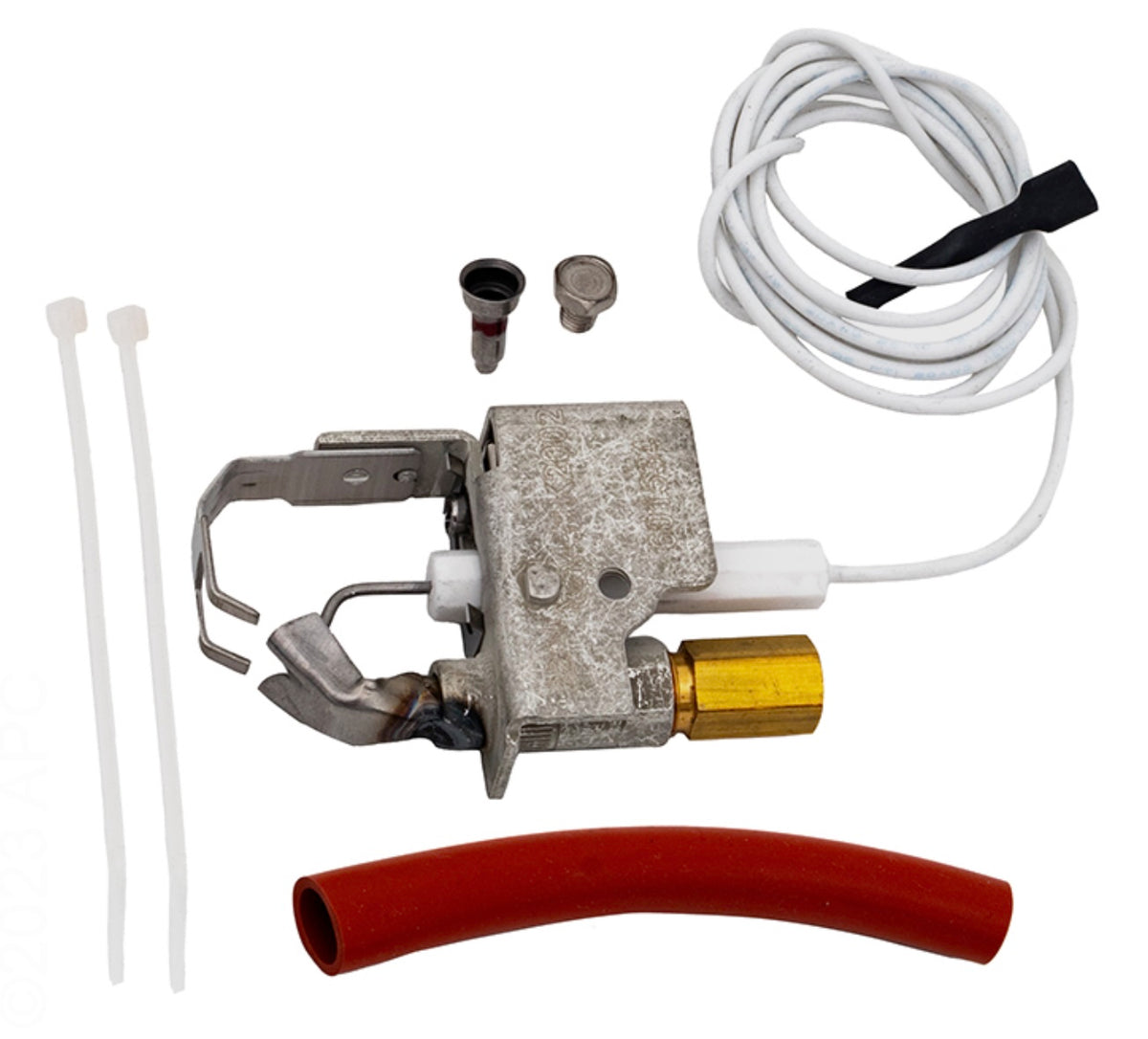

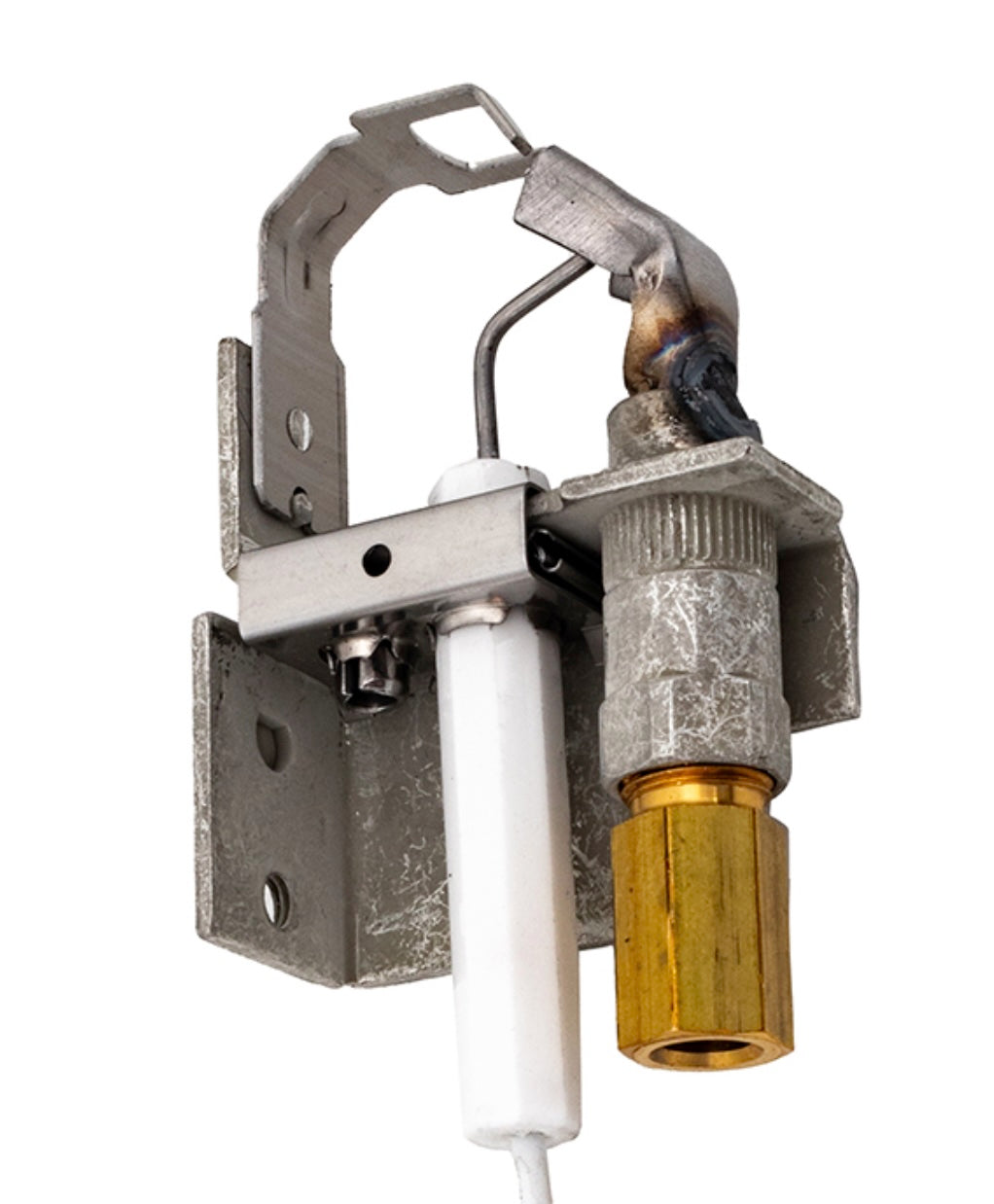

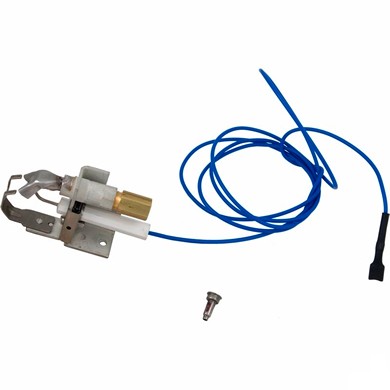

The Raypak 002003F is the genuine pilot for Raypak propane and natural gas pool heaters with intermittent ignition. One part covers both fuels, which saves sorting out which version you have.

Where it fits

Raypak lists the 002003F for the 53A, 53B, 055A and 055B IID heaters. It is also catalogued for the Versa 55A and 55B, the Versa 155A, 155B and 155C, and the RP2100 R185A through R405A heaters manufactured from 1993 to 1998. Check the model on your rating plate and compare the old pilot before ordering.

When to replace it

A pilot that has burned back or fouled is one of the usual reasons an IID heater sparks without lighting, or lights and drops out a moment later. Swapping the pilot is a routine repair, and using the OEM part keeps the flame shape and sensing the control expects.

Specifications
Brand Raypak
Manufacturer part number 002003F
UPC 840891000907
Part type Pool heater part
Fuel Propane and natural gas
Fits Raypak 53A, 53B, 055A, 055B IID pool heaters
Also listed for Raypak Versa 55A, 55B; Versa 155A, 155B, 155C; RP2100 R185A through R405A (1993 to 1998)
Shipping weight 0.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Raypak

A technician with a tool belt beside Raypak heaters at a pool. Designed to perform, built to last. Raypak

Raypak heaters

Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219 Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217 Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Shop Raypak heaters

Genuine Raypak parts

Raypak Genuine OEM Protek Shield Module Assembly, 017960F Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345 Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Shop Raypak parts
Gas pool heaters: a red and black Raypak AVIA heaterHeat pumps: a Raypak Crosswind V heat pumpHeater parts: a technician with a tool belt in front of Raypak heaters
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak

Customer reviews

More from Raypak

Raypak 100-10000347 heat pump digital control board Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699 Raypak 017960F Protek Shield module assembly for Raypak pool heaters Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5699 Raypak Crosswind V 138,000 BTU pool heat pump TWPH-8550EHT08, quarter view Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000 Web Price Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900 Web Price Raypak 003900F IID natural gas electronic combination valve Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25899 Raypak WeatherKing TWPH-6560EHT01 118K BTU pool and spa heat pump Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800 Web Price Raypak 100-10000345 Kit-PC 3-wire board controller IID for 206A-408 pool heaters Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$33499 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900 Web Price Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900 Web Price
Raypak 100-10000414 boiler burner 10-pack Raypak Boiler Burner 10-Pack, 100-10000414$4899 Raypak 017959F inlet/outlet header complete with ProTek Shield for 206A to 407A heaters Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$42099 Raypak logo, placeholder image for the H000329 100K temp sensor kit Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10699 Raypak 010394F burner tray with burners for the 406A pool heater Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899 Raypak 010060F copper tube bundle heat exchanger for 266A and 267A heaters Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199 Raypak 014931F cupro-nickel tube bundle for 266A polymer header heater Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,33299 Raypak E3T 11 kW 240V electric pool and spa heater, Ruud ELS-D-0011-1-Ti, part 017122 Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400 Web Price Raypak 019209F burner tray with LP burners, sea level, for heat exchanger models 399 and 406A Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000 Web Price Raypak 010059F copper tube bundle heat exchanger for 206A and 207A pool heaters Raypak Copper Tube Bundle R206A, R207A, 010059F$80899

Questions and answers

What people ask about this product, answered by our pool techs.

Does it work on propane as well as natural gas?
Yes. Raypak lists the 002003F for both propane and natural gas heaters, so you do not need a different pilot for each fuel.
Which heaters does it fit?
It is the pilot for the 53A, 53B, 055A and 055B IID heaters, and it is also catalogued for the Versa 55A and 55B, the Versa 155A, 155B and 155C, and the RP2100 R185A through R405A heaters made between 1993 and 1998.
Is this a standing pilot?
It is listed for IID heaters, meaning intermittent ignition. The control lights the pilot electronically on each call for heat rather than keeping it burning all the time.
How do I know the pilot is the problem?
Typical signs are a heater that sparks but never lights, or one that lights and then shuts down. Confirm your heater model on its rating plate and compare the old pilot to the part number before ordering.
