Raypak Copper Tube Bundle R206A, R207A, 010059F In stock$80899
Raypak Copper Tube Bundle R206A, R207A, 010059F
$80899
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Genuine Raypak the OEM 010059F tube bundle for the polymer header heat exchanger in 206A and 207A residential heaters.
- Residential only fits heaters whose model numbers begin P-R (Raypak), P-M (Rheem) or P-D (Ruud), not commercial C-R models.
- Ready to reassemble ships with the baffle, a flange nut kit and two o-ring gaskets.
- Cupro nickel upgrade part 010364F is the more durable cupro nickel bundle and interchanges directly with 010059F.
- Not the ASME bundle commercial metal header heaters take 010055F, which does not interchange with this part.
- Check the plate first the identification plate behind the front cabinet door carries the full model number that confirms fit.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
Copper Tube Bundle R206A, R207A, 010059F
$80899
Subtotal
Similar products
Other products people compare with this one.
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199
Raypak Genuine OEM Copper Tube Bundle 406/407, 010062F$1,02099
Raypak Genuine OEM Tube Bundle Copper ASME 206A, 010055F$1,02399
Raypak Heat Exchanger Copper Tube Bundle for 266A and 267A, 017975F$1,12799
Raypak Copper Heat Exchanger Tube Bundle for 206A and 207A, 017974F$1,13899
Raypak Genuine OEM Heat Exchanger Tube Bundle, Copper ASME Commercial, 006733F$1,09899
Raypak TUBE BUNDLE 336A COPPER ASME | 010057F$1,15799
Raypak 206A Tube Bundle Cupro Nickel ASME, 010368F$1,14799
Raypak Tube Bundle Cupronickel 206A/207A, 017978F$1,20699
Raypak Genuine OEM Tube Bundle (R265), 006709F$90399
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899
Raypak 406A Burner Tray Without Burner 010398F$60099
Raypak Burner Tray with Burners for Model 266A Pool Heater, 010392F$62499
Raypak Burner Tray with Burners for 336A Pool/Spa Heater, 010393F$73999
Raypak D-2 Indoor Power Vent 120V for Models 206A-408, 010745$79399
Raypak 120V 336A-408 D-2 Indoor Power Vent, 010744$89199
Raypak Inlet/Outlet Capron Header Assembly with Gasket for R185A, R265A, R335A, 006706F$41499
Raypak Genuine OEM Copper Nickel Tube Bundle for Model PR206A, PR207A Digital Pool Heater, 010364F$1,25099
Raypak Genuine OEM Tube Bundle ASME (406A), 010058F$1,23584
Raypak Heat Exchanger Tube Bundle Cupro Plastic HDR PR265 | 010365F$1,30599
Product details

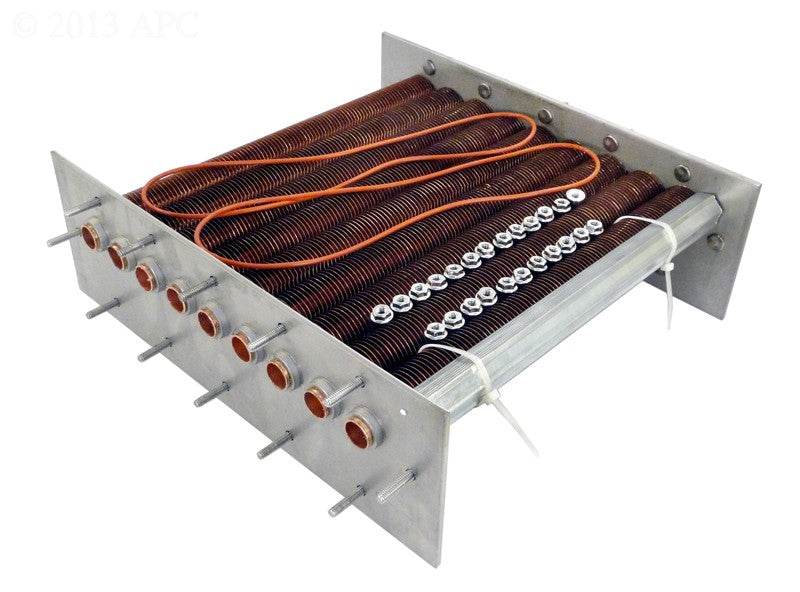

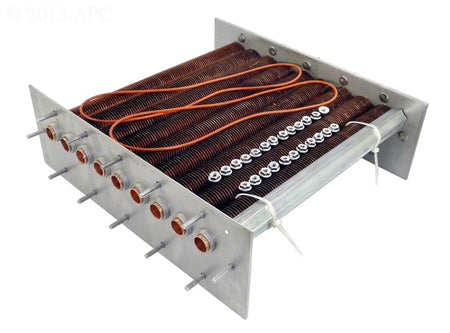

The Raypak 010059F is the genuine replacement copper tube bundle for residential 206A and 207A digital heaters built with polymer, or plastic, headers. It is the heat exchanger core of the heater: pool water passes through the copper tubes while the burner tray heats them from below. The kit includes the baffle, a flange nut kit and two o-ring gaskets so the exchanger goes back together in one job.
Residential and commercial bundles are not the same part
This bundle fits residential heaters only. Residential model numbers start with P-R for Raypak, P-M for Rheem and P-D for Ruud. Commercial heaters start with C-R and use metal ASME headers, and their tube bundle is part 010055F, which will not fit here. Before ordering, open the front cabinet door and read the full model number off the identification plate. The serial number on the same plate gives the build date, with the year in the first two digits and the month in the next two.
Copper or cupro nickel
If you want more resistance to aggressive water, Raypak part 010364F is the cupro nickel version of this bundle. It interchanges directly with 010059F on the same heaters.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 010059F |
| UPC | 840891019527 |
| Type | Copper tube bundle, heat exchanger |
| Header type | Polymer (plastic) |
| Fits | Raypak 206A and 207A residential heaters with polymer headers |
| Residential model prefixes | P-R (Raypak), P-M (Rheem), P-D (Ruud) |
| Cupro nickel alternative | 010364F, interchangeable |
| Commercial ASME bundle | 010055F, not interchangeable |
| Included | Baffle, flange nut kit, 2 o-ring gaskets |
| Shipping weight | 32 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5699
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25899
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$33499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4899
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$42099
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8499
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10699
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,33299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
How do I know whether my heater takes this bundle or the commercial one?
Open the front cabinet door and read the identification plate. Residential model numbers begin with P-R for Raypak, P-M for Rheem or P-D for Ruud, and those heaters use this 010059F bundle when they have polymer headers. Commercial models begin with C-R and take the 010055F ASME bundle, which does not interchange.
Is there a longer lasting option than copper?
Yes. Raypak part 010364F is a cupro nickel tube bundle that interchanges directly with 010059F and holds up better to unbalanced water chemistry.
What comes in the box?
The copper tube bundle itself plus the baffle, a flange nut kit and two o-ring gaskets, so the heat exchanger can be put back together without a separate hardware order.
How can I tell how old my heater is?
The serial number on the identification plate encodes the build date. The first two digits are the year and the next two are the month of manufacture.
