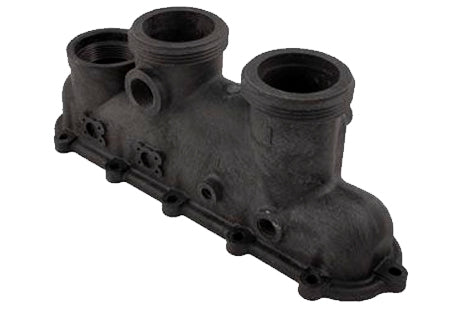

Raypak Inlet/Outlet Capron Header Assembly with Gasket for R185A, R265A, R335A, 006706F In stock$41499
Raypak Inlet/Outlet Capron Header Assembly with Gasket for R185A, R265A, R335A, 006706F
$41499
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Genuine Raypak part The factory 006706F header assembly, not an aftermarket substitute.
- Gasket included The header arrives with its gasket, so there is no separate seal to chase down.
- Capron header The Capron type header assembly used on these Raypak models.
- Listed for three models R185A, R265A and R335A. Read the model plate on your heater before you order.
- Inlet and outlet in one This is the in and out header, the end of the heat exchanger where the pool plumbing lands.
- Replaced, not repaired A header that weeps or has split is changed as an assembly rather than patched.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
Inlet/Outlet Capron Header Assembly with Gasket for R185A, R265A, R335A, 006706F
$41499
Subtotal
Similar products
Other products people compare with this one.
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699
Raypak Indoor Stack Top, 7 in., for 266 and 267 Heaters, 009839$21074
Raypak Genuine OEM Propane Gas Combination Valve For Model 53, 53A, 406A Millivolt Pool Heater, 1/2", 003899F$30599
Raypak Outdoor Stack Highwind Top 9" for Model R406A, R407A, R408, 009837$29199
Raypak 406A Burner Tray Without Burner 010398F$60099
Raypak Combination Air Blower Kit 207A-407A, Genuine OEM, 010042F$32199
Raypak 010088F Genuine OEM Refractory Common, Left & Right (Both Sides)$20999

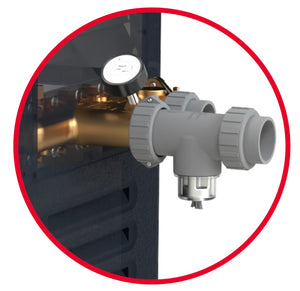

Raypak Genuine OEM ProTek Shield Adapter Retrofit Kit, 018006F$21499

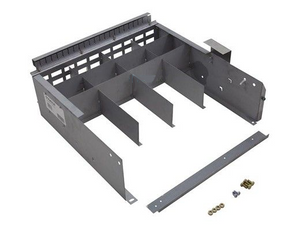

Raypak 336A Burner Tray Without Manifold and Burners, 010423F$39999
Raypak Genuine OEM 1/2" Natural Gas Combination Valve, 003898F$30599
Raypak Genuine OEM Refractory, Front & Rear, 406A, 010092F$26599

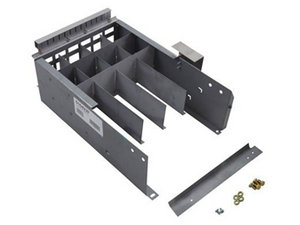

Raypak 266A Burner Tray without Manifolds and Burners, 010422F$38199
Raypak Genuine OEM Refractory Kit, Front & Rear, 266A, 010090F$23999
Raypak Burner Tray with Burners for Model 266A Pool Heater, 010392F$62499

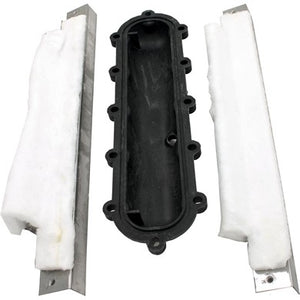

Raypak Genuine OEM Return Header with Gaskets, 006707F$15299
Raypak Polymer Return Header for 206A/266A/336A/406A Pool and Spa Heater, 015095F$14299
Raypak Burner Tray with Burners for 336A Pool/Spa Heater, 010393F$73999
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899
Raypak 8" Indoor Stack Top Kit for R336A and R337A, 009840$19999
Raypak Genuine OEM Control Bezel with Switch Decal, 009491F$19599
Product details

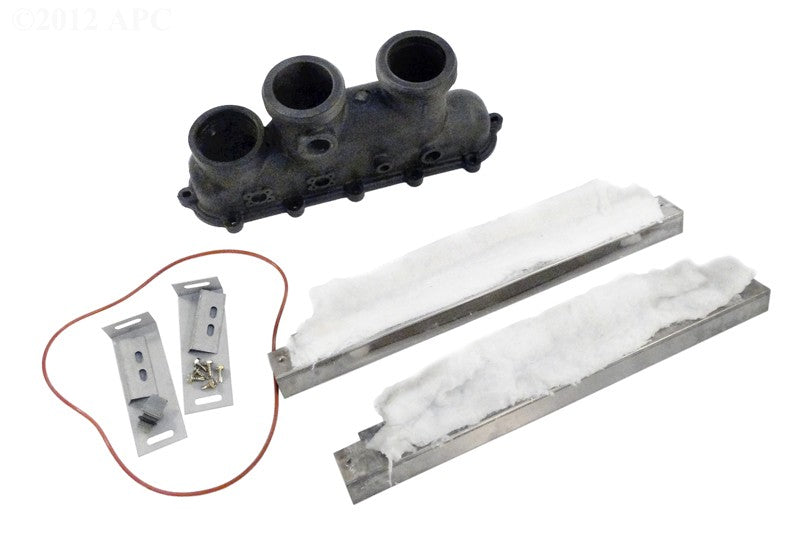

The Raypak 006706F is the genuine inlet and outlet header assembly for the R185A, R265A and R335A pool heaters, supplied with its gasket. It is the Capron type header, and it is the piece the pool plumbing connects to at the heat exchanger.
When to replace it
Headers fail by cracking or weeping rather than by wearing out gradually. Water running down the plumbing end of the heater, or a hairline split you can see once the panel is off, is a header problem. It is replaced as a complete assembly, which is why this part is sold that way and why the gasket comes with it.
Check your model first
The part is listed for the R185A, R265A and R335A. Raypak used a lot of similar looking headers across the line, so read the model number off the rating plate and match it before ordering rather than going by appearance.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 006706F |
| UPC | 840891000938 |
| Type | Inlet and outlet header assembly, Capron |
| Included | Gasket |
| Fits | Raypak R185A, R265A, R335A |
| Part type | Pool heater part |
| Shipping weight | 4.3 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5699
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25899
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$33499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4899
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$42099
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8499
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10699
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$93899
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$84199
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,33299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$38699
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
Does the gasket come with it?
Yes. Raypak 006706F is supplied with its gasket.
Will it fit an R405A or a B series heater?
This part is listed for the R185A, R265A and R335A. If you have an R405A or a B series heater, confirm that 006706F is the correct header for your model before ordering.
Where does this part sit on the heater?
It is the inlet and outlet header, the end of the heat exchanger where the pool plumbing connects to the heater.
How do I know the header is the problem?
Water weeping or running from the plumbing end of the heater, or a visible crack in the header itself, points at the header rather than at the exchanger tubes.
