Balboa G8220 VL200 four button topside spa keypad without overlayBalboa 4-Button Topside VL200 Keypad, G8220 In stock$13499

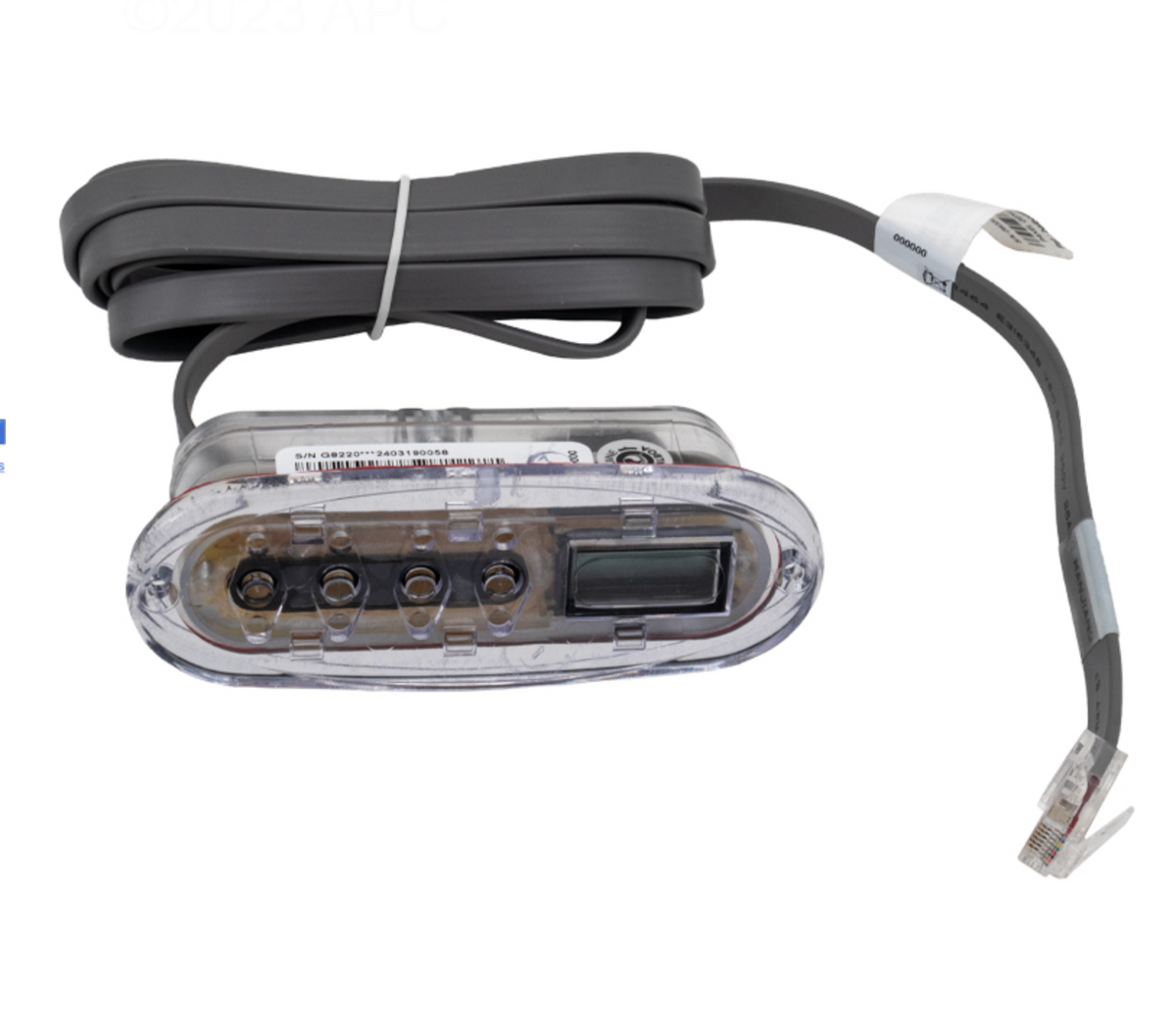

Balboa G8220 VL200 four button topside spa keypad without overlay
Shop all Balboa

Balboa 4-Button Topside VL200 Keypad, G8220

Ask a questionMPN G8220
$13499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Balboa Water Group The factory G8220 topside control, not a generic panel.
  • Four button layout Covers the essential spa functions such as temperature, jets, light and blower.
  • Supplied without an overlay You reuse the existing graphic overlay or fit a custom one.
  • Mini-oval body The compact shape suits tight panel spaces and many spa cabinet openings.
  • LCD window Shows temperature and system status at a glance.
  • Cable already attached An RJ45 eight wire cable comes fitted, so it plugs straight into a compatible pack.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Balboa 4-Button Topside VL200 Keypad, G8220, SKU BBG8220. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Balboa 4-Button Topside VL200 Keypad, G8220
Balboa

4-Button Topside VL200 Keypad, G8220

$13499
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26199
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Subtotal

Similar products

Other products people compare with this one.

Jandy 6796 AquaLink RS two speed motor relay kit Jandy AquaLink RS Remote 2-Speed Motor Relay Kit, 6796$8999 Gecko IN.K300-1OP LCD spa keypad control and overlay, 4 button 1 pump Gecko IN.K300-1OP LCD Spa Keypad Control and Overlay, 1 Pump 4-Button 10' Cable, 0607-008039$11599 Pentair 520272 air, water and solar temperature sensor with 20 ft cable Pentair Air, Water, Solar Sensor with 20 ft Cable, 520272$8399 Jandy 6586 dual heater interface kit for AquaLink RS dual equipment systems Jandy Dual Heater Interface Kit, 6586$14599 Hayward HLRELAY relay module for the OmniLogic base system Hayward Relay Module for OmniLogic, HLRELAY$10999 Pentair RLYSC3HP 3 HP 25 amp power relay for ComPool LX220 and LX820 solar control systems Pentair Power Relay for ComPool LX220 and LX820 Solar Control Systems, 3 HP 25 Amp, RLYSC3HP$16499 Pentair 520355 faceplate kit for surface mount iS10 ten-function spa-side remote Pentair Genuine OEM Faceplate Kit for Surface Mount iS10 Ten-Function Spa-Side Remote, 520355$6099 Hayward Goldline | Hayward | Pro Logic® Single Body 4 Relays | PL-P-4 Hayward Goldline | Hayward | Pro Logic® Single Body 4 Relays | PL-P-4$20299 Jandy 8026 AquaLink RS OneTouch outdoor enclosure with see-through cover Jandy AquaLink RS OneTouch Outdoor Enclosure, 8026$21099 Pentair 522101 solar temperature sensor Pentair Genuine OEM Solar Temperature Sensor, 522101$4099
Aqua Creek HB00-U017 two button Linak remote with up and down controls Aqua Creek 2-Button Linak Remote, Up and Down, HB00-U017$24600 SuperPro 25099-000-000 slim gunite spa air control assembly in white SuperPro 1/2" S White Slim Gunite Spa Air Control Assembly, 25099-000-000$2099 Hayward W3GATEWAYX1 OmniX Wifi Gateway, front view Hayward OmniX Wifi Gateway, W3GATEWAYX1$24999 Web Price Pentair 521109 IntelliComm II interface adapter Pentair Genuine OEM IntelliComm II Interface Adapter, 521109$27399 Pentair 521441 load center for IntelliTouch and EasyTouch control systems Pentair 521441 Load Center for IntelliTouch, IntelliChlor SCG Transformer, EasyTouch and EasyTouch PL4/PSL4 Control System$28799 Pentair 521885 iS4 four-function spa-side remote, white, 100 ft. cable Pentair Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885$30999 Pentair 521892 iS4 black four function spa-side remote control Pentair Black iS4 4-Function Spa-Side Remote Control with 100 ft Cord, 521892$31699 Intermatic PF1102T freeze protection timer with thermostat in a Type 3R metal enclosure Intermatic Freeze Protection Timer with Thermostat for 240V Applications, Type 3R Metal Enclosure, PF1102T$31999 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$33099 Pentair MODULE VLV TO ADD 3 ACTUATORS | 520285 Pentair MODULE VLV TO ADD 3 ACTUATORS | 520285$33999

Product details

The Balboa G8220 is the VL200 four button topside keypad, the genuine Balboa Water Group control panel. It is supplied without an overlay.

Why no overlay

The overlay is the printed graphic that sits over the buttons, and it is the part that carries the labeling for a particular spa. Selling the keypad without one means the existing overlay can be reused where it is still in good condition, or a custom one fitted where the spa was branded. It also means you should plan for an overlay if the old one is damaged, since the keypad on its own arrives blank.

Layout and connection

The panel is the mini-oval shape, which is what makes it fit narrow cabinet openings where a larger topside will not go. Four buttons cover the essentials on a spa, temperature and the jets, light and blower, and the LCD window shows temperature and system status. An RJ45 eight wire cable is already attached, listed at roughly 6 to 7 ft, so it plugs into a compatible pack without any wiring work.

Before you order

It is listed as widely compatible with Balboa VS and GS spa control systems, but Balboa produced a great many topside variants over the years. Check the number on the back of the panel you are replacing against G8220, and check that the cable length reaches your pack.

Specifications
Brand Balboa
Manufacturer part number G8220
Type Topside keypad
Model VL200
Buttons 4
Panel style Mini-oval
Display LCD display window
Overlay Not included
Cable Attached RJ45 eight wire, about 6 to 7 ft
Compatibility Balboa VS and GS spa control systems
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Balboa

Balboa 5235212-S Ultimax spa pump, 4HP 230V two speed with 2 in. suction port Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S$33899 Balboa 4239113-S Dura-Jet 2.0 HP two speed 48 frame spa pump, 115V Balboa Dura-Jet Pump, 48 Frame 2.0 HP 2 Speed 115V, 4239113-S$30999 Balboa Therm Products C2400-C333-01 flow thru heater, 4kW 240V Balboa Therm Products Flow Thru Heater 4kW 240V Replacement, C2400-C333-01$14699 Balboa Ultimax 5235208-S 2HP 230V two speed spa pump Balboa Ultimax Pump, 2HP 230V, 2 Speed, 2 Inch Suction Port, 5235208-S$33799 Balboa C3473-1 4kW 240V low flow trombone heater for Caldera and Watkins spas Balboa Caldera/Watkins 4kW 240V Low Flow Trombone Heater, C3473-1$23799 Balboa G7432 BP series FloThru heater, 4.0 kW 230V titanium Balboa BP Series FloThru Heater 4.0kW 230V with PnC, Titanium, G7432$17999 Balboa G7414 FloThru heater VS100, 4.0kW, 230V Balboa G7414 FloThru Heater VS100, 4.0kW, 230V$16399 Balboa G7411 FloThru heater, 4.0kW, for BP100 spa control systems Balboa G7411 FloThru Heater BP100 4.0kW$17900 Web Price Balboa G7415 FloThru spa heater assembly, 4.0kW 230V, without mounting studs Balboa G7415 FloThru Heater 4.0kW, 230V, without Mounting Studs, G7415-01$17900 Web Price Balboa G7418 FloThru LE 4.0kW 230V heater with PS sensor Balboa FloThru Heater LE 4.0kW 230V with PS Sensor, G7418$15699
Balboa 9845WW Cyclone Luxury 4-1/8 inch directional jet insert, face view Balboa Cyclone Luxury Jet Insert, 4-1/8" Directional, 9845WW$1299 HydroQuip 80-11774-K J/J/L/W/M/C spa control panel overlay Balboa HydroQuip J/J/L/W/M/C Control Panel Overlay, 80-11774-K$2799

Questions and answers

What people ask about this product, answered by our pool techs.

Does it come with an overlay?
No. It ships without an overlay so you can reuse the graphic you already have or fit a custom one.
What does the cable connect to?
The keypad has an RJ45 eight wire cable already attached, listed at roughly 6 to 7 ft, which plugs into compatible Balboa VS and GS spa packs.
Which spa systems does it suit?
It is listed as widely compatible with Balboa VS and GS spa control systems. Confirm against your pack before ordering, since Balboa built many topside variants.
What can the four buttons do?
They cover the essential functions on a spa such as setting temperature and switching jets, light and blower, which is what the VL200 layout was designed around.
