Pentair 522474 IntelliChem container tank mount pump upgrade kitPentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474 In stock$25899
Pentair 522474 IntelliChem container tank mount pump upgrade kit
Shop all Pentair

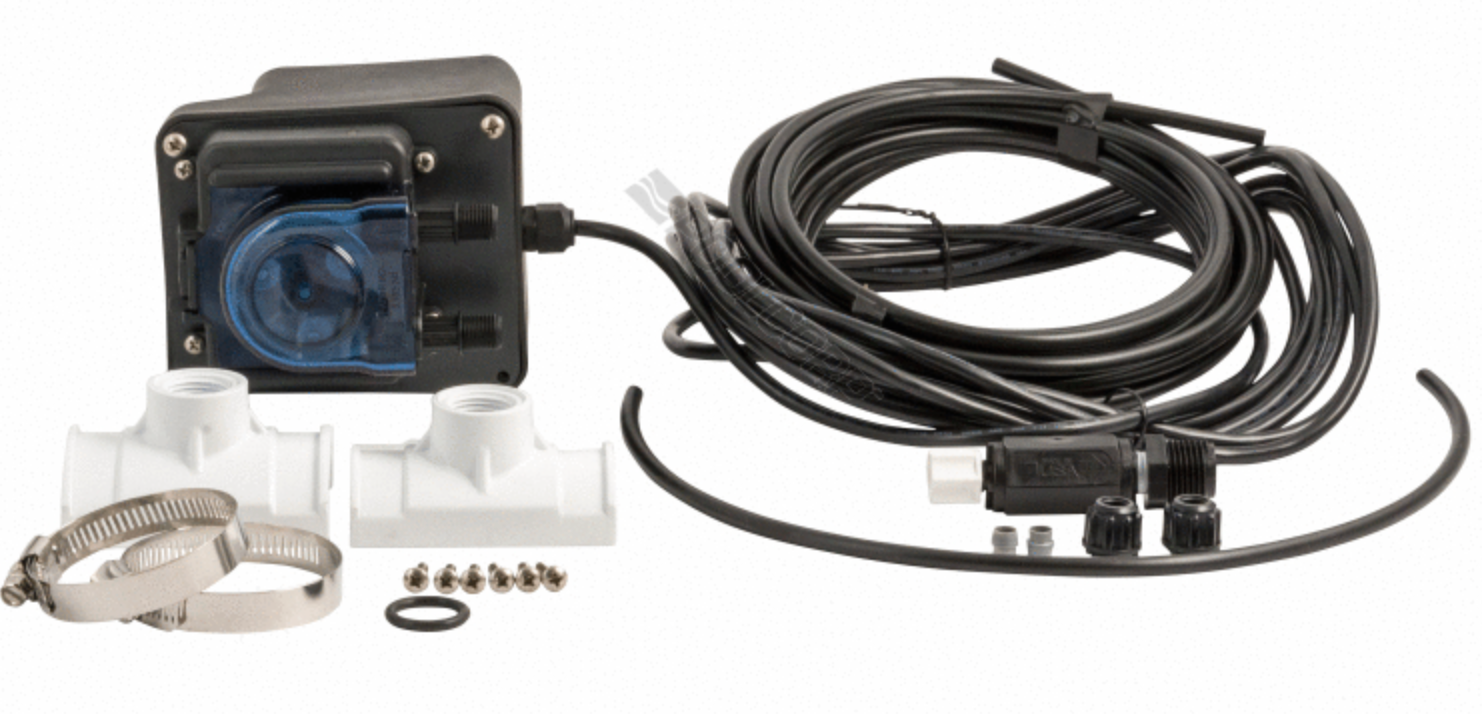

Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

Ask a questionMPN 522474
$25899
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • For older IntelliChem containers adds a tank mounted pump to Pentair containers 521378 (acid) and 521397 (chlorine), which were sold without one.
  • Tank mounted pump mounts the feed pump on the chemical container.
  • Genuine Pentair part number 522474.
  • Upgrade path brings an older container with no pump to the tank mounted pump arrangement.
  • Chemical feed handles dosing from the container to the pool return.
  • Pairs with IntelliChem accessories tubing, sensors and flow switch kits are sold separately.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474, SKU PAC-451-2474. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$30299
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$16799
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Hayward Digital Control Interface Assembly, SPX3200LCD
Hayward

Digital Control Interface Assembly, SPX3200LCD

$44599
Subtotal

Similar products

Other products people compare with this one.

Pentair 754000340 clear flow cell jelly jar for the AK1200 IntelliChem chemical controller Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340$30299 Pentair 522186Z pH sensor for IntelliChem chemical controller Pentair pH Sensor for IntelliChem Chemical Controller, 522186Z$14199 Pentair 522187Z IntelliChem ORP sensor without wire Pentair IntelliChem ORP Sensor, without Wire, 522187Z$23099 Rola-Chem 550183 flow switch for globe flow cell Rola-Chem Flow Switch for Globe Flow Cell, 550183$14699 Aquasol S010 ORP electrode with BNC connector and 10 ft. cable Aquasol ORP Electrode Cable with BNC Connector, S010$21599 IPS Controllers SXORP ORP sensor with platinum tip and yellow top IPS Controllers ORP Sensor with Platinum Tip, SXORP$20700 Web Price Rola-Chem 550135 heavy duty pH probe with 8 ft lead Rola-Chem 8 ft Heavy Duty pH Probe, 550135$22199 Pentair 522711 IntellipH controller unit Pentair IntellipH Controller Unit, 522711$38299 IPS Controllers SXPH pH sensor with blue top IPS Controllers pH Sensor, SXPH$20700 Web Price Aquasol S020 pH electrode with 10 ft cable and BNC connector Aquasol pH Sensor with 10' Cable, S020$19399
Rola-Chem 550136 heavy duty ORP probe with 8 ft lead Rola-Chem ORP Probe Heavy Duty, 550136$23099 IPS Controllers FC100G Blue/Clear complete flow cell with flow switch IPS Controllers Blue/Clear Complete Flow Cell with Flow Switch, FC100G$24500 Hayward GLX-SD-FLOW pH and ORP Sense and Dispense water cell with valve Hayward pH/ORP Sense and Dispense Water Cell with Valve, GLX-SD-FLOW$25299 Pentair 521465Z IntelliChem chemical controller enclosure top Pentair IntelliChem Enclosure Top, 521465Z$31299 Pentair 522651 Stenner 10 GPD pump tube 5 pack for IntelliChem Pentair Stenner 10 GPD Pump Tube, 5 Pack for IntelliChem Chemical Controller, 522651$12999 IPS Controllers SXORPG gold tip ORP sensor for salt pools IPS Controllers ORP Sensor Gold Tip for Salt Pools, SXORPG$30299 Pentair Flow Cell Top for Acu-Trol AK1200 Chemical Controller, 754000330$15899 Pentair 754000440 IntelliChem flow switch magnet kit with 10 ft cord Pentair IntelliChem Flow Switch Magnet Kit, 10' Cord, 754000440$11799 Hayward CAX-20203 rotary flow sensor for CAT 1000 monitors Hayward Flow Monitoring Rotary Sensor for Select Cat 1000 Monitors, CAX-20203$41599 Pentair 744000260 pH sensor for Acu-Trol AK110 and AK600 chemical controllers Pentair pH Sensor for AK110 and AK600 Chemical Controllers, 744000260$41599

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair 522474 is the IntelliChem Container Tank-Mount Pump Upgrade Kit, which adds a tank mounted pump to Pentair's older IntelliChem containers that were sold without one, the 521378 acid container and the 521397 chlorine container.

What it does

IntelliChem reads pH and ORP and then feeds chemical to correct them. The older containers needed a separate external pump to do the feeding. This kit puts the tank mounted pump on the container itself, which brings it in line with the 522472 acid tank and 522473 chlorine tank that Pentair now sells with the pump built in.

Fit

Pentair lists this kit for the 521378 and 521397 containers. If your system is a controller only, with no containers, Pentair lists a separate upgrade kit for the controller, 522478Z, for use with the new tank mounted pumps. Check which of these parts your IntelliChem installation already has before ordering.

Care and related parts

Pentair recommends replacing peristaltic pump tubes every 6 months. Replacement pump tubes for the tank mounted pump are 522480, sold as a 2 pack, and a repair kit for the tank mounted pump is 522386. When feeding full strength muriatic acid, Pentair recommends a 1 to 1 dilution and always adding acid to water, and it suggests placing the containers off the equipment pad where possible.

Specifications
Brand Pentair
Manufacturer part number 522474
UPC 788379869298
Type Tank mounted pump upgrade kit
For use with Pentair IntelliChem acid container 521378 and chlorine container 521397, the older containers sold without a pump
Mounting Container tank mount
Related Pentair parts 522480 pump tubes (2 pack), 522386 tank mounted pump repair kit, 522478Z controller upgrade kit
Shipping weight 3.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which IntelliChem containers does the 522474 kit fit?
Pentair lists it for the older IntelliChem acid container 521378 and chlorine container 521397, which were sold without a pump. Pentair's current 522472 acid tank and 522473 chlorine tank have the pump built in, so check which parts your IntelliChem installation already has before ordering.
What does the kit do?
It provides the tank mounted pump arrangement for feeding chemical from the container under IntelliChem control.
Is tubing included?
Order IntelliChem tubing separately if your existing tubing is aged or the wrong length.
Is this a genuine Pentair part?
Yes, Pentair part number 522474.
