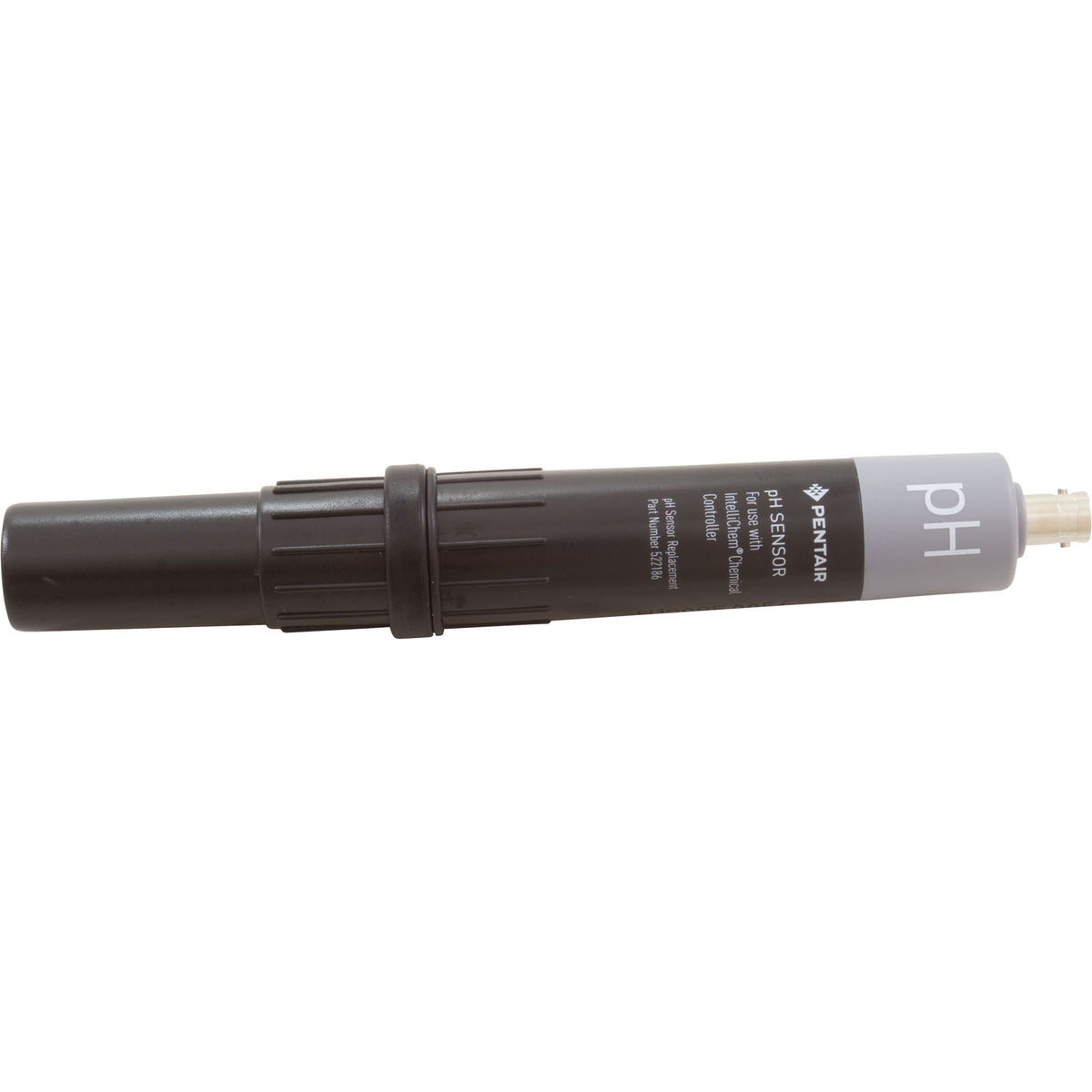

Pentair 522186Z pH sensor for IntelliChem chemical controllerPentair pH Sensor for IntelliChem Chemical Controller, 522186Z In stock$14199
Pentair 522186Z pH sensor for IntelliChem chemical controller
Shop all Pentair

Pentair pH Sensor for IntelliChem Chemical Controller, 522186Z

Ask a questionMPN 522186Z
$14199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair part The factory pH sensor for IntelliChem, part number 522186Z.
  • pH only This is the pH probe; the IntelliChem ORP sensor is a separate part.
  • Restores accurate readings A worn probe drifts, and IntelliChem acts on what it reads. A fresh probe brings the readings back.
  • Direct replacement Made for the IntelliChem chemical controller, no adapting.
  • Also listed as 522186 The same sensor appears under 522186 and 522186Z.
  • Routine service item pH probes wear out in normal use; keeping a spare avoids downtime.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair pH Sensor for IntelliChem Chemical Controller, 522186Z, SKU PAC-451-2186. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair pH Sensor for IntelliChem Chemical Controller, 522186Z
Pentair

pH Sensor for IntelliChem Chemical Controller, 522186Z

$14199
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218
Pentair

Genuine OEM Load Center IntelliChlor SCG Surge Board PCBA, 521218

$30299
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$16799
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Subtotal

Similar products

Other products people compare with this one.

Rola-Chem 550183 flow switch for globe flow cell Rola-Chem Flow Switch for Globe Flow Cell, 550183$14699 IPS Controllers SXORP ORP sensor with platinum tip and yellow top IPS Controllers ORP Sensor with Platinum Tip, SXORP$20700 Web Price Pentair 754000440 IntelliChem flow switch magnet kit with 10 ft cord Pentair IntelliChem Flow Switch Magnet Kit, 10' Cord, 754000440$11799 IPS Controllers SXPH pH sensor with blue top IPS Controllers pH Sensor, SXPH$20700 Web Price Aquasol S020 pH electrode with 10 ft cable and BNC connector Aquasol pH Sensor with 10' Cable, S020$19399 IPS VP501 VidaPure peristaltic pump squeeze tubes, 2-pack IPS VidaPure Pump Squeeze Tubes, 2-Pack, VP501$8799 Pentair 744000350 IntelliChem ORP sensor cable, 10 foot Pentair IntelliChem ORP Sensor Cable, 10', 744000350$7499 Pentair 522651 Stenner 10 GPD pump tube 5 pack for IntelliChem Pentair Stenner 10 GPD Pump Tube, 5 Pack for IntelliChem Chemical Controller, 522651$12999 Pentair Flow Cell Top for Acu-Trol AK1200 Chemical Controller, 754000330$15899 Pentair 522650 Stenner 10 GPD pump tube two pack for IntelliChem Pentair Stenner 10 GPD Pump Tube 2 Pack for IntelliChem Chemical Controller, 522650$7099
Aquasol S010 ORP electrode with BNC connector and 10 ft. cable Aquasol ORP Electrode Cable with BNC Connector, S010$21599 Pentair 744000290 three foot IntelliChem pH sensor cable Pentair 3' IntelliChem pH Sensor Cable, 744000290$6299 Pentair 744000280 IntelliChem pH sensor cable Pentair IntelliChem pH Sensor Cable, 744000280$6299 Rola-Chem 550135 heavy duty pH probe with 8 ft lead Rola-Chem 8 ft Heavy Duty pH Probe, 550135$22199 Pentair 522478Z upgrade kit for IntelliChem and IntellipH controller chemical container Pentair Upgrade Kit for IntelliChem and IntellipH Controller Chemical Container, 522478Z$6099 Pentair 522480 size C pump tube for IntellipH tank mounted OEM pump, 2 pack Pentair Size C Pump Tube for IntellipH Controllers, Tank Mounted OEM Pump, 2 Pack, 522480$5899 Hayward GLX-LFTUBE Sense and Dispense tank pickup tube assembly Hayward Sense and Dispense Tank Pickup Tube Assembly, GLX-LFTUBE$5499 Pentair 522187Z IntelliChem ORP sensor without wire Pentair IntelliChem ORP Sensor, without Wire, 522187Z$23099 Rola-Chem 550136 heavy duty ORP probe with 8 ft lead Rola-Chem ORP Probe Heavy Duty, 550136$23099 Pentair 521509 gray vent fitting for the IntellipH controller Pentair Vent Fitting for IntellipH Controller, Gray, 521509$4199

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair 522186Z is the replacement pH sensor for the Pentair IntelliChem chemical controller, listed in Pentair's parts catalog as the pH sensor in the IntelliChem flow cell replacement parts under the number 522186. IntelliChem adjusts pH based on what this probe reports.

What it does

IntelliChem monitors pool pH and feeds chemicals on programmable feed and mix cycles. A worn or damaged probe sends the controller bad readings, and the controller acts on them. A fresh probe brings the readings, and the chemical feed, back in line.

pH only

This is the pH sensor. Pentair lists the ORP sensor separately as 522187, and the flow cell with flow switch as 754000310. If both sensors are due, order both. The 10 ft pH sensor cable is a separate part, 744000280.

Before you order

If the pH reading on the controller no longer matches an independent test and calibrating does not close the gap, the probe is the usual cause. Match the number to your controller: Pentair 522186Z, also listed as 522186, UPC 788379865573.

Specifications
Brand Pentair
Manufacturer part number 522186Z
UPC 788379865573
Type pH sensor
Fits Pentair IntelliChem chemical controller
Also listed as 522186
Related IntelliChem parts ORP sensor 522187, pH sensor cable 744000280 (10 ft), flow cell with flow switch 754000310
Shipping weight 0.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the pH or the ORP sensor?
pH. The IntelliChem ORP sensor is a different part and is sold separately.
Which controller does it fit?
The Pentair IntelliChem chemical controller.
How do I know my pH probe needs replacing?
If the pH reading on the controller no longer matches an independent test and calibrating does not close the gap, the probe is the usual cause.
Is this a genuine Pentair part?
Yes. It is the Pentair part, number 522186Z, UPC 788379865573.
Ask your own question
