Hayward Universal H-Series W3H250FDP pool heater, front viewHayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP In stock$3,99900 Web Price

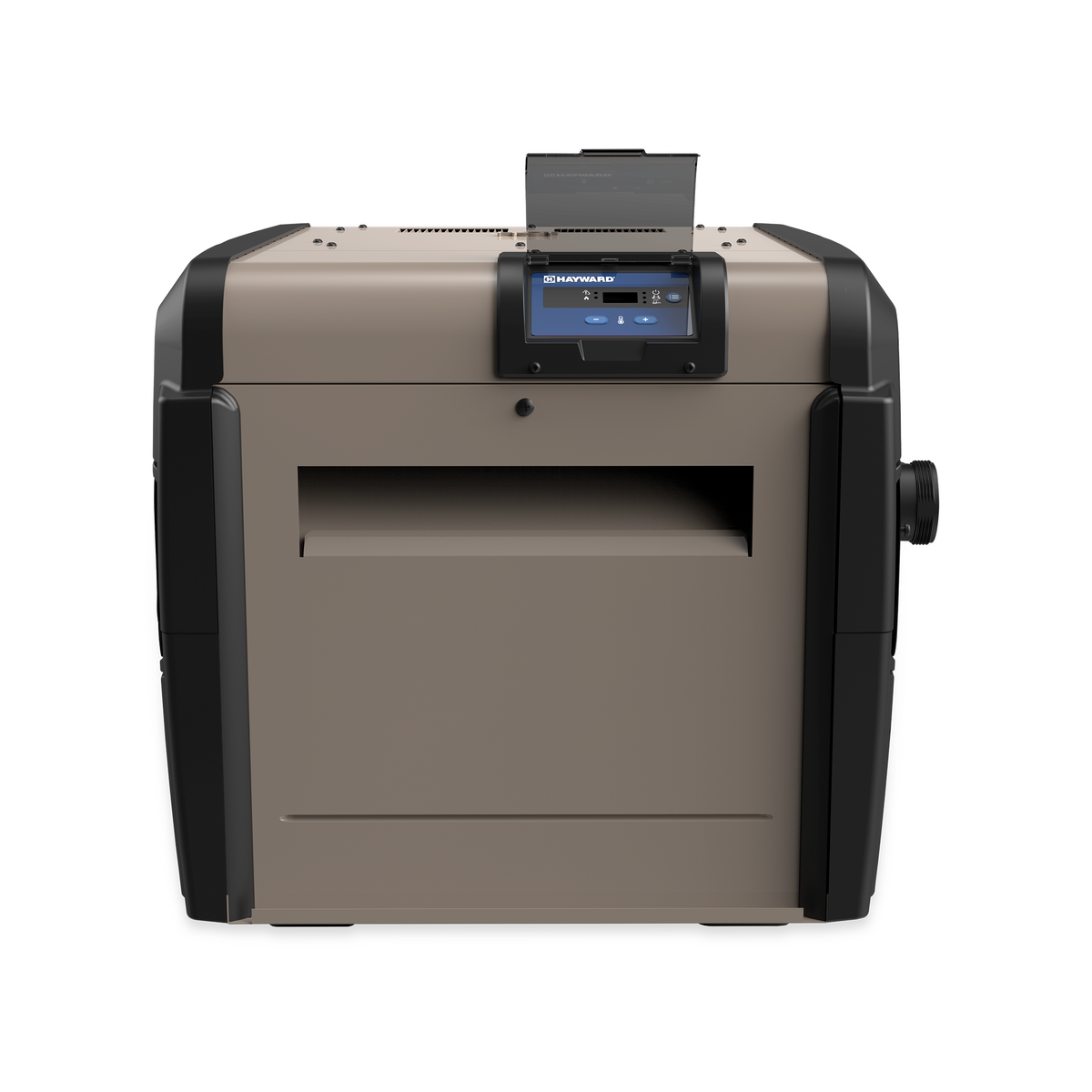

Hayward Universal H-Series W3H250FDP pool heater, front view
Shop all Hayward

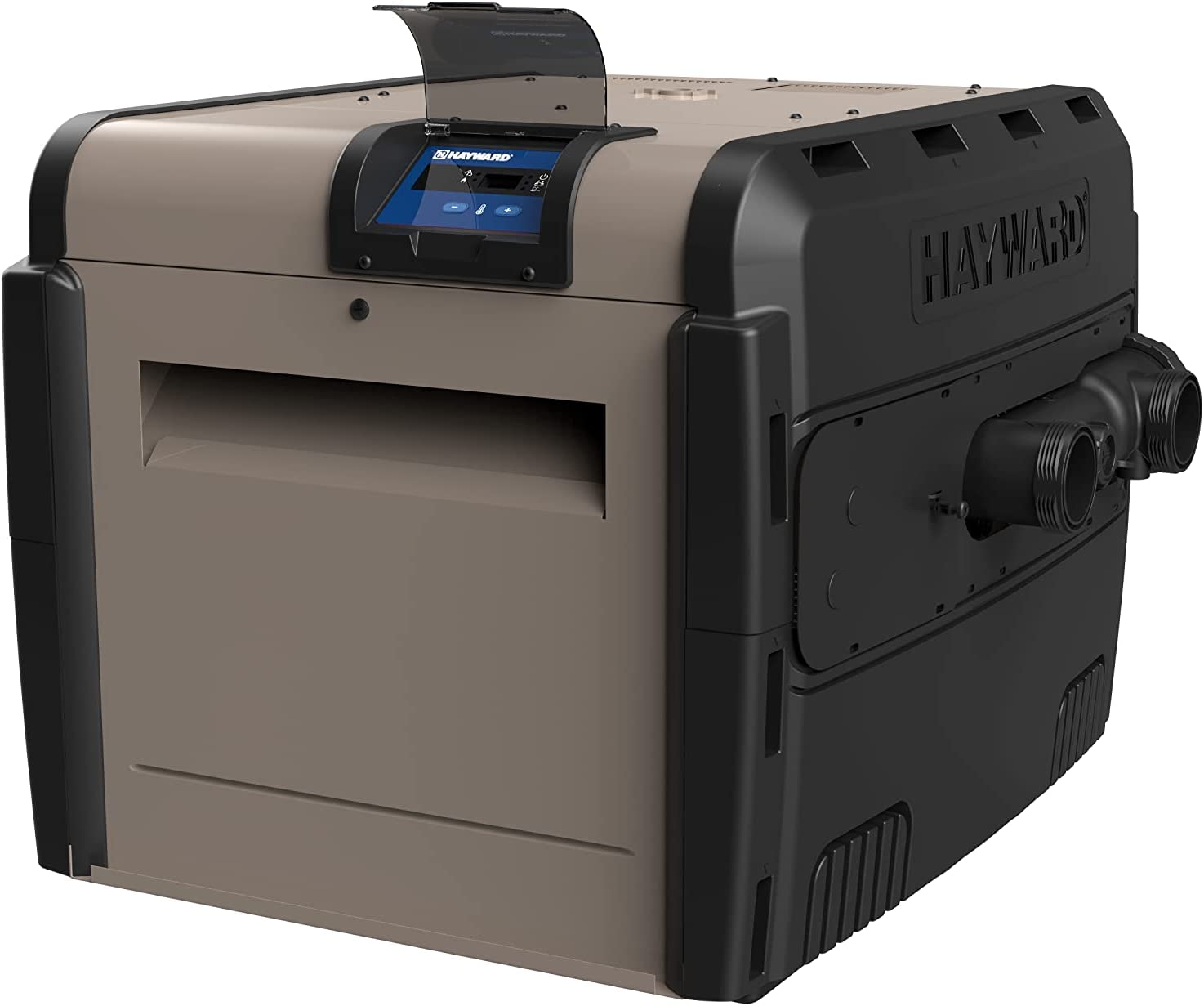

Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP

Ask a questionMPN W3H250FDP
$3,99900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 250,000 BTU Rated at 250,000 BTU on propane.
  • Low NOx The low nitrogen oxide emissions version of the Universal H-Series.
  • Induced draft Induced draft combustion, as Hayward lists the model.
  • Energy efficient Designed to heat efficiently and keep running costs in check.
  • Propane This is the LP gas model; the natural gas version is W3H250FDN, listed separately.
  • Genuine Hayward Model W3H250FDP, UPC 0610377387248.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP, SKU HAY-15-1013. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP
Hayward

Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP

$3,99900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Pentair MasterTemp 125 EC-462025 125,000 BTU propane gas pool and spa heater Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 4608055.0 (1) $4,30899 Raypak AVIA P-R404A-EP-N 399,000 BTU propane gas pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300 Pentair MasterTemp 400,000 BTU propane gas pool heater, model EC-462029 Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900 Web Price Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400 Raypak P-R406A-EP-X 399K BTU propane pool and spa heater with cupro-nickel heat exchanger, front view Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,67600 Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,49300 Raypak 009227 Digital 399K BTU propane pool and spa heater, model P-R406A-EP-C Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,42600 Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,39000 Raypak AVIA P-R404A-EP-C 399,000 BTU propane low NOx pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,42600
Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,25699 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,68199 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799 Raypak 009226 Digital 333,000 BTU propane gas pool and spa heater, model P-R336A-EP-C Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226$3,84100 Raypak 009224 P-R206A-EP-C 200K BTU digital propane gas pool and spa heater Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$3,02300 Raypak P-R336A-EP-X 333,000 BTU propane pool and spa heater with cupro-nickel heat exchanger Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952$4,21000 Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,08299 Pentair MasterTemp 460771 250K natural gas ASME pool heater Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099 Raypak B-R266A-EP-C 266K BTU propane gas ASME pool heater with bronze header Raypak 266K BTU Propane Gas ASME Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, B-R266A-EP-C, 017384$4,04800 Pentair MasterTemp 460776 400,000 BTU propane low NOx ASME pool heater Pentair MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776$4,98499

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward W3H250FDP is the 250,000 BTU propane model of the Universal H-Series, a low NOx pool and spa heater with a cupro nickel heat exchanger and hot surface ignition. It is the Open Line number that Hayward approves for sale online and in stores.

What it offers

Hayward rates this heater at 250,000 BTU/hr input, with 210,000 BTU/hr output at 84 percent thermal efficiency, and designs the hydraulics to cut circulation pump run time. The low NOx version meets the South Coast AQMD Rule 1146.2 standard where it applies.

Installation details

The heater runs on 120 or 240 V, single phase, 60 Hz, on a 5.5 A circuit with a 15 A maximum breaker. Water connections are 2 in. x 2-1/2 in. CPVC unions. It measures 24 in. high, 25 in. wide and 29.5 in. long, and weighs 165 lb. On propane it needs no modification to 2,000 ft by Table 1 of Hayward's manual. The plate that takes it to 7,700 ft comes with the heater, and Hayward sells kit FDXLHAK1930 for installations up to 10,100 ft.

Before you order

This is the propane version. The same heater for natural gas is the W3H250FDN, listed separately, so confirm your fuel first. Hayward gives the W3 Open Line models a 1 year parts warranty with no labor coverage. The installation manual is under Downloads on this page, and it covers the H150FD through H500FD heaters in natural gas and propane.

Specifications
Brand Hayward
Manufacturer part number W3H250FDP
Series Universal H-Series
UPC 0610377387248
Type Gas pool and spa heater
Fuel Propane
Heat input 250,000 BTU/hr
Heat output 210,000 BTU/hr at 84 percent
Thermal efficiency 84 percent, by Hayward
Ignition Hot surface
Heat exchanger Cupro nickel
Emissions Low NOx, meets SCAQMD Rule 1146.2
Electrical 120 or 240 V, single phase, 60 Hz
Amp draw 5.5 A circuit; 15 A maximum breaker
Water connections 2 in x 2-1/2 in CPVC unions
Warranty 1 year on parts, no labor, by Hayward for its Open Line (W3) models
Elevation To 2,000 ft unmodified on propane; to 7,700 ft with the included plate; to 10,100 ft with kit FDXLHAK1930
Dimensions 24 in high, 25 in wide, 29.5 in long
Unit weight 165 lb
Shipping weight 171 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SP0714T$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between H250FDP and W3H250FDP?
The sales channel and the warranty, not the heater. W3H250FDP is the Open Line number, which Hayward approves for sale online and in stores. H250FDP is the Expert Line number for the same size and fuel, sold through stores and pool professionals. This listing is W3H250FDP.
What altitude can the propane Hayward H250FDP be installed at?
Up to 2,000 ft with no modification, by Table 1 of Hayward's manual. The plate to take it to 7,700 ft comes with the heater, and Hayward sells kit FDXLHAK1930 for installations up to 10,100 ft.
What does the SF code mean on a Hayward H250FDP?
A temperature sensor input failure, by Hayward's troubleshooting guide. Our pool heater error code guide covers SF and the other codes.
What warranty does Hayward give the W3H250FDP?
One year on parts, with no labor coverage. That is Hayward's warranty for its Open Line, the W3 part numbers it approves for sale online. Hayward's longer parts and labor warranties belong to its Expert Line numbers, which it sells only through stores and pool professionals.
Where is the manual for the Hayward H250FDP?
Under Downloads on this page, as the Installation Manual. It is Hayward's Universal H-Series installation manual, and covers the H150FD through H500FD heaters in natural gas and propane.
