Pentair MasterTemp 460776 400,000 BTU propane low NOx ASME pool heaterPentair MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776 In stock$4,98499

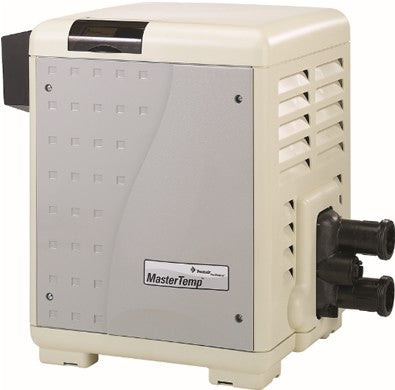

Pentair MasterTemp 460776 400,000 BTU propane low NOx ASME pool heater
Shop all Pentair

Pentair MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776

Ask a questionMPN 460776
$4,98499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 400,000 BTU on propane The large MasterTemp output, set up for propane gas.
  • ASME model Built to the ASME specification for the installations that require it.
  • Low NOx Meets low NOx emissions requirements.
  • Electronic ignition No standing pilot, with digital temperature control at the panel.
  • Indicator lights Front panel lights make it easy to see what the heater is doing.
  • No tubes or unions ASME models ship without tubes and unions, and those parts are no longer available, so order only if you already have the hookups.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776, SKU PUR-15-0776. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776
Pentair

MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776

$4,98499
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs

$37099
Pentair MasterTemp 125 Manifold Kit, 474972
Pentair

MasterTemp 125 Manifold Kit, 474972

$28399
Pentair Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994
Pentair

Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994

$15699
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 4608055.0 (1) $4,30899 Raypak AVIA P-R404A-EP-N 399,000 BTU propane gas pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300 Pentair MasterTemp 400,000 BTU propane gas pool heater, model EC-462029 Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900 Web Price Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400 Raypak P-R406A-EP-X 399K BTU propane pool and spa heater with cupro-nickel heat exchanger, front view Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,67600 Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,49300 Raypak 009227 Digital 399K BTU propane pool and spa heater, model P-R406A-EP-C Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,42600 Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,39000 Raypak AVIA P-R404A-EP-C 399,000 BTU propane low NOx pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,42600
Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799 Raypak 009226 Digital 333,000 BTU propane gas pool and spa heater, model P-R336A-EP-C Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226$3,84100 Raypak 009224 P-R206A-EP-C 200K BTU digital propane gas pool and spa heater Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$3,02300 Raypak P-R336A-EP-X 333,000 BTU propane pool and spa heater with cupro-nickel heat exchanger Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952$4,21000 Hayward Universal H-Series W3H250FDP pool heater, front view Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900 Web Price Coates 34836PHS-3 PHS Series 36 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999 Pentair MasterTemp 460771 250K natural gas ASME pool heater Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099 Raypak B-R266A-EP-C 266K BTU propane gas ASME pool heater with bronze header Raypak 266K BTU Propane Gas ASME Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, B-R266A-EP-C, 017384$4,04800 Raypak B-R406A-EP-X 399K BTU propane ASME digital pool and spa heater Raypak 399K BTU Propane ASME Digital IID Pool Heater, Bronze Header, Cupro-Nickel, B-R406A-EP-X, 017414$5,76400

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair MasterTemp 460776 is the 400,000 BTU propane pool heater in the low NOx ASME configuration. It runs on electronic ignition with digital temperature control, and a copper heat exchanger is listed for this model.

Living with it

MasterTemp is built to be operated like the heating system in a house rather than a piece of pool equipment. Indicator lights on the front tell you what it is doing at a glance, the cabinet is compact for its output, and it runs quietly enough not to take over the pool deck.

Read this before ordering the ASME model

Pentair ASME heaters do not ship with tubes and unions, and those parts are no longer available to purchase separately. Only order this model if you are certain the hookups from your previous Pentair ASME heater are still in place and usable. It is the single most common problem with an ASME replacement.

Delivery

A heater of this size ships by freight and needs a delivery appointment, so plan the install date around the shipment rather than the other way round.

Specifications
Brand Pentair
Manufacturer part number 460776
Series MasterTemp
UPC 788379747565
Type ASME pool and spa heater
Fuel Propane
Heat input 400,000 BTU/hr
Heat exchanger Copper
Headers Bronze, ASME
Certification ASME
Ignition Hot surface (HSI), no standing pilot
Electrical 120 or 240 VAC, single phase, 60 Hz; ships with the 240 V plug
Amp draw About 5 A at 120 V, 2.5 A at 240 V; 15 A circuit
Gas connection 3/4 in
Water connections 2 in
Cabinet 21 in long, 23 in wide, 29 in high
Controls Digital, rotating display
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is different about the propane ASME MasterTemp 400, 460776?
It is the ASME certified version of the 400,000 BTU propane heater, built with bronze headers and a copper heat exchanger. Whether a pool needs an ASME heater is for the local code and the inspector to say.
Is 460776 natural gas or propane?
Propane. Pentair's natural gas ASME MasterTemp 400 is part number 460775.
Where is the manual for the propane ASME MasterTemp 400?
Under Downloads on this page, as the Owners Manual. It is Pentair's MasterTemp Installation and User's Guide, part number 472592, which covers the 175,000 to 400,000 BTU models in natural gas and propane, the HD and ASME versions included.
What do the ERR codes on a propane ASME MasterTemp 400 mean?
Each one names the safety device that opened. ERR PS is the water pressure switch, which means no water is flowing through the heater. ERR HLS is the high limit switch, ERR AFS the air flow switch, ERR IGN a failed ignition and ERR SFS a stack flue temperature above 480 degrees F. What to check for each is in our pool heater error code guide.
Can the propane ASME MasterTemp 400 be installed indoors?
Pentair certifies the ASME MasterTemp for indoor installation with its Direct Air Intake Duct Kit. Outdoors it needs no kit.
