Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952 In stock$4,08700
Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952
$4,08700
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 333,000 BTU sized for large residential and commercial pools and spas.
- Propane fired this is the propane gas model, not the natural gas version.
- Cupro-nickel heat exchanger the upgrade over copper for salt pools and harder water.
- Digital ignition electronic intermittent ignition, no standing pilot.
- 0 to 2,000 ft. the sea level to 2,000 ft. elevation version; higher sites need a different model.
- Ships freight a full size gas heater, delivered by freight carrier.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952
$4,08700
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,78000
Web Price
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,17900
Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,54000
Web Price
Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,39100
Web Price
Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,20000
Web Price
Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,29100
Web Price
Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,20000
Web Price
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899
Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599
Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799
Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$2,83800
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100
Web Price
Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900
Web Price
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999
Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099
Raypak 266K BTU Propane Gas ASME Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, B-R266A-EP-C, 017384$3,93000
Web Price
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

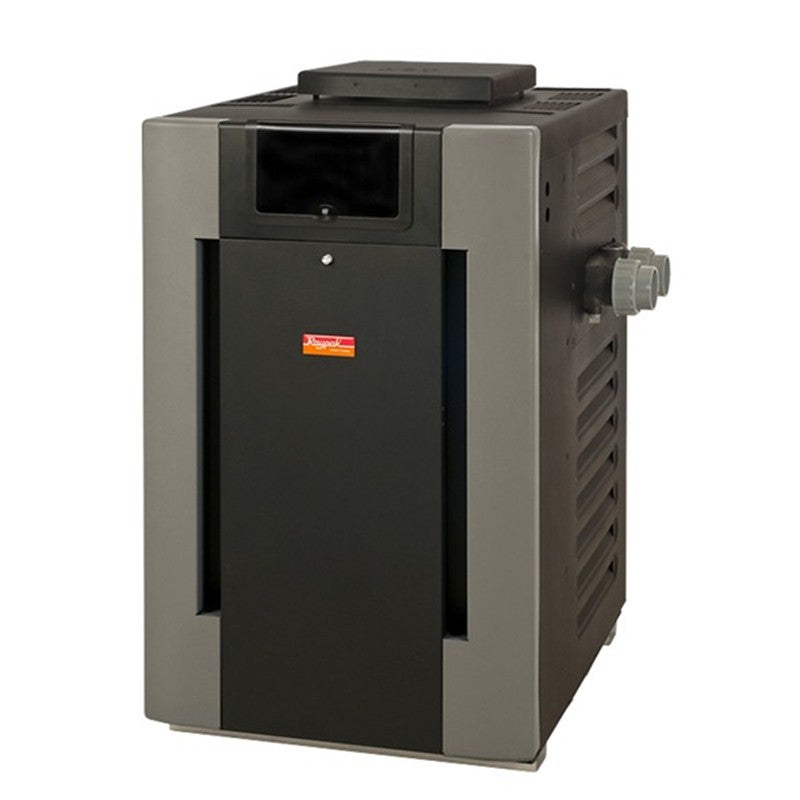

The Raypak P-R336A-EP-X is a 333,000 BTU propane gas pool and spa heater with digital ignition and a cupro-nickel heat exchanger, rated for installation from sea level to 2,000 ft. Raypak part 014952.
Built for big pools and hard duty
At 333K BTU this is one of the larger heaters Raypak makes, sized for large residential pools and spas and for commercial applications. The cupro-nickel heat exchanger is the upgrade over standard copper: it tolerates aggressive chemistry and salt chlorinated water far better, which is what you want on a pool that runs a salt cell.
Digital ignition
Electronic intermittent ignition lights the burner on demand, with no standing pilot, and the digital control holds the water at the set temperature.
Check fuel and elevation
This is the propane model, and it is the 0 to 2,000 ft. version. Natural gas installs and higher elevation sites need a different Raypak model number. It ships by freight.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 014952 |
| Model | P-R336A-EP-X |
| UPC | 840891032557 |
| Type | Pool and spa heater |
| Fuel | Propane |
| Heat input | 300,000 BTU/hr, by Raypak's catalog for this part number |
| Heat output | 246,000 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Cupronickel fin tube |
| Headers | Polymer |
| Elevation | 0 to 2,000 ft |
| Electrical | 120 or 240 VAC, single phase, 60 Hz |
| Amp draw | 4 A at 120 V, 2 A at 240 V |
| Water connections | 2 in |
| Gas connection | 3/4 in NPT |
| Cabinet width | 26 in |
| Shipping weight | 230 lb, 19 more with the indoor draft hood |
| Warranty | 2 years, by Raypak |
| Ships | Freight |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 014952 natural gas or propane?
Propane. Raypak builds the 336A for one fuel, and sells the natural gas heater as a separate part number.
What elevation is Raypak 014952 rated for?
0 to 2,000 ft, by Raypak's catalog. Raypak's catalog lists this cupronickel model for that band only.
Is the Raypak P-R336A-EP-X #58 333,000 or 300,000 BTU?
Raypak's catalog rates this part number, 014952, at 300,000 BTU/hr for 0 to 2,000 ft. Its copper 336A part numbers are listed at 333,000.
What power and connections does Raypak 014952 need?
120 or 240 VAC, single phase. Raypak's brochure gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the P-R336A-EP-X, 014952?
Two years, by Raypak's catalog.
Where is the manual for the Raypak P-R336A-EP-X 014952?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
