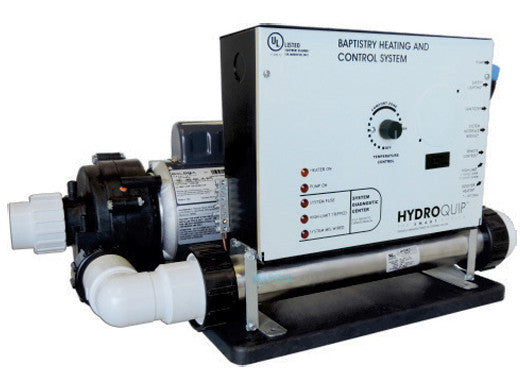

Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW$89699
Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW
30 day returns · Easy, with prepaid labels provided
Quick overview
- Hydro-Quip BES6005 The 11kW model in the BES6000 series of baptismal equipment.
- Heater and controls together Heating and control functions come as one system rather than as separate boxes to wire together.
- 11kW output The series is built in 5.5kW and 11kW outputs, and this is the 11kW unit.
- Listed dimensions The 11kW models are given as 13"H x 29"W x 15"D.
- Four wire service Wired for a 4 wire service at 60 Hz.
- Licensed install This is hard wired equipment near water. Have a licensed electrician size the circuit and make the connections.
Need a hand?
Frequently bought together
BES6005 Baptismal Heating and Control System, 11kW
Similar products
Other products people compare with this one.
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899
Sta-Rite MasterTemp and Max-E-Therm Tube Sheet Coil Assembly Kit, 77707-0234$1,16099
Pentair Tube Sheet Coil Assembly Kit, Cupro Nickel, for MasterTemp 300NA and 300LP, 474060$1,05399
Hayward H-Series Control Bezel Assembly ED2, HAXCPA1932$69099
Hayward Low NOx Control Bezel Assembly, IDXLCPA1930$68899
Raypak Heat Exchanger Copper Tube Bundle for 266A and 267A, 017975F$1,09399
Raypak Copper Heat Exchanger Tube Bundle for 206A and 207A, 017974F$1,10499
Raypak 014324F Control Ignition HSI Multi Try Kit$54599
Sta-Rite Air Blower Kit for 333 Propane Max-E-Therm Burner System, 77707-0255$70999
Hayward LoNox IDL2 Blower/Control Board Kit, IDXL2BWR1931$64299
Raypak 014325F PIM Ignition Control Single Try$58799
Zodiac Jandy Laars Heater Ignition Control | R0202900$57099
Jandy Front Header with Hardware and Gaskets for LXi Low NOx Pool Heaters, R0453600$58599
Pentair MiniMax DDTC Control Circuit Board Assembly | 472100$44699
Zodiac Front Header with Hardware and Gaskets | R0326900$81799
Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299
Pentair Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059$93499
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$86999
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak Copper Tube Bundle R206A, R207A, 010059F$78399
Product details
The Hydro-Quip BES6005 is the 11kW baptismal heating and control system from the BES6000 series. Heater and controls arrive as one unit, so a single enclosure handles bringing the water up to temperature and holding it there.
Where it fits
A baptistry is filled and heated on a schedule rather than run continuously like a pool, which means the equipment has to raise a modest volume of water reliably and then be left alone between uses. The 11kW output is the larger of the two in the series, and the one to specify when the tub is bigger or the fill window is short.
Space and mounting
Hydro-Quip gives a minimum space requirement of 14"H x 26"W x 16"D and lists the 11kW units at 13"H x 29"W x 15"D. Those two figures do not agree on width, so measure the space you have against both before you settle on a location.
Electrical
The system runs on a 4 wire service at 60 Hz. Amp draw and breaker size differ across the models in the series, so this is a job to hand to a licensed electrician working from the Hydro-Quip installation sheet for the BES6005 rather than from a general figure.
| Brand | Hydro-Quip |
|---|---|
| Manufacturer part number | BES6005 |
| Series | BES6000 |
| Type | Baptismal heating and control system |
| Heater output | 11 kW |
| Dimensions | 13"H x 29"W x 15"D (11kW models) |
| Minimum space required | 14"H x 26"W x 16"D |
| Electrical service | 4 wire service, 60 Hz |
| Shipping weight | 48.35 lb |
| Ships | Parcel |
