Product details

The Sta-Rite 77707-0234 is the tube sheet coil assembly kit for Pentair MasterTemp and Sta-Rite Max-E-Therm heaters, models 400NA and 400LP, built prior to 1-12-09.

What makes these heat exchangers different

On the MasterTemp and Max-E-Therm, the tubes in the tube sheet assembly are generally round in shape rather than straight and flat like most other heaters on the market. The plate at the end of the tubes measures 5-1/2 in. wide by 8-1/2 in. tall, the assembly is roughly 13 in. side to side, and it runs about 15 in. from the end of the plate to the opposite end of the coil.

A kit, not just a coil

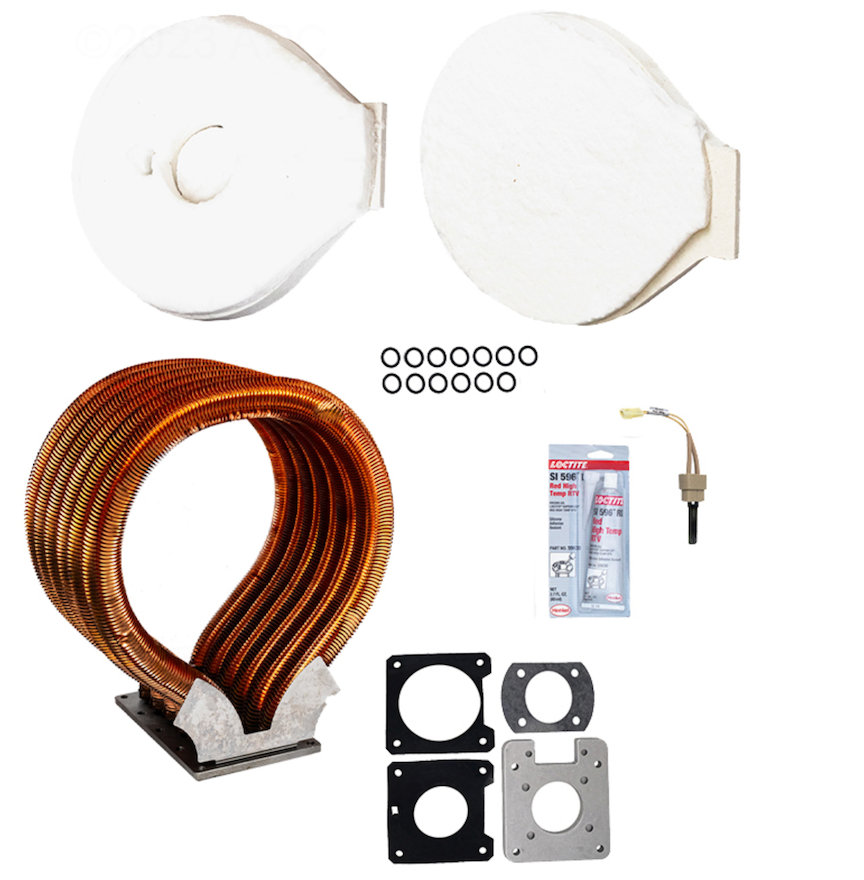

Replacing a heat exchanger disturbs a lot of sealing surfaces, and this kit accounts for that. It includes eight coil o-rings, eight tube sheet seals, the tube sheet coil assembly, a sheet metal warning label, a metal tube replacement o-ring, a manifold bypass valve package, a tube of high temperature RTV silicone, a koala wool insulation service kit, a blower and adapter plate gasket, and an ignitor and gasket kit.

Before you order

Confirm the model and build date on the heater data plate. This kit is for 400NA and 400LP units built prior to 1-12-09, and heaters built after that date use a different assembly.

Specifications
Brand Sta-Rite
Manufacturer part number 77707-0234
UPC 022315210882
Type Tube sheet coil assembly kit
Fits Pentair MasterTemp and Sta-Rite Max-E-Therm models 400NA and 400LP, prior to 1-12-09
Tube sheet plate 5-1/2 in. wide by 8-1/2 in. tall
Approximate width 13 in. side to side
Approximate length 15 in. from the end of the plate to the opposite end of the coil
Tube shape Generally round
Included 8 coil o-rings, 8 tube sheet seals, 1 tube sheet coil assembly 250, 1 sheet metal warning label, 1 metal tube replacement o-ring, 1 manifold bypass valve package, 1 tube of high temp RTV silicone, 1 service kit koala wool insulation, 1 blower and adapter plate gasket, 1 ignitor and gasket kit
Shipping weight 41.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53999 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3299 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$31099 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$57199 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$77199 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$29099 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9399
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15099 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29599 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,25399 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7299 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3699 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

Which heaters does this kit fit?
Pentair MasterTemp and Sta-Rite Max-E-Therm models 400NA and 400LP built prior to 1-12-09. Check the build date on the heater before ordering, because later units take a different kit.
What comes in the kit?
Eight coil o-rings, eight tube sheet seals, the tube sheet coil assembly, a sheet metal warning label, a metal tube replacement o-ring, a manifold bypass valve package, a tube of high temp RTV silicone, koala wool insulation, a blower and adapter plate gasket, and an ignitor and gasket kit.
What size is the assembly?
The plate at the end of the tubes measures 5-1/2 in. wide by 8-1/2 in. tall. The assembly is about 13 in. side to side and about 15 in. from the end of the plate to the opposite end of the coil.
Why do these tubes look different from other heaters?
On MasterTemp and Max-E-Therm heat exchangers the tubes are generally round in shape rather than straight and flat, which is how most other heaters on the market are built.
