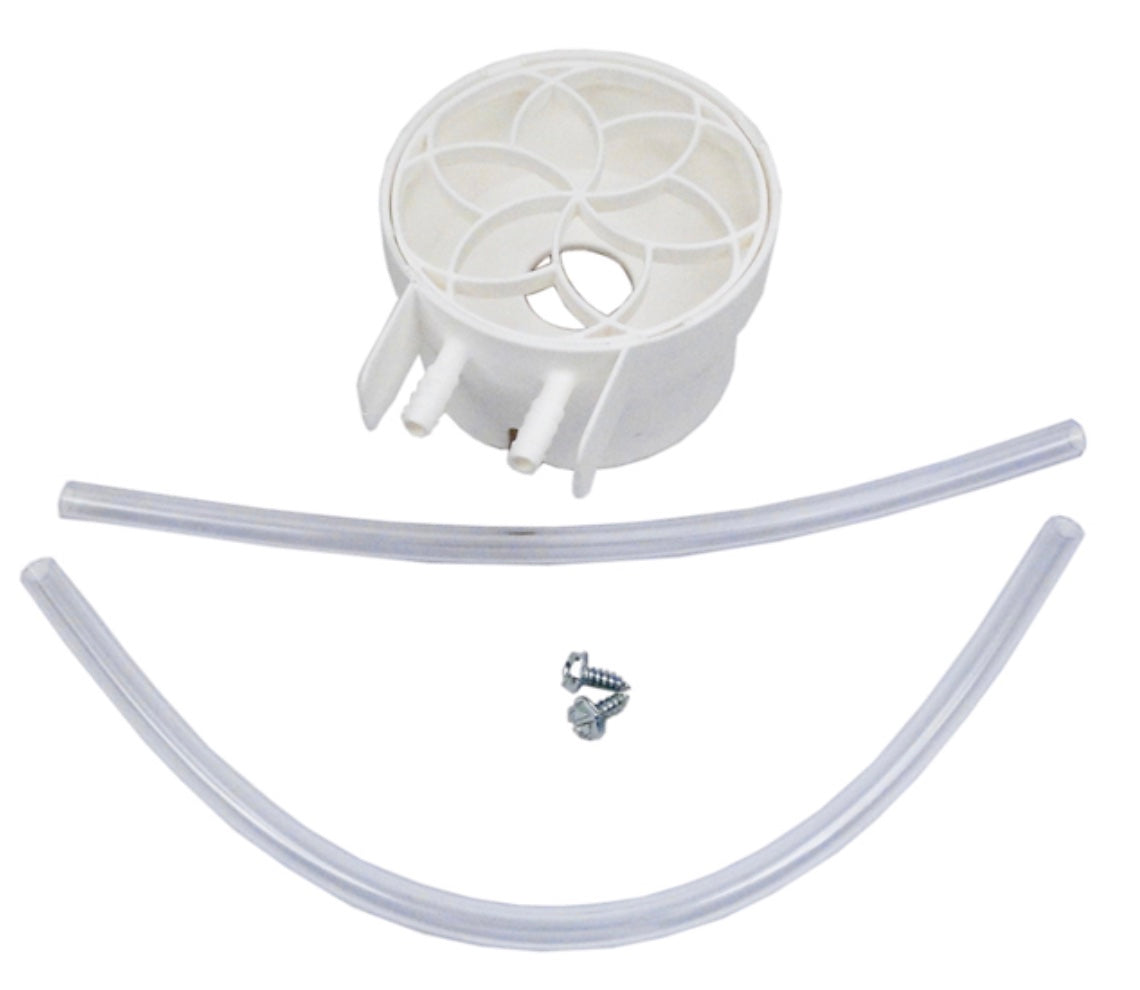

Sta-Rite Air Orifice Kit for Model 200 Max-E-Therm Heater, 77707-0111

Ask a questionMPN 77707-0111
$7699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Model 200 specific Listed for the 200 size Max-E-Therm heater, not the larger models.
  • Burner system part The air orifice sits in the air and fuel path that feeds the burner.
  • Sold as a kit Supplied as the air orifice kit rather than a loose orifice.
  • Genuine part Factory part number 77707-0111.
  • Combustion depends on it A wrong or damaged orifice upsets the air to gas mix, which shows up as poor firing or sooting.
  • Direct replacement Goes in place of the original air orifice on an installed heater.
Full description and specifications ↓
