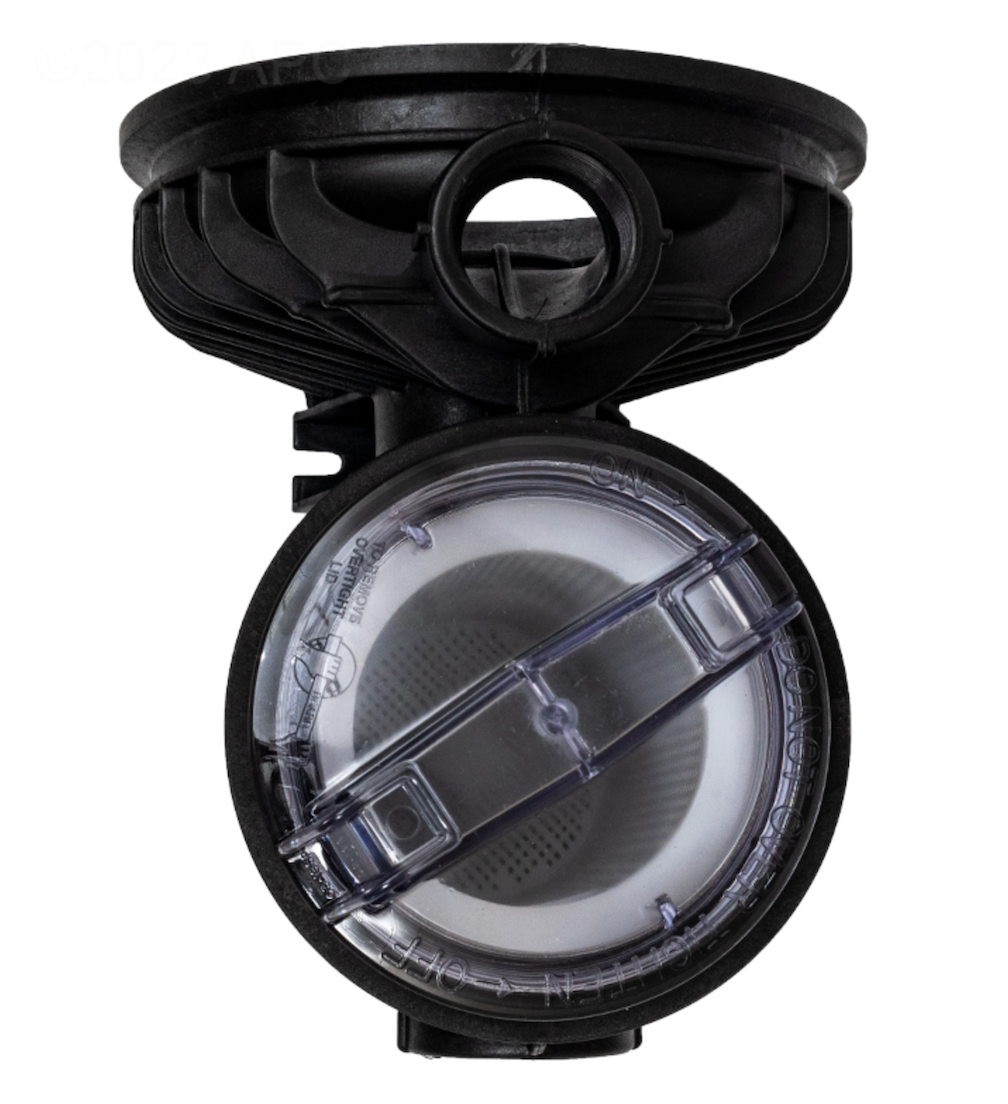

Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumpsSta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ In stock$29699
Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps
Shop all Sta-Rite

Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

Ask a questionMPN C176-59PZ
$29699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete assembly the tank body arrives with its cover, o-ring and strainer basket already included.
  • Fits two pump lines Sta-Rite Max-E-Glas II and Dura-Glas II.
  • Genuine part Sta-Rite part number C176-59PZ.
  • One order, one repair no separate basket, lid or o-ring to track down after a cracked trap.
  • P4 series pumps the family also listed as P4R, P4RA, P4E and P4EA.
  • Front of the pump the strainer pot that sits ahead of the impeller and is held on by the tank body clamp.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ, SKU STA-101-8558. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

$29699
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$31099
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Sta-Rite Max-E-Pro Seal Plate, C103-194PZ
Pentair

Sta-Rite Max-E-Pro Seal Plate, C103-194PZ

$7299
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ

$4399
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17299
Sta-Rite Drain Plug with O-Ring, 1/4 in. NPT, U178-920P
Sta-Rite

Drain Plug with O-Ring, 1/4 in. NPT, U178-920P

$899
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite PKG 115 trap and basket assembly for Dura-Glas and Max-E-Glas pumps Sta-Rite Trap Basket Assembly for Dura-Glas and Max-E-Glas Pumps, PKG 115$15399 Sta-Rite C203-193P seal plate kit for Max-E-Glas and Dura-Glas pool pumps Sta-Rite Seal Plate Kit for Max-E-Glas, Dura-Glas, C203-193P$17299 Pentair C76-71P Sta-Rite Dyna-Pro tank and trap body housing Pentair Sta-Rite Dyna-Pro Tank and Trap Body, C76-71P$26599 Sta-Rite 351089Z black SuperMax volute housing Sta-Rite Black SuperMax Volute Housing 351089Z$25499 Pentair 353124 HMI drive cover with control panel for Sta-Rite SuperMax VS pumps, black Pentair SuperMax Drive Cover with Control Panel 353124$29599 Sta-Rite C105-138PEBZ impeller for Max-E-Glas and Dura-Glas inground pumps Sta-Rite Impeller, 3/4 HP Full Rate and 1 HP Up Rate, for Max-E-Glas and Dura-Glas, C105-138PEBZ$9199 SuperPro GO-KIT38-9 gasket, o-ring and seal kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II pumps SuperPro Pump Rebuild Kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II, GO-KIT38-9$4199 Sta-Rite C108-33P strainer basket for Dura-Glas and Max-E-Glas pumps Sta-Rite Strainer Basket for Dura-Glas and Max-E-Glas Pumps, C108-33P$2099 Sta-Rite C105-137PEBZ impeller for Dura-Glas and Max-E-Glas pumps Sta-Rite Impeller 1HP FR/1.5HP UR for Dura-Glas/Max-E Glas, C105-137PEBZ$10899 Sta-Rite C105-236P impeller for Dyna-Glas, Dyna-Max and Dyna-Pro pumps Sta-Rite Impeller for Dyna-Glas/Dyna-Max Series and Dyna-Pro/Dyna-Pro E Pumps, C105-236P$6099

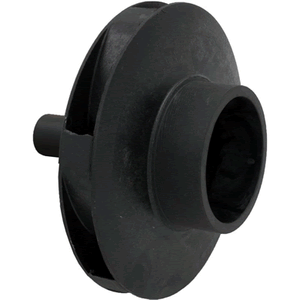

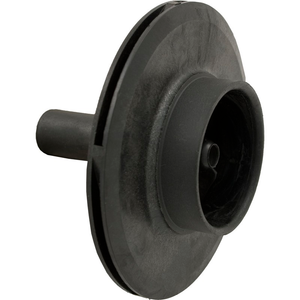

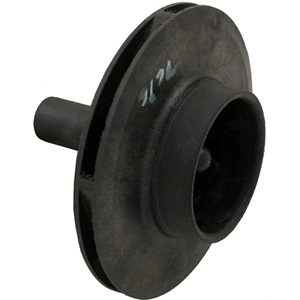

Sta-Rite C105-236PC 1-1/2 HP impeller for Dyna-Glas, Dyna-Max and Dyna-Pro pumps Sta-Rite Impeller for 1-1/2 HP Dyna-Max and Dyna-Pro Pumps, C105-236PC$6099 Pentair 16920-0012 pump lid O-ring for Sta-Rite Dura-Glas and Max-E-Glas pumps Pentair Pump Lid O-Ring for Dura-Glas and Max-E-Glas, 16920-0012$3099 Sta-Rite 17351-0009 new style water slinger for pool pump motor shafts Sta-Rite Water Slinger For Dyna-Jet/Glas/Max/Pro, 17351-0009$899 Sta-Rite C19-37AZ V clamp for the pump tank body Sta-Rite Tank Body V Clamp, C19-37AZ$11999 Sta-Rite 17307-0111S Max-E-Pro trap cover lid assembly Sta-Rite Max-E-Pro Trap Cover Lid Assembly, 17307-0111S$8199 Sta-Rite C3-185PZ 6 inch Dyna-Glas trap lid assembly Sta-Rite Dyna-Glas Trap Lid Assembly, C3-185PZ$7699 Sta-Rite C1-271P1Z diffuser for Max-E-Pro series pumps Sta-Rite Diffuser 1/2 HP to 1-1/2 HP for Max-E-Pro Series Pumps, C1-271P1Z$4299 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps, GO-KIT79$3099 Sta-Rite C35-43 motor vibration pad for Max-E-Pro pumps Sta-Rite Motor Pad for Max-E-Pro Pumps, C35-43$1499 C105-238PLAZ impeller 3HP full rate for IntelliPro VS 3050 pump Sta-Rite Impeller 3HP Full Rate for IntelliPro VS 3050, C105-238PLAZ$10999

Product details

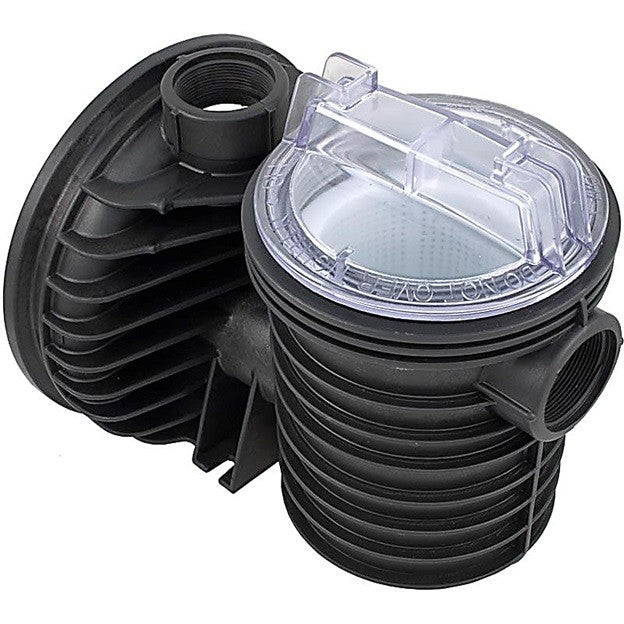

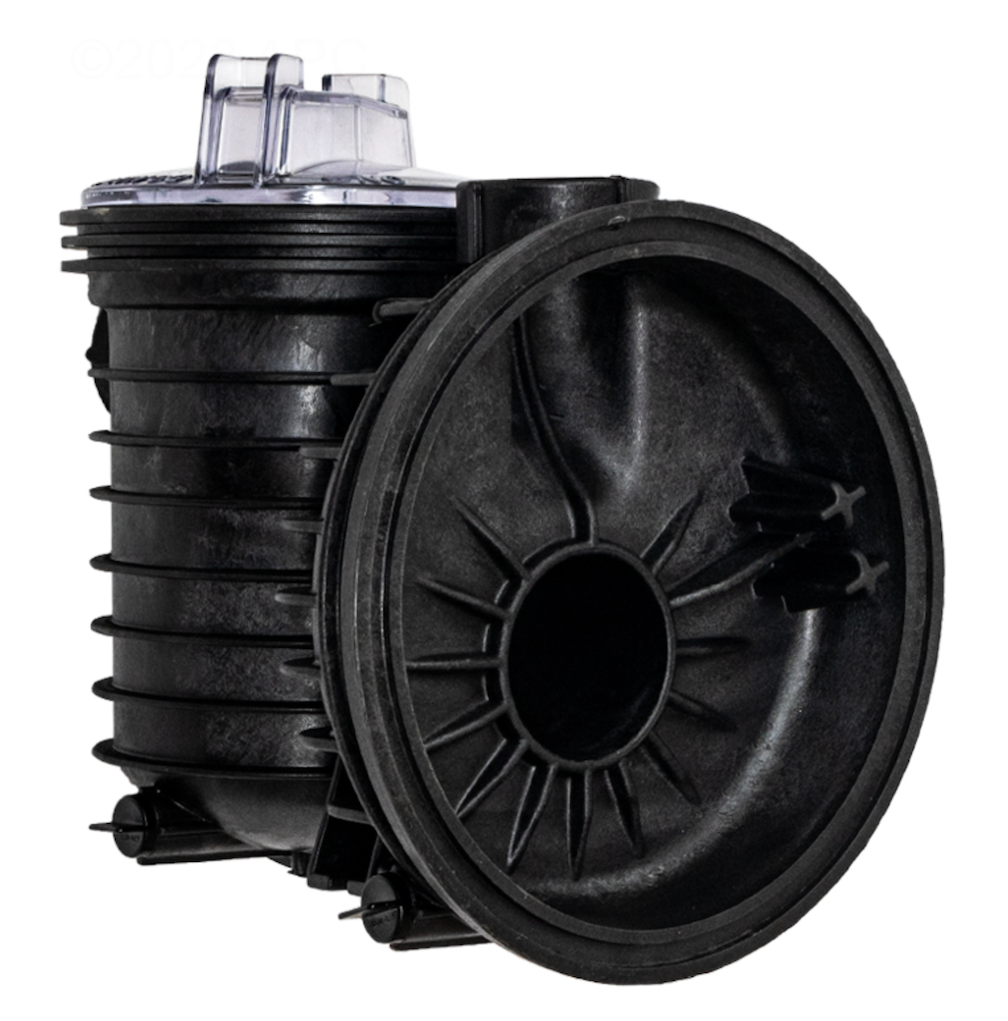

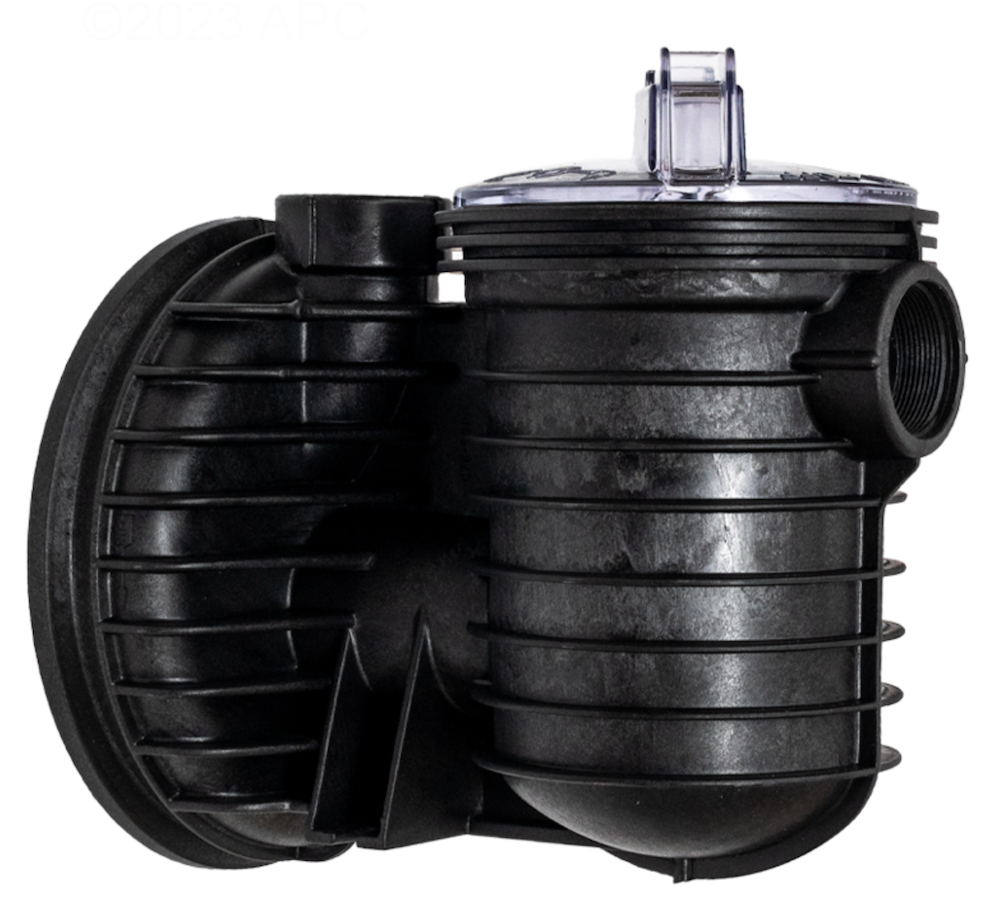

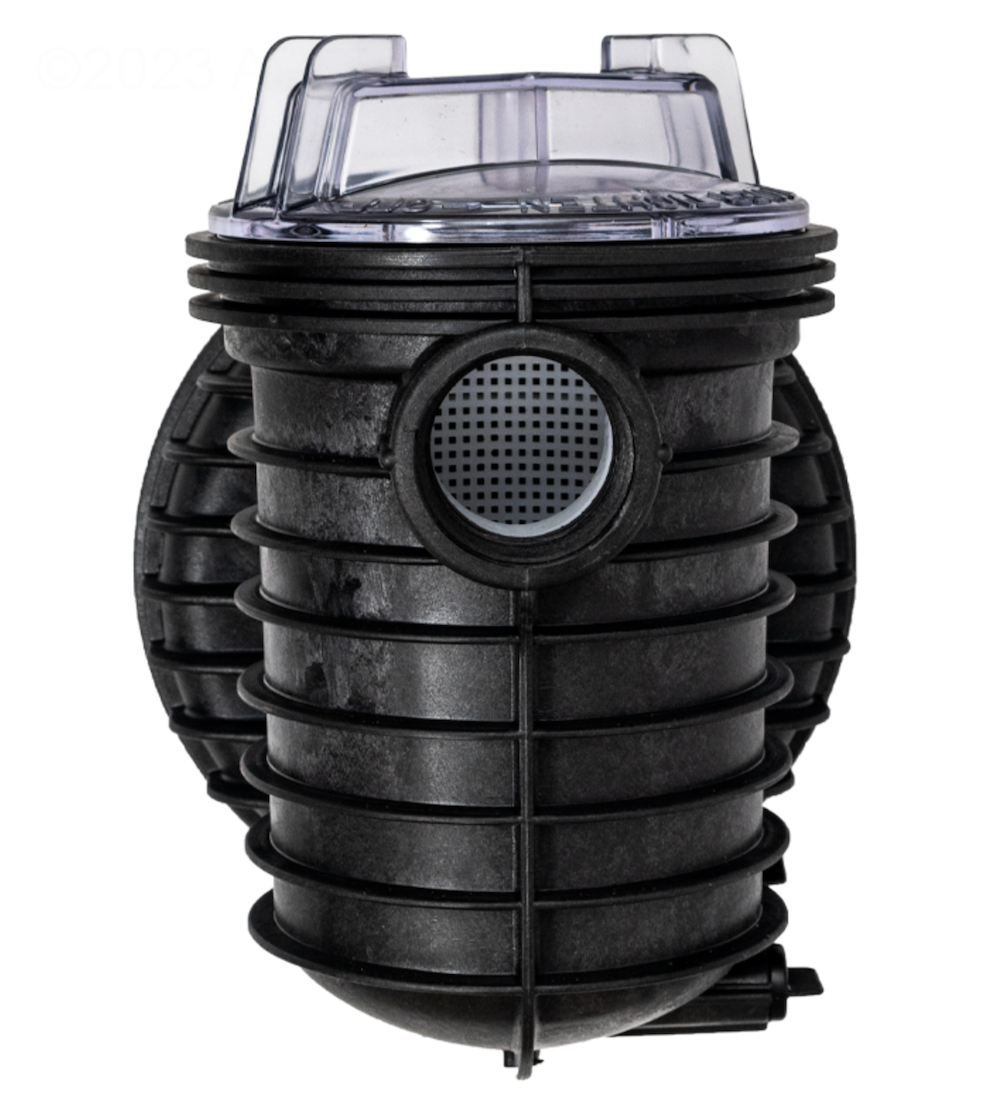

The Sta-Rite C176-59PZ is the genuine tank body assembly for the Max-E-Glas II and Dura-Glas II pumps, the series also listed as P4R, P4RA, P4E and P4EA. The tank body is the strainer pot on the front of the pump, and this assembly arrives with the trap cover, cover o-ring and strainer basket already included.

When it is needed

The strainer pot takes the abuse on a pump: freeze expansion, over tightened suction fittings and years of sun. Once it cracks, the pump draws air, loses prime and cavitates, and there is no reliable way to patch it. Replacing the assembly puts a sound pot, a fresh lid and a new basket on the pump in one step.

Fitting notes

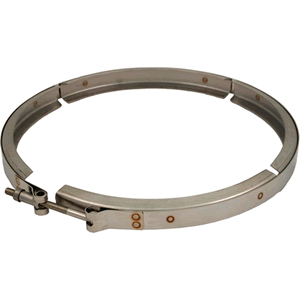

The body is held to the seal plate by the tank body V clamp, which is a separate part. Check it for corrosion when the old body comes off. If the diffuser o-ring or the trap cover o-ring on your old pump were the reason it was losing prime, this assembly covers the cover o-ring, and the diffuser o-ring is available separately.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read
Specifications
Brand Sta-Rite
Manufacturer part number C176-59PZ
UPC 788379734947
Type Tank body assembly
Fits Sta-Rite Max-E-Glas II and Dura-Glas II pumps
Pump series P4R, P4RA, P4E, P4EA
Included Cover, o-ring, basket
Shipping weight 9.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53999 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3299 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$31099 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$57199 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$76799 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$29099 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9399
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15099 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,22199 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7299 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799 Sta-Rite 24850-0008Z 21 in. filter tank o-ring for System 3 filters Sta-Rite 21 in. Filter Tank O-Ring, System 3, 24850-0008Z$7099

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this tank body fit?
The Sta-Rite Max-E-Glas II and Dura-Glas II, the P4R, P4RA, P4E and P4EA pump series.
What comes with it?
The tank body plus the trap cover, the cover o-ring and the strainer basket, so the front end of the pump is complete.
Why would I replace the tank body?
A crack in the strainer pot, usually from a freeze or from over tightening a fitting, lets the pump suck air and lose prime. The pot is not repairable, so the assembly is the fix.
Do I need a new clamp?
The tank body V clamp is a separate part. Reuse yours if it is in good shape, or order a new one with the body if the old one is corroded or bent.
Ask your own question
