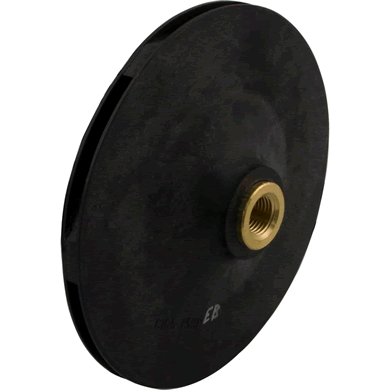

Sta-Rite C105-138PEBZ impeller for Max-E-Glas and Dura-Glas inground pumpsSta-Rite Impeller, 3/4 HP Full Rate and 1 HP Up Rate, for Max-E-Glas and Dura-Glas, C105-138PEBZ In stock$8699
Sta-Rite C105-138PEBZ impeller for Max-E-Glas and Dura-Glas inground pumps
Shop all Sta-Rite

Sta-Rite Impeller, 3/4 HP Full Rate and 1 HP Up Rate, for Max-E-Glas and Dura-Glas, C105-138PEBZ

Ask a questionMPN C105-138PEBZ
$8699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Rated 3/4 HP full rate, 1 HP up rate Sized for the 3/4 horsepower full rate and 1 horsepower up rated versions of these pumps.
  • Max-E-Glas and Dura-Glas The impeller for the Sta-Rite Max-E-Glas and Dura-Glas inground pump series.
  • Impeller assembly Supplied as the impeller assembly for the wet end.
  • Match the horsepower exactly Impellers in this family look alike across ratings. Fitting the wrong one changes flow and can overload or underwork the motor.
  • Do the seal at the same time The shaft seal sits directly behind the impeller, so the same teardown reaches it.
  • Clogging and low flow A vane packed with debris or worn open drops flow across the whole system and shows up as weak returns.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Impeller, 3/4 HP Full Rate and 1 HP Up Rate, for Max-E-Glas and Dura-Glas, C105-138PEBZ, SKU STA-101-3706. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Impeller, 3/4 HP Full Rate and 1 HP Up Rate, for Max-E-Glas and Dura-Glas, C105-138PEBZ
Sta-Rite

Impeller, 3/4 HP Full Rate and 1 HP Up Rate, for Max-E-Glas and Dura-Glas, C105-138PEBZ

$8699
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$31099
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

$29699
Sta-Rite Max-E-Pro Seal Plate, C103-194PZ
Pentair

Sta-Rite Max-E-Pro Seal Plate, C103-194PZ

$7299
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ

$4399
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17299
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite C1-271P pump diffuser for 1-1/2 HP through 3 HP pumps Sta-Rite Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P$4599 Pentair 355074Z high flow pump impeller, 1 HP full rated and 1.5 HP up rated Pentair Super Flo/Max Impeller, 1 HP Full Rated / 1.5 HP Up Rated, High Flow, 355074Z$6099 Pentair 355086Z high flow impeller for SuperFlo, SuperMax and Challenger pumps Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z$5999 Sta-Rite C3-185PZ 6 inch Dyna-Glas trap lid assembly Sta-Rite Dyna-Glas Trap Lid Assembly, C3-185PZ$7699 Sta-Rite 17307-0111S Max-E-Pro trap cover lid assembly Sta-Rite Max-E-Pro Trap Cover Lid Assembly, 17307-0111S$8199 Sta-Rite C19-37AZ V clamp for the pump tank body Sta-Rite Tank Body V Clamp, C19-37AZ$11999 Pentair 351157 1.5 inch black union kit for SuperMax and SuperFlo pumps Pentair 1.5" Black Union Kit for SuperMax and SuperFlo, 351157$8299 Pentair 355093Z impeller, 2 HP full rated and 2-1/2 HP up rated high flow Pentair Impeller, 2 HP Full Rated / 2-1/2 HP Up Rated, High Flow, 355093Z$5499 Sta-Rite PKG 189 union connection kit, 2 inch by 2 inch FPT Sta-Rite Union Connection Kit 2" x 2" FPT, PKG 189$5399 Sta-Rite C104-79P pump base with motor pad for 3 HP models Sta-Rite Base with Motor Pad, 3 HP Only, C104-79P$6099
Pentair 355618Z SuperFlo and SuperMax diffuser, 1-1/2 HP thru 2 HP Pentair SuperFlo and SuperMax Diffuser, 1-1/2 HP Thru 2 HP, 355618Z$9499 Pentair 356012Z seal plate for SuperFlo, Pinnacle and Sta-Rite SuperMax pumps Pentair SuperFlo Seal Plate, 356012Z$8699 Pentair 400011Z diffuser for the 5 HP WhisperFlo XF pump Pentair WhisperFlo XF 5 HP Diffuser, 400011Z$11599 Pentair 350094 Superflo pump base Pentair Superflo Pump Base, 350094$10099 Pentair 355617Z diffuser for SuperFlo and SuperMax pumps, 1/2 HP through 1 HP Pentair SuperFlo Diffuser, 1/2 HP Thru 1 HP, 355617Z$8899 SuperPro GO-KIT38-9 gasket, o-ring and seal kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II pumps SuperPro Pump Rebuild Kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II, GO-KIT38-9$4199 Sta-Rite C108-33P strainer basket for Dura-Glas and Max-E-Glas pumps Sta-Rite Strainer Basket for Dura-Glas and Max-E-Glas Pumps, C108-33P$2099 Sta-Rite PKG 115 trap and basket assembly for Dura-Glas and Max-E-Glas pumps Sta-Rite Trap Basket Assembly for Dura-Glas and Max-E-Glas Pumps, PKG 115$15399 Sta-Rite C203-193P seal plate kit for Max-E-Glas and Dura-Glas pool pumps Sta-Rite Seal Plate Kit for Max-E-Glas, Dura-Glas, C203-193P$17299 Pentair 16920-0012 pump lid O-ring for Sta-Rite Dura-Glas and Max-E-Glas pumps Pentair Pump Lid O-Ring for Dura-Glas and Max-E-Glas, 16920-0012$3099

Product details

The C105-138PEBZ is the impeller assembly for Sta-Rite Max-E-Glas and Dura-Glas inground pumps, covering the 3/4 horsepower full rate and 1 horsepower up rate ratings.

Get the rating right

Impellers across a pump family look nearly identical and are not interchangeable. The vane geometry is what sets the flow the pump produces at a given motor speed, so an impeller from the wrong rating either chokes the pump or lets the motor work harder than it was matched for. Read the horsepower and the full rate or up rate designation off the pump label rather than guessing from the motor.

Symptoms of a bad impeller

Weak returns with a clean filter and a clean basket usually means the impeller. Either the vanes are packed with debris that has worked past the basket, or they are worn open after years of running, and either way the pump moves less water than the system was designed around. Heaters and cleaners feel it first.

While the pump is apart

The shaft seal sits directly behind the impeller and can only be reached with the impeller off. Change both in the same teardown. It costs very little more and it means the pump is not coming apart again in a year for the half of the job you skipped.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read
Specifications
Brand Sta-Rite
Manufacturer part number C105-138PEBZ
UPC 788379733834
Type Impeller assembly
Part type Pool pump part
Rating 3/4 horsepower full rate, 1 horsepower up rate
Fits Sta-Rite Max-E-Glas and Dura-Glas inground pumps
Shipping weight 0.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53999 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3299 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$31099 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$57199 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$77199 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$29099 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9399
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15099 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,25399 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7299 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3699 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

Which horsepower is this for?
It is the impeller for the 3/4 horsepower full rate rating and the 1 horsepower up rate rating. Those are the same impeller because up rated and full rated pumps of different nameplate horsepower can share a wet end.
Which pumps does it fit?
Sta-Rite Max-E-Glas and Dura-Glas inground pumps.
Does the brand say Sta-Rite or Pentair?
Both appear in the source. Sta-Rite is a Pentair brand, so the part is described as a Pentair item and as a Sta-Rite item depending on where you look. The part number C105-138PEBZ is the same either way.
Should I change the seal too?
Yes. The shaft seal sits directly behind the impeller and is only reachable with the impeller off, so replacing both in one teardown saves opening the pump twice.
Ask your own question
