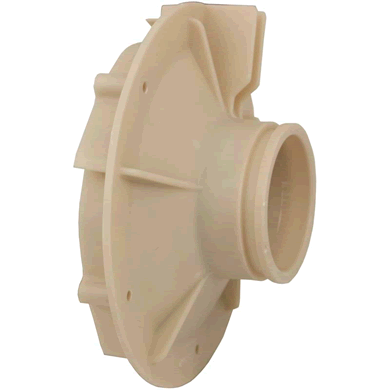

Sta-Rite C1-271P pump diffuser for 1-1/2 HP through 3 HP pumpsSta-Rite Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P In stock$4399
Sta-Rite C1-271P pump diffuser for 1-1/2 HP through 3 HP pumps
Shop all Sta-Rite

Sta-Rite Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P

Ask a questionMPN C1-271P
$4399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • One diffuser, 1-1/2 HP to 3 HP Unlike the impeller, the diffuser is shared across the whole horsepower range.
  • Sta-Rite part C1-271P The factory diffuser rather than a generic substitute.
  • Directs flow off the impeller The diffuser converts impeller speed into pressure, which is where a cracked one costs you head.
  • Several pump families Carried for Sta-Rite Max-E-Pro, Sta-Rite IntelliPro VS 3050 and Pentair Pinnacle pumps.
  • Do the o-ring at the same time The diffuser o-ring is its own part number and is worth renewing while the pump is open.
  • Screws sold separately The diffuser screws covering 1-1/2 HP through 3 HP are listed under their own part number.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P, SKU STA-101-8556. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P
Sta-Rite

Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P

$4399
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$30499
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

$29699
Sta-Rite Max-E-Pro Seal Plate, C103-194PZ
Pentair

Sta-Rite Max-E-Pro Seal Plate, C103-194PZ

$7099
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ

$4499
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17199
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite C1-271P1Z diffuser for Max-E-Pro series pumps Sta-Rite Diffuser 1/2 HP to 1-1/2 HP for Max-E-Pro Series Pumps, C1-271P1Z$4399 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps, GO-KIT79$2999 Sta-Rite C105-236PC 1-1/2 HP impeller for Dyna-Glas, Dyna-Max and Dyna-Pro pumps Sta-Rite Impeller for 1-1/2 HP Dyna-Max and Dyna-Pro Pumps, C105-236PC$5999 Sta-Rite C105-236P impeller for Dyna-Glas, Dyna-Max and Dyna-Pro pumps Sta-Rite Impeller for Dyna-Glas/Dyna-Max Series and Dyna-Pro/Dyna-Pro E Pumps, C105-236P$5999 Sta-Rite 37337-6080 impeller screw for Dyna-Pro pumps Sta-Rite Impeller Screw for Dyna-Pro, 37337-6080$3299 SuperPro GO-KIT38-9 gasket, o-ring and seal kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II pumps SuperPro Pump Rebuild Kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II, GO-KIT38-9$4099 Sta-Rite 35505-1440Z trap cover o-ring for Max-E-Pro pumps Sta-Rite Trap Cover O-Ring, Max-E-Pro, 6-3/4" ID, 1/4" Thickness, 35505-1440Z$3199 SuperPro GO-KIT6V-9 Viton gasket and O-ring kit for Sta-Rite pumps SuperPro Viton Sta-Rite P2R Pump Seal Kit, GO-KIT6V-9$3799 Sta-Rite J3-2 copper seal plate insert for pre 1998 pumps Sta-Rite Seal Plate Insert, Pre 1998$2399 Sta-Rite C105-236PDA 2 HP Dyna-Glas pump impeller Sta-Rite Dyna-Glas Impeller, 2 HP, C105-236PDA$6099
Sta-Rite PKG 189 union connection kit, 2 inch by 2 inch FPT Sta-Rite Union Connection Kit 2" x 2" FPT, PKG 189$5499 Sta-Rite C104-79P pump base with motor pad for 3 HP models Sta-Rite Base with Motor Pad, 3 HP Only, C104-79P$6299 Pentair 350091Z clear strainer cover for SuperFlo pool pumps Pentair Strainer Cover for SuperFlo Pool Pump, 350091Z$3899 Pentair 16920-0012 pump lid O-ring for Sta-Rite Dura-Glas and Max-E-Glas pumps Pentair Pump Lid O-Ring for Dura-Glas and Max-E-Glas, 16920-0012$3199 Pentair 16920-0017 strainer basket for a 6 inch pump trap Pentair Strainer Basket for 6" Trap, 16920-0017$3999 Pentair 355074Z high flow pump impeller, 1 HP full rated and 1.5 HP up rated Pentair Super Flo/Max Impeller, 1 HP Full Rated / 1.5 HP Up Rated, High Flow, 355074Z$6199 Pentair 356197 chemical, salt and ozone resistant seal set for SuperFlo and SuperMax pumps Pentair SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197$3999 Pentair 355086Z high flow impeller for SuperFlo, SuperMax and Challenger pumps Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z$6099 Pentair 355093Z impeller, 2 HP full rated and 2-1/2 HP up rated high flow Pentair Impeller, 2 HP Full Rated / 2-1/2 HP Up Rated, High Flow, 355093Z$5599 Pentair 356196 chemical, salt and ozone resistant seal set for Max-E-Pro pumps Pentair Max-E-Pro Chemical, Salt, Ozone Resistant Seal Set, 356196$3899

Product details

The Sta-Rite C1-271P is the pump diffuser covering 1-1/2 HP through 3 HP. One part number spans that whole range, which is worth knowing because the impeller behind it is horsepower specific and the diffuser is not.

What the diffuser does

The impeller throws water outward at speed. The diffuser is the shaped housing that catches it and turns that speed into the pressure the filter and returns actually see. When it cracks, warps from heat, or loses the fit around the impeller hub, water recirculates inside the pump instead of leaving it. The symptom is a pump that sounds normal and moves noticeably less water.

Pump coverage

C1-271P is carried in the parts groups for the Sta-Rite Max-E-Pro, the Sta-Rite IntelliPro VS 3050 and the Pentair Pinnacle, and it also appears in the Max-E-Glas II and Dura-Glas II listings.

While the pump is open

The o-ring that seals the diffuser and the diffuser screws are separate part numbers. Both are cheap, both are already exposed once the pump is apart, and neither is worth a second teardown.

Specifications
Brand Sta-Rite
Manufacturer part number C1-271P
UPC 788379733025
Part type Pool pump part
Type Diffuser
Horsepower range 1-1/2 HP to 3 HP
Fits Sta-Rite Max-E-Pro, Sta-Rite IntelliPro VS 3050 and Pentair Pinnacle pumps
Also listed for Sta-Rite Max-E-Glas II and Dura-Glas II pumps
Shipping weight 0.6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3499 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$56999 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$76799 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$28799 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9499
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15499 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,22199 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7099 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

Does one diffuser cover every horsepower?
Yes. C1-271P is listed for 1-1/2 HP through 3 HP. The impeller is the part that changes with horsepower, not the diffuser.
Which pumps use it?
It is listed for the Sta-Rite Max-E-Pro, the Sta-Rite IntelliPro VS 3050 and the Pentair Pinnacle, and it also appears in the Max-E-Glas II and Dura-Glas II parts groups.
Are the o-ring and screws included?
The diffuser o-ring and the diffuser screws are listed under their own part numbers, so order them alongside the diffuser if yours are worn.
Why replace a diffuser?
A cracked or warped diffuser lets water slip back past the impeller instead of going out to the filter, and that shows up as weak returns and low flow.
