C105-238PLAZ impeller 3HP full rate for IntelliPro VS 3050 pumpSta-Rite Impeller 3HP Full Rate for IntelliPro VS 3050, C105-238PLAZ In stock$11299

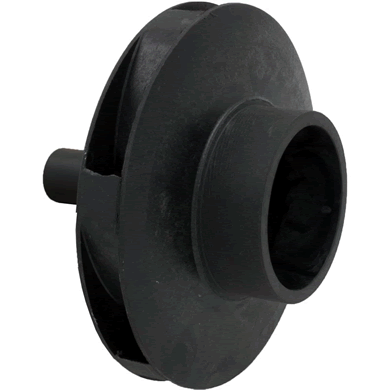

C105-238PLAZ impeller 3HP full rate for IntelliPro VS 3050 pump
Shop all Sta-Rite

Sta-Rite Impeller 3HP Full Rate for IntelliPro VS 3050, C105-238PLAZ

Ask a questionMPN C105-238PLAZ
$11299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 3 horsepower, full rate Matched to the full rate 3HP build, not the up rate version of the same pump body.
  • Impeller assembly Supplied as the assembly, part number C105-238PLAZ.
  • IntelliPro VS 3050 The impeller used in the IntelliPro VS 3050 variable speed pump.
  • Also used in wet ends Listed for the Max-E-Pro, Max-E-Glas II Series and Dura-Glas II Series inground pumps.
  • Restores lost flow A worn or blocked impeller drops flow and pressure well before the motor gives any sign of trouble.
  • Match the rating Fitting the wrong horsepower impeller changes the pump curve, so confirm the rating on your old part.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Impeller 3HP Full Rate for IntelliPro VS 3050, C105-238PLAZ, SKU STA-101-9693. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Impeller 3HP Full Rate for IntelliPro VS 3050, C105-238PLAZ
Sta-Rite

Impeller 3HP Full Rate for IntelliPro VS 3050, C105-238PLAZ

$11299
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$30499
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

$29699
Sta-Rite Max-E-Pro Seal Plate, C103-194PZ
Pentair

Sta-Rite Max-E-Pro Seal Plate, C103-194PZ

$7099
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ

$4499
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17199
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite PKG 115 trap and basket assembly for Dura-Glas and Max-E-Glas pumps Sta-Rite Trap Basket Assembly for Dura-Glas and Max-E-Glas Pumps, PKG 115$16399 Sta-Rite C19-37AZ V clamp for the pump tank body Sta-Rite Tank Body V Clamp, C19-37AZ$12199 Pentair 355074Z high flow pump impeller, 1 HP full rated and 1.5 HP up rated Pentair Super Flo/Max Impeller, 1 HP Full Rated / 1.5 HP Up Rated, High Flow, 355074Z$6199 Pentair 355086Z high flow impeller for SuperFlo, SuperMax and Challenger pumps Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z$6099 Sta-Rite C3-185PZ 6 inch Dyna-Glas trap lid assembly Sta-Rite Dyna-Glas Trap Lid Assembly, C3-185PZ$7799 Sta-Rite 17307-0111S Max-E-Pro trap cover lid assembly Sta-Rite Max-E-Pro Trap Cover Lid Assembly, 17307-0111S$8499 Sta-Rite C104-79P pump base with motor pad for 3 HP models Sta-Rite Base with Motor Pad, 3 HP Only, C104-79P$6299 Pentair 400023Z WhisperFlo XF 5 HP impeller assembly Pentair WhisperFlo XF 5 HP Impeller, 400023Z$13899 Pentair 351157 1.5 inch black union kit for SuperMax and SuperFlo pumps Pentair 1.5" Black Union Kit for SuperMax and SuperFlo, 351157$8499 Pentair 356012Z seal plate for SuperFlo, Pinnacle and Sta-Rite SuperMax pumps Pentair SuperFlo Seal Plate, 356012Z$8699
Pentair 400011Z diffuser for the 5 HP WhisperFlo XF pump Pentair WhisperFlo XF 5 HP Diffuser, 400011Z$11899 Pentair 355618Z SuperFlo and SuperMax diffuser, 1-1/2 HP thru 2 HP Pentair SuperFlo and SuperMax Diffuser, 1-1/2 HP Thru 2 HP, 355618Z$9799 Pentair 355617Z diffuser for SuperFlo and SuperMax pumps, 1/2 HP through 1 HP Pentair SuperFlo Diffuser, 1/2 HP Thru 1 HP, 355617Z$9199 Sta-Rite 37337-6080 impeller screw for Dyna-Pro pumps Sta-Rite Impeller Screw for Dyna-Pro, 37337-6080$3299 Sta-Rite C203-193P seal plate kit for Max-E-Glas and Dura-Glas pool pumps Sta-Rite Seal Plate Kit for Max-E-Glas, Dura-Glas, C203-193P$17599 Sta-Rite C1-271P pump diffuser for 1-1/2 HP through 3 HP pumps Sta-Rite Diffuser for 1-1/2 HP to 3 HP Pumps, C1-271P$4399 Sta-Rite C1-271P1Z diffuser for Max-E-Pro series pumps Sta-Rite Diffuser 1/2 HP to 1-1/2 HP for Max-E-Pro Series Pumps, C1-271P1Z$4399 SuperPro GO-KIT38-9 gasket, o-ring and seal kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II pumps SuperPro Pump Rebuild Kit for Sta-Rite MAX-E-GLAS II and DURA-GLAS II, GO-KIT38-9$4099 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps, GO-KIT79$2999 Sta-Rite C108-33P strainer basket for Dura-Glas and Max-E-Glas pumps Sta-Rite Strainer Basket for Dura-Glas and Max-E-Glas Pumps, C108-33P$2199

Product details

The C105-238PLAZ is the 3 horsepower full rate impeller assembly used in the IntelliPro VS 3050, along with the Max-E-Pro, Max-E-Glas II Series and Dura-Glas II Series inground pumps.

Get the rating right

Pump manufacturers build the same housing in full rate and up rate versions, and the impeller is what separates them. Two pumps with 3 on the label can move noticeably different volumes of water. This is the full rate impeller, so check the rating stamped on the part you are replacing before ordering, since fitting the wrong one changes the pump curve and can leave the system either starved or overworked.

When the impeller is worn

An impeller wears from the inside. Sand and grit passing through the vanes opens up the clearances until the pump is turning at full speed while moving less water. The usual symptom set is weak returns, low filter pressure and a slow cleaner, all while the motor sounds fine. Debris packed into the vanes causes the same thing suddenly rather than gradually, so pull the impeller and look through the vanes before assuming it is worn out.

While you are in there

Removing the impeller means separating the seal plate and exposing the shaft seal. A seal that has been disturbed rarely reseats reliably, so plan on fitting a fresh one and a diffuser gasket during the same job.

Specifications
Brand Sta-Rite
Manufacturer part number C105-238PLAZ
UPC 788379734459
Type Impeller assembly
Horsepower 3 HP
Rating Full rate
Fits IntelliPro VS 3050, Max-E-Pro, Sta-Rite Max-E-Glas II Series, Dura-Glas II Series inground pumps
Shipping weight 0.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53899 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3499 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$30499 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$56999 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$76799 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$28799 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9499
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15499 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,22199 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7099 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between full rate and up rate?
They are two ratings of the same pump body with different impellers. Full rate and up rate models with the same nameplate horsepower move different amounts of water, so the impeller has to match the pump you own.
Which pumps does it fit?
The IntelliPro VS 3050 along with the Max-E-Pro, Max-E-Glas II Series and Dura-Glas II Series inground pumps.
Do I need a new shaft seal too?
The impeller has to come off the motor shaft to be changed, which exposes the shaft seal. Most techs replace the seal at the same time rather than reusing a disturbed one.
How do I know the impeller is the problem?
Weak flow and low filter pressure with a motor that still runs normally usually points at the impeller, either worn open vanes or debris packed into the vanes.
