Pentair 400023Z WhisperFlo XF 5 HP impeller assemblyPentair WhisperFlo XF 5 HP Impeller, 400023Z In stock$13399

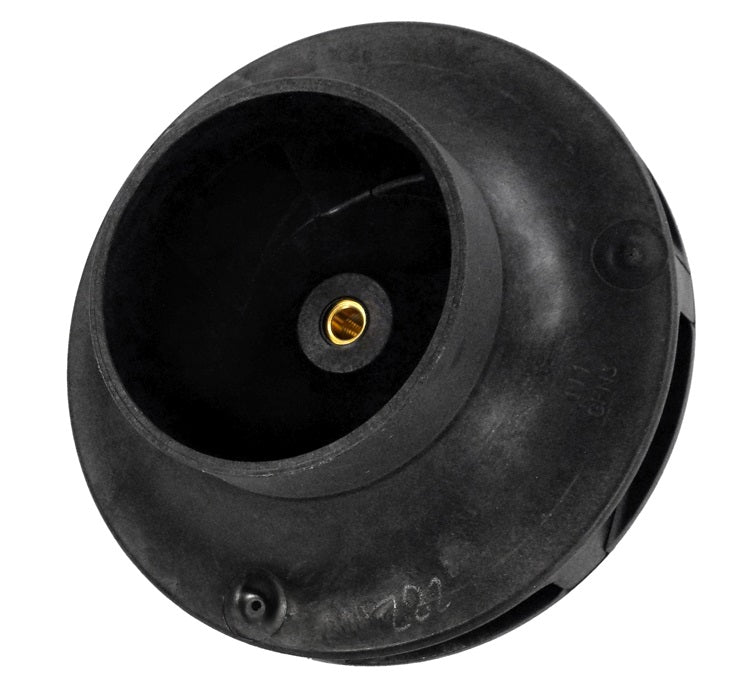

Pentair 400023Z WhisperFlo XF 5 HP impeller assembly
Shop all Pentair

Pentair WhisperFlo XF 5 HP Impeller, 400023Z

Ask a questionMPN 400023Z
$13399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory impeller assembly 400023Z for the 5 HP XF pumps.
  • Two pump families Fits WhisperFloXF and Max-E-ProXF models XFET-20, XFE-20, XFJ-20 and XFK-20.
  • Matched to 5 HP Impellers are sized to the motor, so the horsepower has to match or the pump will not perform as designed.
  • The energy transfer The impeller is the rotating disc that carries energy from the motor into the water.
  • Restores lost flow A worn or clogged impeller shows up as weak returns and long filter cycles.
  • Supplied as an assembly Comes as the impeller assembly rather than a bare vane.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair WhisperFlo XF 5 HP Impeller, 400023Z, SKU PUR-101-4000. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair WhisperFlo XF 5 HP Impeller, 400023Z
Pentair

WhisperFlo XF 5 HP Impeller, 400023Z

$13399
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$30499
Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z
Pentair

Screw 1/4-20 x 1 Left Hand Thread, 071652Z

$599
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Subtotal

Similar products

Other products people compare with this one.

Pentair 073131Z 3 hp impeller for WhisperFlo WFE-12 and IntelliFlo pumps Pentair Impeller for IntelliFlo and WhisperFlo 3 HP WFE-12, 073131Z$9099 Pentair 073130Z impeller for 2 and 2.5 HP WhisperFlo pool pumps Pentair WhisperFlo Impeller, 2 and 2.5 HP (WF-8 & 30, WFDS-8 & 30, WFE-30, WFK-8), 073130Z$9499 Pentair 073128Z 1000 Series impeller for WhisperFlo WFE-4, WF-4, WF-26 and FE-26 pumps Pentair 1 & 1.5 HP WhisperFlo Impeller, 073128Z$9099 Pentair 073129Z 1000 Series WhisperFlo pump impeller Pentair 1.5 HP WhisperFlo Impeller, 073129Z$9099 Pentair 073127Z WhisperFlo impeller for .75 and 1 HP pumps Pentair WhisperFlo Impeller .75 and 1 HP (WF-3 & 24, WFE-24), 073127Z$9499 Pentair 073126Z 1/2 HP impeller for the WhisperFlo WFE-2 pump Pentair 1/2 HP Impeller for WhisperFlo WFE-2, 073126Z$9099 Pentair 072927Z WhisperFlo diffuser assembly for WFE-3 to WFE-8 pumps Pentair WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z$7799 Pentair 400011Z diffuser for the 5 HP WhisperFlo XF pump Pentair WhisperFlo XF 5 HP Diffuser, 400011Z$11499 Pentair 410020 Whisperflo XF union kit without tap Pentair Whisperflo XF Union Kit, 410020$13699 Pentair 400002Z XF Series seal plate for the WhisperFlo XF pump Pentair XF Series Seal Plate for WhisperFlo XF Pump, 400002Z$17399
Pentair 400015Z 3 HP impeller assembly for IntelliFloXF pumps Pentair 3 HP IntelliFloXF VSF, VS Impeller Assembly, 400015Z$11999 Pentair 400010Z Whisperflo XF 3HP pump diffuser Pentair Whisperflo XF 3HP Diffuser, 400010Z$8899 Pentair 074564Z WhisperFlo almond seal plate Pentair WhisperFlo Almond Seal Plate, 074564Z$11099 Pentair 070711 stainless steel clamp band assembly for WhisperFlo pump Pentair WhisperFlo Clamp Band Assembly, Stainless, 070711$8499 Pentair 356012Z seal plate for SuperFlo, Pinnacle and Sta-Rite SuperMax pumps Pentair SuperFlo Seal Plate, 356012Z$8399 Sta-Rite C105-238P impeller for Max-E-Glas II, Dura-Glas II and Max-E-Pro pumps Sta-Rite Max-E-Pro Impeller .75HP Full Rate / 1HP Up Rate, C105-238P$9199 Sta-Rite C105-238PEBAZ Max-E-Pro impeller, 2HP full rate and 2.5HP up rate Sta-Rite Max-E-Pro Impeller 2HP Full Rate/2.5HP Up Rate, C105-238PEBAZ$9199 Pentair 351157 1.5 inch black union kit for SuperMax and SuperFlo pumps Pentair 1.5" Black Union Kit for SuperMax and SuperFlo, 351157$8199 Sta-Rite C105-137PEBZ impeller for Dura-Glas and Max-E-Glas pumps Sta-Rite Impeller 1HP FR/1.5HP UR for Dura-Glas/Max-E Glas, C105-137PEBZ$10699 Sta-Rite C105-238PBZ Max-E-Pro impeller assembly, 1 HP full rate Sta-Rite Max-E-Pro Impeller, 1 HP Full Rate / 1.5 HP Up Rate, C105-238PBZ$9299

Product details

The Pentair 400023Z is the 5 HP impeller assembly for WhisperFloXF and Max-E-ProXF pumps. It fits the XFET-20, XFE-20, XFJ-20 and XFK-20 models in both families.

What the impeller does

It is the rotating disc inside the pump that takes energy from the motor and puts it into the water. Everything downstream, the flow to the filter, the pressure at the returns, the suction that runs a cleaner, comes from this one part turning cleanly inside the volute.

Matching the horsepower

Impellers are sized to the motor. This one is the 5 HP part. Fitting a different size changes the flow curve the pump was designed around, so match the horsepower to what is on your motor plate.

Signs it needs replacing

Weak return flow when the filter is clean and the pump is fully primed is the classic symptom. Open the wet end and you typically find vanes packed with debris, worn thin, or broken away. Because the pump has to come apart to reach the impeller, it is worth having the shaft seal and the seal plate o-ring on hand for the same job.

Specifications
Brand Pentair
Manufacturer part number 400023Z
UPC 788379865009
Type Impeller assembly
Horsepower 5 HP
Fits WhisperFloXF models XFET-20, XFE-20, XFJ-20, XFK-20
Fits Max-E-ProXF models XFET-20, XFE-20, XFJ-20, XFK-20
Shipping weight 2.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this impeller fit?
WhisperFloXF models XFET-20, XFE-20, XFJ-20 and XFK-20, and Max-E-ProXF models XFET-20, XFE-20, XFJ-20 and XFK-20.
Does the horsepower have to match?
Yes. The impeller is matched to the motor output, so a 5 HP pump takes the 5 HP impeller. Fitting the wrong size changes the flow the pump was engineered to deliver.
What does the impeller actually do?
It is the rotating disc inside the pump that transfers energy from the motor into the water, which is what creates flow and pressure.
How do I know mine has failed?
Weak return flow with a clean filter and a full basket of prime, or a pump that runs but never builds pressure. Vanes packed with debris or broken off are what you find when the housing comes apart.
