Pentair 072927Z WhisperFlo diffuser assembly for WFE-3 to WFE-8 pumpsPentair WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z In stock$7999

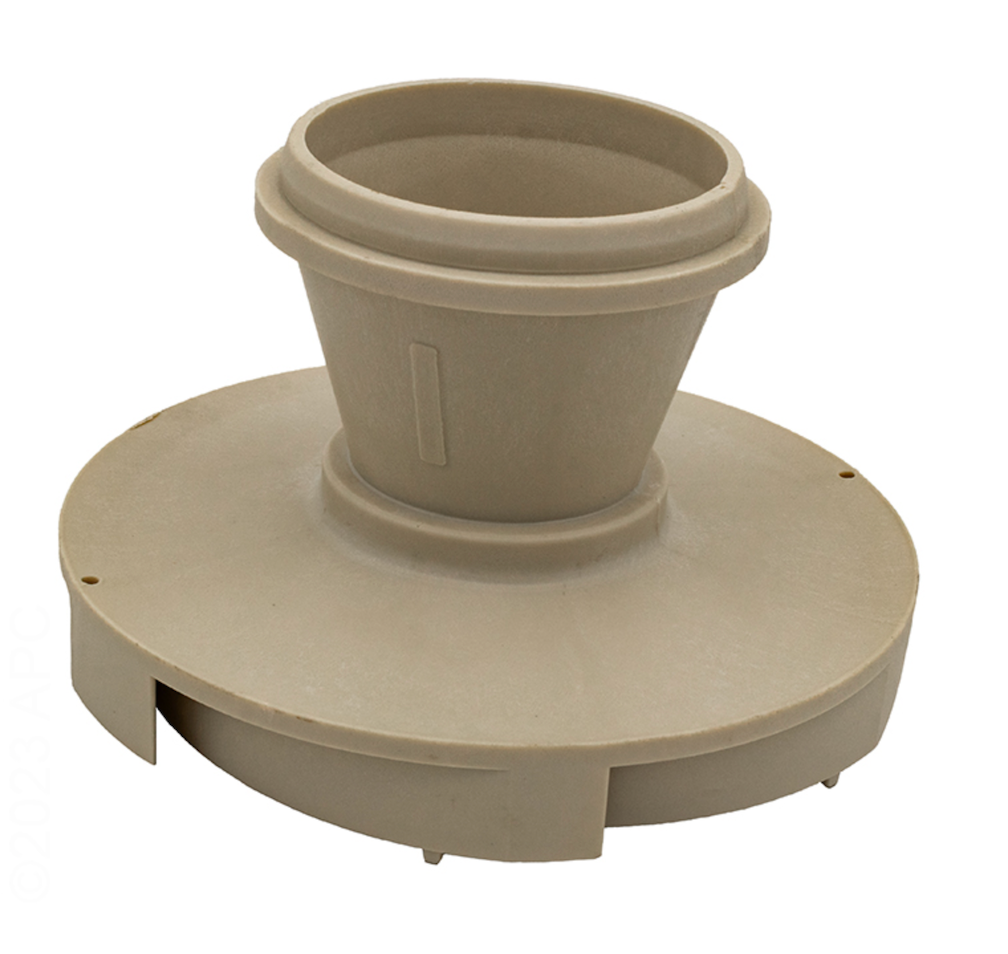

Pentair 072927Z WhisperFlo diffuser assembly for WFE-3 to WFE-8 pumps
Shop all Pentair

Pentair WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z

Ask a questionMPN 072927Z
$7999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory diffuser assembly, part 072927Z.
  • WhisperFlo WFE pumps Listed for the WhisperFlo WFE-3 through WFE-8 high performance models.
  • Check the horsepower against the model The listing gives the range two ways, as .5 HP to 2 HP and as 1/2, 3/4 and 2-1/2 HP, so match the diffuser to the WFE model number rather than the horsepower alone.
  • Sits over the impeller The diffuser wraps the impeller and turns its output into pressure on the way to the volute.
  • Restores lost flow A cracked or worn diffuser lets water slip back past the impeller, so the pump moves less water for the same power draw.
  • Rebuild companion Usually changed with the shaft seal and the gasket kit while the wet end is already open.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z, SKU PUR-101-1058. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z
Pentair

WhisperFlo Diffuser, .5 HP to 2 HP, WFE-3-8, 072927Z

$7999
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Screw 1/4-20 x 1 Left Hand Thread, 071652Z
Pentair

Screw 1/4-20 x 1 Left Hand Thread, 071652Z

$599
Pentair Rubber Impeller Washer Gasket, 075713
Pentair

Rubber Impeller Washer Gasket, 075713

$599
Pentair WhisperFlo XF Seal Plate O-Ring, 351446
Pentair

WhisperFlo XF Seal Plate O-Ring, 351446

$1299
Subtotal

Similar products

Other products people compare with this one.

Pentair 072928Z black 3 HP diffuser assembly for WhisperFlo and IntelliFlo pumps Pentair Black WhisperFlo/IntelliFlo Diffuser Assembly 3HP, 072928Z$4199 Pentair 073131Z 3 hp impeller for WhisperFlo WFE-12 and IntelliFlo pumps Pentair Impeller for IntelliFlo and WhisperFlo 3 HP WFE-12, 073131Z$9099 Pentair 073130Z impeller for 2 and 2.5 HP WhisperFlo pool pumps Pentair WhisperFlo Impeller, 2 and 2.5 HP (WF-8 & 30, WFDS-8 & 30, WFE-30, WFK-8), 073130Z$9499 Pentair 400011Z diffuser for the 5 HP WhisperFlo XF pump Pentair WhisperFlo XF 5 HP Diffuser, 400011Z$11899 Pentair 400010Z Whisperflo XF 3HP pump diffuser Pentair Whisperflo XF 3HP Diffuser, 400010Z$9199 Pentair 073127Z WhisperFlo impeller for .75 and 1 HP pumps Pentair WhisperFlo Impeller .75 and 1 HP (WF-3 & 24, WFE-24), 073127Z$9799 Pentair 073126Z 1/2 HP impeller for the WhisperFlo WFE-2 pump Pentair 1/2 HP Impeller for WhisperFlo WFE-2, 073126Z$9399 Pentair 357151Z clear WhisperFlo pump lid, cam and ramp style Pentair Lid, Clear, WhisperFlo Newer Cam/Ramp Style, 357151Z$4199 Pentair 073128Z 1000 Series impeller for WhisperFlo WFE-4, WF-4, WF-26 and FE-26 pumps Pentair 1 & 1.5 HP WhisperFlo Impeller, 073128Z$9099 Pentair 073129Z 1000 Series WhisperFlo pump impeller Pentair 1.5 HP WhisperFlo Impeller, 073129Z$9399
Pentair 070795 clear Lexan pump lid for WhisperFlo and Aquatron metal clamp style pumps Pentair Lexan Cover for WhisperFlo and Aquatron, Older Metal Clamp Style, 070795$5399 Pentair 400006 WhisperFlo XF lid and locking ring assembly Pentair WhisperFlo XF Lid and Locking Ring, 400006$5999 Pentair 074564Z WhisperFlo almond seal plate Pentair WhisperFlo Almond Seal Plate, 074564Z$11099 Pentair 070711 stainless steel clamp band assembly for WhisperFlo pump Pentair WhisperFlo Clamp Band Assembly, Stainless, 070711$8799 Pentair 400004Z WhisperFlo XF motor base Pentair WhisperFlo XF Motor Base, 400004Z$4299 Pentair 357199Z almond Cam and Ramp strainer lid clamp for WhisperFlo and IntelliFlo pumps Pentair Cam and Ramp Strainer Lid Clamp, Almond, for WhisperFlo and IntelliFlo Pumps, 357199Z$5299 Pentair 400007Z replacement strainer basket for WhisperFloXF and IntelliFloXF pumps Pentair Replacement Basket for WhisperFloXF and IntelliFloXF Pump, 400007Z$4699 Pentair 070927 replacement pump foot base Pentair Pump Foot Base, 070927$4199 Pentair 357156 chemical resistant blue tinted strainer cover for WhisperFlo pumps Pentair Chemical Resistant Strainer Cover, 357156$4999 Pentair 355227Z WhisperFlo WFE diffuser o-ring Pentair WhisperFlo WFE Diffuser O-Ring, 355227Z$699

Product details

The Pentair 072927Z is the diffuser assembly for WhisperFlo pumps, listed for the WFE-3 through WFE-8 high performance models. It is the genuine Pentair part.

What it does

The diffuser sits over the impeller inside the pump housing. Water leaves the impeller vanes fast and turbulent, and the diffuser is what turns that speed into steady pressure before the flow reaches the volute and the discharge. When the diffuser cracks, wears at the impeller face or loses its seal, water recirculates instead of moving on, and the pump pushes less water for the same power.

Matching it to your pump

The listing describes the horsepower coverage two ways: .5 HP to 2 HP in the product name, and 1/2, 3/4 and 2-1/2 HP in the detail. Both readings are carried here rather than picking one. Use the WFE model number stamped on the pump to confirm the fit.

While the pump is open

Reaching the diffuser means opening the wet end, which is the same job as replacing the shaft seal and the housing gasket. Those are separate parts and are worth doing at the same time.

Specifications
Brand Pentair
Manufacturer part number 072927Z
UPC 788379886905
Type Diffuser assembly
Fits Pentair WhisperFlo WFE-3 through WFE-8 high performance pumps
Model reference S05632
Horsepower range .5 HP to 2 HP
Horsepower range, alternate listing 1/2, 3/4 and 2-1/2 HP
Shipping weight 0.64 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this diffuser fit?
Pentair WhisperFlo WFE-3 through WFE-8 high performance pumps.
What horsepower does it cover?
The listing gives two readings. The product name says .5 HP to 2 HP, and the detail says 1/2, 3/4 and 2-1/2 HP. Both are carried here, so match the part to your WFE model number to be certain.
What does a diffuser actually do?
It surrounds the impeller and converts the fast moving water leaving the impeller vanes into pressure, feeding it smoothly into the volute. A damaged diffuser costs the pump efficiency.
Should I replace anything else at the same time?
The shaft seal and the housing gasket are reached in the same teardown. Both are sold separately and are cheap next to a second strip down.
