Sta-Rite C105-238P impeller for Max-E-Glas II, Dura-Glas II and Max-E-Pro pumpsSta-Rite Max-E-Pro Impeller .75HP Full Rate / 1HP Up Rate, C105-238P In stock$9499
Sta-Rite C105-238P impeller for Max-E-Glas II, Dura-Glas II and Max-E-Pro pumps
Shop all Sta-Rite

Sta-Rite Max-E-Pro Impeller .75HP Full Rate / 1HP Up Rate, C105-238P

Ask a questionMPN C105-238P
$9499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two ratings, one impeller Correct for both a 3/4 HP full rated pump and a 1 HP up rated pump.
  • Three pump families Fits the Sta-Rite Max-E-Glas II, Dura-Glas II and Max-E-Pro series inground pumps.
  • Supplied as an assembly Comes as an impeller assembly rather than a bare vane wheel.
  • Rating specific Impellers are matched to horsepower, so the rating on the pump label decides the part number.
  • The cure for weak flow A worn or blocked impeller shows up as poor flow with a clean filter and a clear basket.
  • Genuine part Manufacturer part number C105-238P.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Sta-Rite Max-E-Pro Impeller .75HP Full Rate / 1HP Up Rate, C105-238P, SKU STA-101-8551. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Sta-Rite Max-E-Pro Impeller .75HP Full Rate / 1HP Up Rate, C105-238P
Sta-Rite

Max-E-Pro Impeller .75HP Full Rate / 1HP Up Rate, C105-238P

$9499
Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S
Sta-Rite

Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S

$31099
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ
Sta-Rite

Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ

$29699
Sta-Rite Max-E-Pro Seal Plate, C103-194PZ
Pentair

Sta-Rite Max-E-Pro Seal Plate, C103-194PZ

$7299
Sta-Rite Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ
Sta-Rite

Max-E-Glas/Dura-Glas Diffuser .75HP / 2.5HP Full Rated, C1-200PAZ

$4399
Sta-Rite Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P
Sta-Rite

Seal Plate Kit for Max-E-Pro, Max-E-Glas II and Dura-Glas II C203-194P

$17299
Subtotal

Similar products

Other products people compare with this one.

Sta-Rite 17307-0111S Max-E-Pro trap cover lid assembly Sta-Rite Max-E-Pro Trap Cover Lid Assembly, 17307-0111S$8199 Pentair 355074Z high flow pump impeller, 1 HP full rated and 1.5 HP up rated Pentair Super Flo/Max Impeller, 1 HP Full Rated / 1.5 HP Up Rated, High Flow, 355074Z$6099 Sta-Rite C19-37AZ V clamp for the pump tank body Sta-Rite Tank Body V Clamp, C19-37AZ$11999 Pentair 355086Z high flow impeller for SuperFlo, SuperMax and Challenger pumps Pentair SuperFlo and SuperMax Impeller, 1.5 HP Full Rated / 2 HP Up Rated, High Flow, 355086Z$5999 Pentair 355093Z impeller, 2 HP full rated and 2-1/2 HP up rated high flow Pentair Impeller, 2 HP Full Rated / 2-1/2 HP Up Rated, High Flow, 355093Z$5499 Sta-Rite C3-185PZ 6 inch Dyna-Glas trap lid assembly Sta-Rite Dyna-Glas Trap Lid Assembly, C3-185PZ$7699 Sta-Rite PKG 189 union connection kit, 2 inch by 2 inch FPT Sta-Rite Union Connection Kit 2" x 2" FPT, PKG 189$5399 Sta-Rite C104-79P pump base with motor pad for 3 HP models Sta-Rite Base with Motor Pad, 3 HP Only, C104-79P$6099 Pentair 400023Z WhisperFlo XF 5 HP impeller assembly Pentair WhisperFlo XF 5 HP Impeller, 400023Z$13499 Pentair 356012Z seal plate for SuperFlo, Pinnacle and Sta-Rite SuperMax pumps Pentair SuperFlo Seal Plate, 356012Z$8699
Pentair 400011Z diffuser for the 5 HP WhisperFlo XF pump Pentair WhisperFlo XF 5 HP Diffuser, 400011Z$11599 Pentair 351157 1.5 inch black union kit for SuperMax and SuperFlo pumps Pentair 1.5" Black Union Kit for SuperMax and SuperFlo, 351157$8299 Pentair 355618Z SuperFlo and SuperMax diffuser, 1-1/2 HP thru 2 HP Pentair SuperFlo and SuperMax Diffuser, 1-1/2 HP Thru 2 HP, 355618Z$9499 Pentair 350094 Superflo pump base Pentair Superflo Pump Base, 350094$10099 Pentair 355617Z diffuser for SuperFlo and SuperMax pumps, 1/2 HP through 1 HP Pentair SuperFlo Diffuser, 1/2 HP Thru 1 HP, 355617Z$8899 Sta-Rite C1-271P1Z diffuser for Max-E-Pro series pumps Sta-Rite Diffuser 1/2 HP to 1-1/2 HP for Max-E-Pro Series Pumps, C1-271P1Z$4299 Sta-Rite 37337-6080 impeller screw for Dyna-Pro pumps Sta-Rite Impeller Screw for Dyna-Pro, 37337-6080$3399 Sta-Rite 35505-1440Z trap cover o-ring for Max-E-Pro pumps Sta-Rite Trap Cover O-Ring, Max-E-Pro, 6-3/4" ID, 1/4" Thickness, 35505-1440Z$3199 Aladdin GO-KIT79 seal and gasket kit for Sta-Rite Max-E-Pro pumps Aladdin Seal & Gasket Kit for Sta-Rite Max-E-Pro Series Pool Pumps, GO-KIT79$3099 Sta-Rite C8-58P Max-E-Pro pump trap basket Sta-Rite Max-E-Pro Trap Basket, C8-58P$1799

Product details

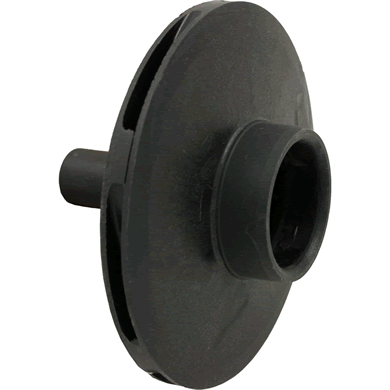

The C105-238P is the impeller assembly for the Sta-Rite Max-E-Glas II, Dura-Glas II and Max-E-Pro series inground pumps, rated 3/4 horsepower full rate and 1 horsepower up rate.

Matching the rating

Impellers are cut for a specific horsepower. The same pump housing takes several different impellers, and fitting the wrong one changes the flow the pump produces. Read the full rate or up rate designation off the pump label rather than going by the horsepower figure alone, since 3/4 HP full rate and 1 HP up rate are the same impeller here.

When to replace it

Weak flow with a clean filter, an empty pump basket and no air in the lid usually means the impeller. Either the vanes have worn away their edges over years of service, or the narrow passages between them have packed with hair, pebbles or leaf fragments.

While you are in there

Reaching the impeller means pulling the motor assembly out of the housing, which puts the shaft seal right in front of you. It is the standard companion part on this job.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read

Where this part goes

10 Key 10 on the Sta-Rite Max-E-Pro PumpFor the P6E6D-205L (3/4 HP), P6R6D-205L (3/4 HP), P6EA6E-205L (1 HP), P6RA6E-205L (1 HP).See it on the diagramAll Sta-Rite Max-E-Pro Pump Parts 79 parts and the drawing
Specifications
Brand Sta-Rite
Manufacturer part number C105-238P
UPC 788379734305
Type Impeller assembly
Rating 3/4 horsepower full rate, 1 horsepower up rate
Fits Sta-Rite Max-E-Glas II, Dura-Glas II and Max-E-Pro Series inground pumps
Part type Pool pump part
Shipping weight 0.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Sta-Rite

Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$48299 Pentair 461105Z MasterTemp and Max-E-Therm six button control board kit Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z$53999 Pentair 272568Z six position top mount clamp valve top assembly Pentair 6-Position Top Mount Clamp Valve Top Assembly, 272568Z$15199 Filbur FS-3037 full 11 grid set for the Sta-Rite System 3 S7D75 DE filter Filbur Sta-Rite S7D75 Full Filter Grid Set (11 Grids), FS-3037$24599 Sta-Rite 08428-0125 SwimQuip white inlet face plate and eyeball kit with screws Sta-Rite Face Plate Inlet Eyeball Kit with Screws, 08428-0125$3299 Sta-Rite 17307-0110S pump tank body assembly for IntelliPro and Max-E-Pro pumps Sta-Rite Pump Tank Body Housing Assembly, IntelliPro, 17307-0110S$31099 Sta-Rite 27002-0300S 300 square foot MOD media replacement filter module for the PLM300 Sta-Rite 300 Sq. Ft. Filter Replacement MOD Media, 27002-0300S$57199 Pentair 170147 large and small cartridge filter pack for the Sta-Rite System:3 S8M150 Pentair Sta-Rite S8M150 Large and Small Cartridge Filter Pack 25021-0202S & 25022-0203S, 170147$77199 Sta-Rite 27001-0020S System 2 black upper tank shell half Sta-Rite System 2 Tank Shell Upper Half, Black, 27001-0020S$29099 Sta-Rite 77707-0054 Max-E-Therm igniter with gasket kit Sta-Rite Max-E-Therm Igniter with Gasket Kit, 77707-0054$9399
Sta-Rite 178745Z 12.5 in. Posi-Clear RP replacement filter lid, top view Sta-Rite 150/200 Sq Ft Posi-Clear RP Replacement Lid, 12.5 in., 178745Z$15099 Sta-Rite C176-59PZ tank body assembly for Max-E-Glas II and Dura-Glas II pumps Sta-Rite Tank Body Assembly for Max-E-Glas II and Dura-Glas II, C176-59PZ$29699 Pentair 474957 combustion chamber assembly for Sta-Rite Max-E-Therm heaters Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957$37399 Pentair Sta-Rite 474061 cupro nickel tube sheet coil assembly kit for MasterTemp 400NA and 400LP Sta-Rite Tube Sheet Coil Assembly Kit for Model 400NA, 400LP MasterTemp Heater, 474061$1,25399 Sta-Rite C103-194PZ Max-E-Pro pump seal plate, front view Sta-Rite Max-E-Pro Seal Plate, C103-194PZ$7299 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3699 Pentair 356893Z IntelliPro VSF drive kit with keypad, black Pentair IntelliPro VSF Drive Kit with Keypad, Black, 356893Z$1,22699 Sta-Rite 42001-0061S air flow switch for Max-E-Therm SR200, SR333 and SR400 heaters Sta-Rite Max-E-Therm Air Flow Switch, 42001-0061S$15799

Questions and answers

What people ask about this product, answered by our pool techs.

Which horsepower does this impeller suit?
It is the 3/4 horsepower full rate and 1 horsepower up rate impeller. Read the rating off the pump label, not just the horsepower number.
Which pumps does it fit?
The Sta-Rite Max-E-Glas II, Dura-Glas II and Max-E-Pro series inground pumps.
Does it include the shaft seal?
No. The listing is the impeller assembly. The shaft seal is a separate part and is worth replacing at the same time since the impeller has to come off to reach it.
How do I know the impeller is the problem?
Poor flow with a clean filter, a clear pump basket and no air leak usually points at the impeller, either worn vanes or debris packed into the passages.
