Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbsLaing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K In stock$19599
Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbs
Shop all Hydro-Quip

Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K

Ask a questionMPN 10-0102-K
$19599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Replaces the SilentFlo 5000 swaps in for part 72204 and all earlier single speed circulation pumps on Caldera, Hot Spring and Tiger River spas.
  • Cross references 74427 the Watkins, Hot Spring, Caldera and Tiger River part number for this pump.
  • Low draw 39 watts, moving up to 6,000 gallons in 24 hours.
  • Magnetic drive starts gradually and primes reliably.
  • Dry run protection a thermal cut-off shuts the pump down if it runs without water; power off 10 seconds to reset.
  • Cord included 4 ft cord fitted, 3/4 in. barb connections.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K, SKU HQP-85-0102. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K
Hydro-Quip

Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K

$19599
Air Supply of the Future Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100
Air Supply of the Future

Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100

$34900
Cover Butler Spa Cover Lifter, Black, CB-BLACK
Cover Butler

Spa Cover Lifter, Black, CB-BLACK

$16099
Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500
Air Supply of the Future

2" Clear Check Valve for Blowers, 1112500

$2799
Air Supply of the Future Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241
Air Supply of the Future

Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241

$23099
Balboa Slimline Escutcheon and Eyeball White 10-3955, 10-3955WHT
Hydro Air/itt Industries

Balboa Slimline Escutcheon and Eyeball White 10-3955, 10-3955WHT

$1399
Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127
Waterway

Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127

$1999
Subtotal

Similar products

Other products people compare with this one.

SuperPro SUPER120010SW 1 HP 120V quiet spa blower with on/off switch SuperPro 1 HP 120V Quiet Spa Blower with On/Off Switch, SUPER120010SW$26699 Air Supply of the Future 2510231 spa air blower, 1 HP 240V Air Supply of the Future 1 HP 240V 2.4A Max Spa Air Blower 2510231$13499 Cover Valet CVROCK-IT Cover Rock-It bar style spa cover lifter Cover Valet Cover Rock-It Bar Style Spa Cover Lifter, CVROCK-IT$18699 SuperPro SUPER120010 1 HP 120V quiet pool and spa air blower SuperPro 1 HP, 120V, Quiet Pool Spa Air Blower, SUPER120010$27499 Cover Valet CV250 spa cover lift Cover Valet Hydraulic Spa Cover Lift, CV250$24199 Hayward SPB151 spa air blower, 1.5HP 115V Hayward SPB151 Spa Air Blower 1.5HP 115V$27499 Hayward SPB102 spa air blower, 1HP 230V Hayward Spa Air Blower 1HP 230V, SPB102$27299 Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201 Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201$11799 Air Supply of the Future Silencer air blower, 2.0 HP 120V, part 6320141 Air Supply of the Future Silencer Air Blower, 2.0HP, 120V, 11.0 Amps, 6320141$22399 Air Supply of the Future Ultra 9000 spa blower, part 3910131, angled view Air Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131$13899
Balboa G7415 FloThru spa heater assembly, 4.0kW 230V, without mounting studs Balboa G7415 FloThru Heater 4.0kW, 230V, without Mounting Studs, G7415-01$17900 Web Price Gecko Aqua-Flo 2" 2HP XP2E 56FR Wet End | 91041920-000 Gecko Aqua-Flo 2" 2HP XP2E 56FR Wet End | 91041920-000$11399 Waterway Tiny Might 1-16HP 115V | 3312610-14 Waterway Tiny Might 1-16HP 115V | 3312610-14$28399 CMP Spa Master 25580-090-000 white 2-1/2 inch gunite jet body with niche CMP Spa Master 2-1/2" White Gunite Jet Body with Niche, 25580-090-000$2699 Life Essentials LST600 deluxe adjustable spa tray table Life Essentials Deluxe Adjustable Spa Tray Table, LST600$6599 CMP 23315-030-200 Spa Master 1.5 inch jet internal pulsator in white and stainless steel CMP Spa Master 1.5" Gunite Jet Internal Pulsator, Stainless Steel/White, 23315-030-200$5099 Natural Chemistry Spa Perfect 2L | 04034 Natural Chemistry Spa Perfect 2L | 04034$4299 Natural Chemistry Spa Metalfree 1L | 04133 Natural Chemistry Spa Metalfree 1L | 04133$3199 Natural Chemistry Spa Perfect 1L | 04131 Natural Chemistry Spa Perfect 1L | 04131$2899 SuperPro 25098-000-000 1 in. S white air control assembly for gunite and fiberglass spas SuperPro 1" S White Air Control Assembly for Gunite/Fiberglass Spa, 25098-000-000$2299

Product details

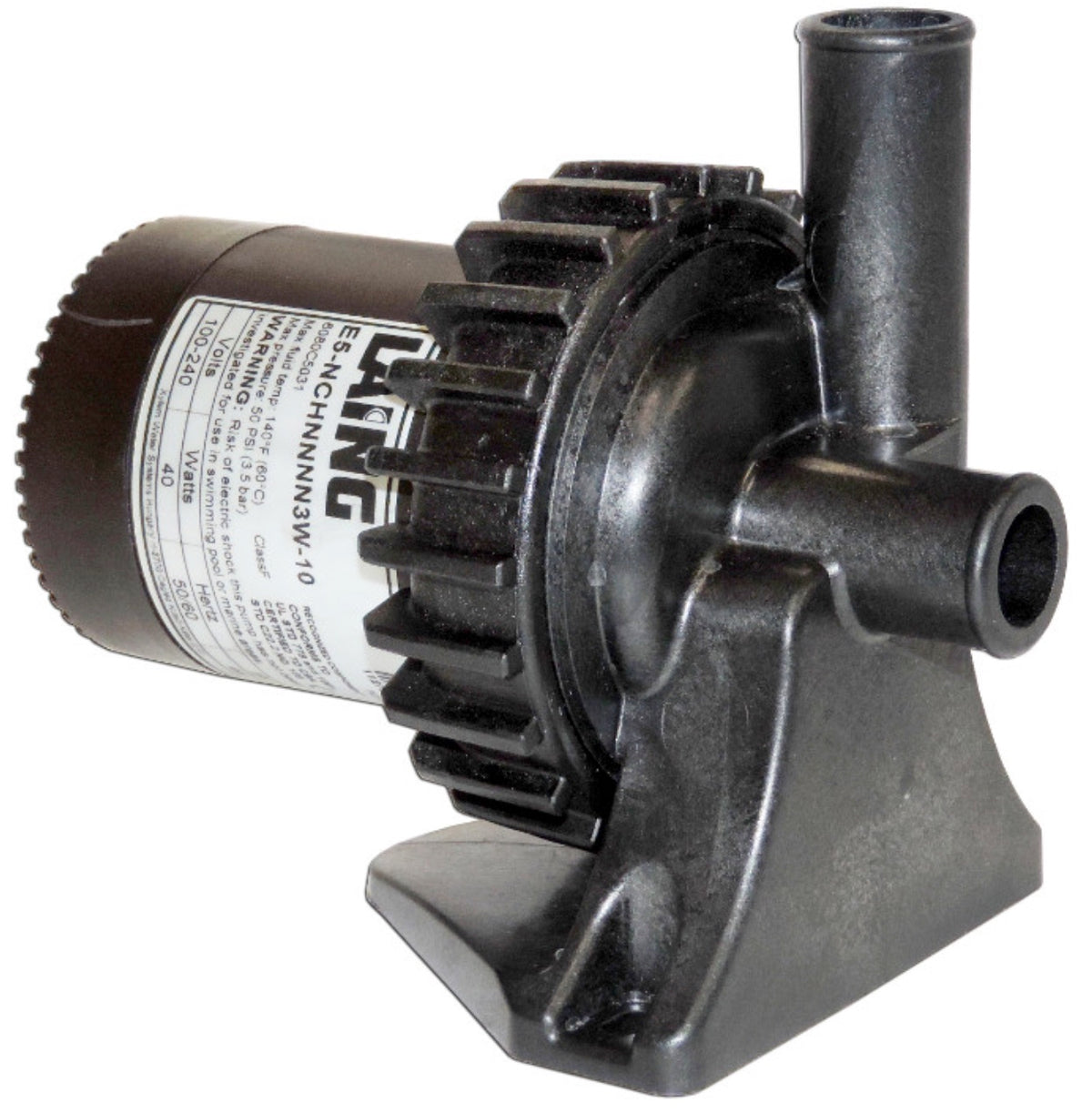

The Laing Thermotech E5, part 10-0102-K, is a spa circulation pump with 3/4 in. barb connections and a 4 ft cord fitted. It is the current replacement for the SilentFlo 5000 (72204) and all earlier single speed circulation pumps on Caldera, Hot Spring and Tiger River spas, where it carries the Watkins part number 74427. HydroQuip lists it as 10-0102-K and Laing as E5-NCHNNNN3W-10.

Performance

The E5 draws 39 watts and moves up to 6,000 gallons of water in 24 hours, a step up in capacity over the models it replaces. The magnetic drive starts gradually and primes with water reliably.

Run it wet

The pump is water lubricated and should only be run with water in the spa. If it does run dry, a thermal cut-off shuts it down before it overheats; switch it off for 10 seconds and back on to reset.

Wiring note

This newer model no longer needs a bonding lug. Connect the green wire in the cord to a grounding location inside the controller.

Specifications
Brand Laing Thermotech
Manufacturer part number 10-0102-K
Model E5
Also known as Laing E5-NCHNNNN3W-10, HydroQuip 10-0102-K
Voltage 120/240V
Power consumption 39 Watts
Flow Up to 6,000 gallons per 24 hours
Connections 3/4 in. barb
Cord 4 ft, included
Drive Magnetic drive startup
Protection Thermal cut-off on dry run
Replaces SilentFlo 5000 (72204) and earlier single speed circulation pumps
Cross reference Watkins 74427, Hot Spring 74427, Caldera 74427, Tiger River 74427
Shipping weight 2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hydro-Quip

Hydroquip 34-0019-C pressure switch, model 4037P Hydroquip Pressure Switch, 4037P, 34-0019-C$2399 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hydroquip 12-0102-K 4 kW Incoloy heater element with hardware Hydroquip 4 kW Incoloy M7 Heater Element with Hardware, 240V, 12-0102-K$4099 Hydro-Quip 12-0100F-K 5.5kW titanium M7 heater element Hydro-Quip 5.5kW Titanium M7 Heater Element, 12-0100F-K$5299 Hydroquip 12-0102F-K 4kW titanium M7 heater element Hydroquip 4kW Titanium M7 Heater Element, 12-0102F-K$5499 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$29399 Hydroquip 12-0100-K 5.5kW RHS flow through heater element with hardware Hydroquip 5.5kW RHS Heater Element with Hardware, 12-0100-K$3899 HydroQuip 34-0178 1 amp pressure switch HydroQuip 1 Amp Pressure Switch, 34-0178$4599 Hydroquip 60-0015 2 inch ridged rubber union gasket Hydroquip 2" Ridged Gasket, 60-0015$799
Hydro-Quip BHS-55-3W BCS-55 series baptismal equipment system with 5.5kW heater, 240V Hydro-Quip BCS-55 Series Baptismal Equipment, 5.5kW Heater, 240V, BHS-55-3W$34799 Hydro-Quip BES6000 baptismal 5.5 kW heating and control system, 120/240V Hydro-Quip Baptismal Equipment 5.5 kW Heating and Control System, 120/240V, BES6000$84399 Hydro-Quip PBES6040 portable baptismal heater and pump package Hydro-Quip Portable Baptismal Equipment, 4.0 kW Heater and Pump, 240V, PBES6040$72799 Hydro-Quip BES6005 11kW baptismal heating and control system Hydro-Quip BES6005 Baptismal Heating and Control System, 11kW$89699 Hydro-Quip PBES-6010 portable baptismal equipment with 1.0kW heater and pump Hydro-Quip PBES6010 Portable Baptismal Equipment, 1.0kW Heater and Pump, 120V$65399 Hydro-Quip BIS-60-240-GF Immersion Series baptistry heater, 6.0 kW 240V Hydro-Quip Immersion Series Baptistry Heater, 6.0 kW 240V 30 Amp GFCI, BIS-60-240-GF$57499 Hydro-Quip BES-55 baptismal equipment pack with 5.5kW heater and pump Hydro-Quip BES-55 Series Baptismal Equipment, 5.5kW Heater and Pump, 120/208/240V$67199 Hydro-Quip BES6005T baptismal 11kW heating and control system with 7 day timer Hydro-Quip Baptismal 11kW Heating and Control System with 7 Day Timer, BES6005T$70999 HydroQuip BCS6000-U 5.5 kW baptistry heating control system HydroQuip 5.5 kW Baptistry Heating Control System, without Pump Option, BCS6000-U$53099

Questions and answers

What people ask about this product, answered by our pool techs.

Which spas does this pump fit?
Caldera, Hot Spring and Tiger River spas by Watkins that used the SilentFlo 5000 (72204) or an earlier single speed circulation pump. The Watkins part number is 74427. It also cross references HydroQuip 10-0102-K.
Do I need a bonding lug?
No. This newer model does away with the bonding lug, but the green wire in the cord must be connected to a grounding point inside the controller.
What happens if it runs dry?
A built in thermal cut-off shuts the pump off to prevent overheating. Turn it off for 10 seconds, then back on, once the spa has water in it. Always run it wet; the pump is water lubricated.
How much water does it move?
Up to 6,000 gallons in 24 hours while drawing 39 watts.
