Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859 In stock$70999
Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859
$70999
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- Complete kit power center, 20 ft water temperature sensor, 40 in. air temperature sensor and three relays.
- Single body designed for pool and spa combinations that share one filtration system.
- Scheduling built in every circuit can hold 4 operating schedules, up to 6 schedules per system.
- Four feature circuits run a cleaner, lights or solar on their own schedules alongside filtration.
- Any heat source works with gas or electric heaters, heat pumps and solar systems, with 1 degree setpoints.
- Pentair ecosystem supports one IntelliFlo pump and the IntelliChlor salt chlorine generator.
Need a hand?
Bilingual support from pool professionals.
Similar products
Other products people compare with this one.
Hayward Digital Control Interface Assembly, SPX3200LCD$44599
Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2$55099
Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317$59900
Web Price
Hayward ColorLogic Light Controller, Standalone, LKCUS1100$37699
Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050$52199
Hayward Sense and Dispense pH Dispense, 120V Solenoid Valve for CO2, AQL-CHEM2$44599
Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,03699
Hayward AQL2 Wireless Base Station, AQL2-BASE-RF$35799
Pentair EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548$57399
Pentair Color Sync Controller, 618031$38499
Hayward Wireless Spa Side Remote, AQL2-SS-RF$55399
Pentair Genuine OEM iS4 Spa-side Remote, Gray, 100 ft., 521886$36499
Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900
Web Price
Hayward AquaSolar Control, GL-235$39699
Hayward HLXPLCONTROL Replacement OmniPL Controller$78699
S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$87399
Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10P, for LC/PC, 522045$1,04199
Pentair IntelliCenter White Indoor Control Panel, 522035$53199
Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900
Web Price
Pentair IntelliTouch/EasyTouch to IntelliCenter Next Generation Upgrade Kit CLC/CPC, 523529$96599
From Pentair
Pentair equipment
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028
Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301
Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Genuine Pentair parts
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair
Product details

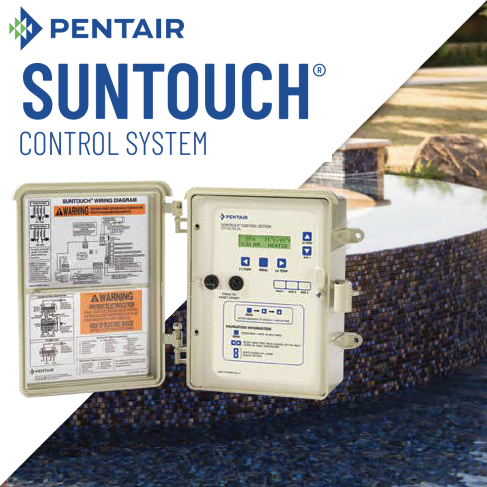

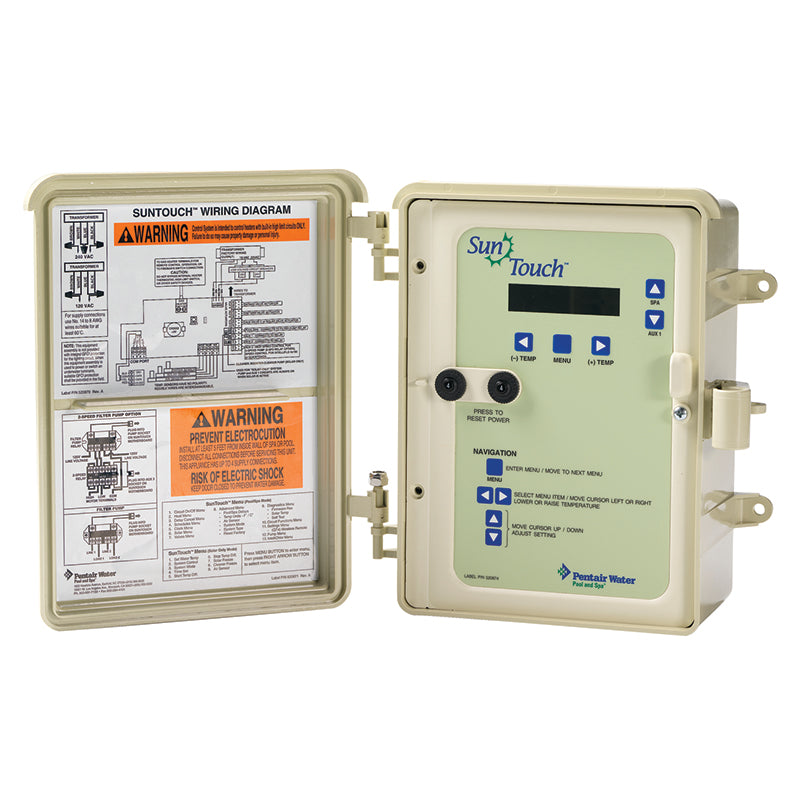

The Pentair SunTouch 520859 is a single body control system for a pool and spa that share one filtration system. It replaces the mechanical time clock with a power center that runs the pump, heater and up to four feature circuits on schedules, with manual override when you want the spa on now.
What it controls
Each circuit can hold 4 operating schedules, up to 6 per system, so filtration, cleaner, lights and solar can each run on their own timing. It works with gas or electric heaters, heat pumps and solar, and holds temperature in 1 degree steps. It also supports one IntelliFlo pump and the IntelliChlor salt chlorine generator, so pump speed and chlorine output live in the same control.
Why bother
Scheduling lets you run the pump during off peak electrical rates and stop paying for hours you do not need. Heating the spa on demand instead of leaving it up to temperature is the other saving.
In the box
One power center, one 20 ft water temperature sensor, one 40 in. air temperature sensor and three relays.
| Brand | Pentair |
|---|---|
| Manufacturer part number | 520859 |
| UPC | 788379747527 |
| Type | SunTouch single body control system |
| Application | Pool and spa combinations sharing one filtration system |
| Schedules | 4 operating schedules per circuit, maximum 6 per system |
| Feature circuits | 4 |
| Heater compatibility | Gas or electric heaters, heat pumps and solar systems |
| Temperature control | 1° increments |
| Pump support | One IntelliFlo pump |
| Chlorinator support | IntelliChlor salt chlorine generator |
| Included | 1 power center, 1 x 20 ft water temperature sensor, 1 x 40 in. air temperature sensor, 3 relays |
| Shipping weight | 8.4 lb |
| Ships | Parcel |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Pentair
Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900
Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1)
$74800
Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900
Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399
Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900
Web Price
Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199
Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900
Web Price
Pentair Rainbow 320 In-Line Chlorinator, R171096$14699
Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900
Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900
Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799
Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999
Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1)
$38399
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799
Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199
Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
What does single body mean?
The pool and spa share one filtration system, with valves switching water between them. SunTouch single body is built for that layout. A pool and spa with separate pumps and filters is a different setup.
What is in the box?
The power center, a 20 ft water temperature sensor, a 40 in. air temperature sensor and three relays.
Can it run a variable speed pump and a salt system?
Yes. It supports one IntelliFlo pump and the IntelliChlor salt chlorine generator.
How many schedules can I set?
Each circuit can hold 4 operating schedules, with a maximum of 6 schedules across the system. Four feature circuits are available for things like a cleaner, lights or solar.
