Product details

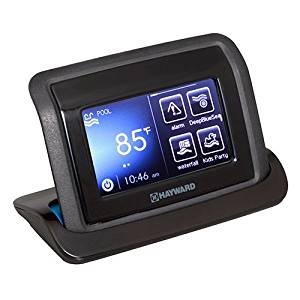

The Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS is a rechargeable, waterproof, floating touchscreen remote for Hayward Omni pool and spa automation. It lets you change settings from the deck, the spa side or the water instead of at the equipment pad.

How it connects

The remote does not talk to the OmniLogic directly. It is 802.11 b/g/n and communicates through your home 2.4 GHz Wi-Fi router, with a line of sight range of 300 feet to the router or access point. It must be on the same network name (SSID) as the OmniLogic. Battery life is up to two days, and Hayward says the battery cannot be replaced by the user.

Compatibility

Hayward lists the HLWIRELESS for OmniLogic, OmniLogic+, OmniPL and OmniHub systems. With an OmniPL, a router is needed to connect both the OmniPL and the remote. Hayward's guide calls for minimum firmware 2.0.0 on the wired wall mount and the Main System Processor, and 1.0.5 on the Main Panel Processor, and says to upgrade the wall mount first. It is a separate item from the OmniPL retrofit kit, which converts an older Pro Logic system; this listing is the remote only.

Care

Never put the remote in its charger while it is wet. Hayward warns that this can lead to accelerated product failure or corrosion. The HLX-CRADLE charging base appears in Hayward's product questions and answers as its own item, so confirm what you need for charging.

Specifications
Brand Hayward
Manufacturer part number HLWIRELESS
Type Waterproof wireless remote
Connection Wireless
Fits Hayward OmniLogic
Wi-Fi 802.11 b/g/n, 2.4 GHz, through your home router
Range 300 ft line of sight to the router or access point
Battery life Up to two days, not user replaceable
Dimensions 6.34 x 3.5 x 4.0 in (L x W x H, including base)
Also compatible with OmniLogic+, OmniPL, OmniHub
Shipping weight 1.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SP0714T$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which Hayward systems does this remote work with?
It is the OmniLogic wireless remote, Hayward part HLWIRELESS.
Is it really waterproof?
Hayward lists it as a waterproof remote, so it is built for use at the pool edge and in the water.
Does it need wiring?
No. It is wireless, so there is no cable run back to the OmniLogic.
Is this the same as the OmniPL retrofit kit?
No. The retrofit kit converts a Pro Logic system to OmniPL. This is the handheld remote.
