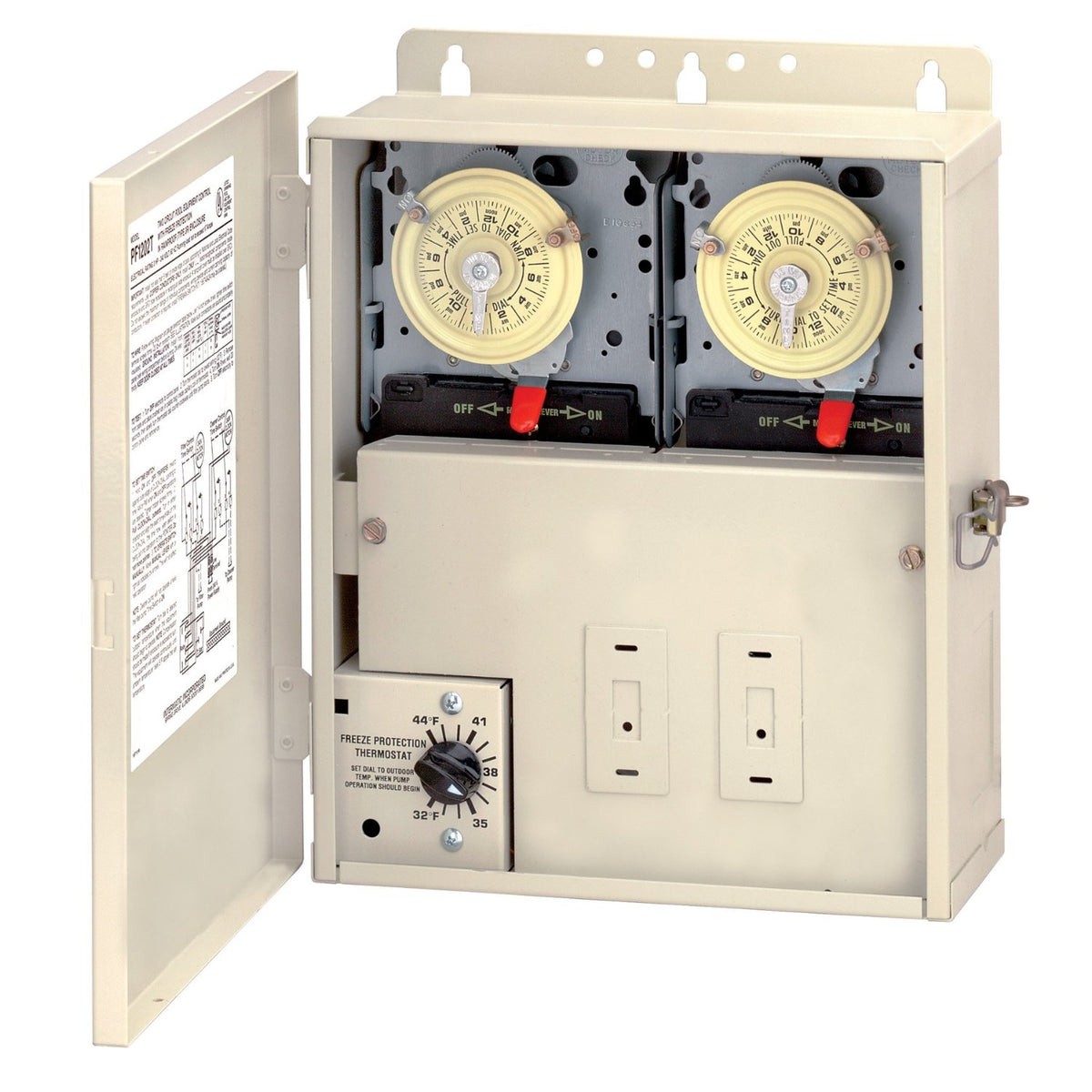

Intermatic PF1202T multi circuit freeze protection dual timer switch in its enclosureIntermatic Multi Circuit Freeze Protection Dual Timer Switch, PF1202T In stock$57957 Web Price
Intermatic PF1202T multi circuit freeze protection dual timer switch in its enclosure
Shop all Intermatic

Intermatic Multi Circuit Freeze Protection Dual Timer Switch, PF1202T

Ask a questionMPN PF1202T
$57957 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Two time switches Built for pools that need two clocks, such as a filter pump plus a booster pump for a cleaner.
  • Freeze protection The thermostat turns the pump and heater on when the outdoor temperature drops below the point you set.
  • Protects plumbing and equipment Moving water through a cold snap is what keeps pipes, pump and heater from freeze damage.
  • You set the trip point The thermostat is user adjustable rather than fixed at a factory temperature.
  • Rated 240 VAC, 3 HP Sized for 240 volt pool equipment up to 3 HP.
  • Room for switches or a receptacle The enclosure has provision for switches inside or a GFCI receptacle on the side.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic Multi Circuit Freeze Protection Dual Timer Switch, PF1202T, SKU INT-30-640. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic Multi Circuit Freeze Protection Dual Timer Switch, PF1202T
Intermatic

Multi Circuit Freeze Protection Dual Timer Switch, PF1202T

$57957 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26999
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9599
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$31199
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7299
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX3200LCD digital control interface assembly for TriStar VS pumps Hayward Digital Control Interface Assembly, SPX3200LCD$45999 Hayward AquaPod 2.0 AQL2-POD2 wireless waterproof touchscreen remote Hayward AquaPod 2.0 Wireless Waterproof Touchscreen Remote, AQL2-POD2$56799 Pentair IntelliConnect EC-523317 control and monitoring system, front view Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317$59900 Web Price Hayward LKCUS1100 ColorLogic standalone light controller Hayward ColorLogic Light Controller, Standalone, LKCUS1100$38099 Jandy 8050 four function spa side remote switch, gray, with 150 ft cable Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050$52199 Pentair 521885 iS4 four-function spa-side remote, white, 100 ft. cable Pentair Genuine OEM iS4 Spa-Side Remote, White, 100 ft., 521885$31999 Hayward AQL-CHEM2 Sense and Dispense pH Dispense 120 V CO2 solenoid valve Hayward Sense and Dispense pH Dispense, 120V Solenoid Valve for CO2, AQL-CHEM2$45999 Pentair SunTouch 520859 single body control system power center Pentair SunTouch Single Body Control System, Includes Temp Sensors and 3 Relays, 520859$73099 Hayward AQL2-BASE-RF AQL2 wireless base station Hayward AQL2 Wireless Base Station, AQL2-BASE-RF$36899 Pentair 520548 EasyTouch Indoor Control Panel for 4 circuit systems Pentair EasyTouch Indoor Control Panel for 4 Circuit Systems, 520548$59099
Pentair 618031 Color Sync Controller for color changing pool lights Pentair Color Sync Controller, 618031$39299 Hayward AQL2-SS-RF wireless spa side remote Hayward Wireless Spa Side Remote, AQL2-SS-RF$57099 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Hydroquip 50-BP7-600-40-K BP7 Water Pro Series three load retro-fit control system Hydroquip BP7 Water Pro Series Control System, 4.0 kW, TP600, Three Load Retro-Fit Kit, 50-BP7-600-40-K$57900 Web Price Hayward GL-235 AquaSolar dual differential solar control Hayward AquaSolar Control, GL-235$40999 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller$81099 Pentair 521441 load center for IntelliTouch and EasyTouch control systems Pentair 521441 Load Center for IntelliTouch, IntelliChlor SCG Transformer, EasyTouch and EasyTouch PL4/PSL4 Control System$29699 Pentair 521892 iS4 black four function spa-side remote control Pentair Black iS4 4-Function Spa-Side Remote Control with 100 ft Cord, 521892$32699 Pentair 522035 IntelliCenter white indoor control panel Pentair IntelliCenter White Indoor Control Panel, 522035$54899 Hydro-Quip 50-BP7-600-55-K Water Pro BP7 spa control with TP600 topside panel Hydro-Quip TP600 Controller 5.5kW BP7 Retro-Fit Kit, 50-BP7-600-55-K$57900 Web Price

Product details

The Intermatic PF1202T is a heavy duty freeze protection control for pools that need two time switches. One clock can run the filter pump on its normal schedule while the second handles a booster pump for a pressure cleaner, and the whole assembly sits in a single enclosure at the equipment pad.

How the freeze protection works

A thermostat watches the outdoor temperature. When it falls below the point you set, the control turns the pump and heater on regardless of what the clocks are doing. Water that keeps moving does not freeze, which is what protects the plumbing, the pump and the heater through a cold night.

Ratings and wiring

Input is 240 VAC and the unit is rated to 3 HP. The enclosure has provision for switches to be mounted inside, or for a GFCI receptacle on the side, so a service switch or an outlet can be added at the same time as the install.

Where it is used

Typical loads are filter pumps, a filter pump paired with a booster pump, fountains, and pool and spa combinations. Have the wiring done by an electrician familiar with pool equipment and local code.

Specifications
Brand Intermatic
Manufacturer part number PF1202T
UPC 078275073593
Type Freeze protection control with dual time switch
Input rating 240 VAC
Horsepower 3 HP
Time switches Two
Thermostat User adjustable
Description For pools with cleaner, requiring two time switches
Applications Filter pumps, filter pump and booster pump, fountains, combinations, pool and spa combinations
Shipping weight 10 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499

Questions and answers

What people ask about this product, answered by our pool techs.

When does this switch the equipment on?
When the outdoor temperature falls below the point set on the thermostat, it turns the pump and heater on so water keeps moving.
Why two time switches?
It is built for a pool that runs two independently timed loads, for example a filter pump and a booster pump for a pressure cleaner.
What power does it need?
It is rated for 240 VAC input and loads up to 3 HP.
Can I add a switch or a receptacle to it?
Yes. The enclosure allows switches to be installed inside, or a GFCI receptacle on the side of the enclosure.
