Intermatic P1131 20 amp portable outdoor timer with twist-lock plugIntermatic 20A Timer with Twist-Lock Plug, P1131 In stock$11499
Intermatic P1131 20 amp portable outdoor timer with twist-lock plug
Shop all Intermatic

Intermatic 20A Timer with Twist-Lock Plug, P1131

Ask a questionMPN P1131
$11499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Rated 20 amp Heavy duty construction at a 20 A rating rather than a light domestic timer.
  • Twist-lock plug and receptacle Plug and socket both twist-lock, so the connection cannot be pulled apart by accident.
  • Built for outdoors Designed as a portable outdoor time clock, not an indoor appliance timer.
  • Portable spa and above ground pools Intended to control the filter pump on a portable spa or an above ground pool.
  • Plug in, no wiring It sits between the existing outlet and the pump cord, so no panel work is involved.
  • Also for seasonal lighting The same timer handles switching outdoor decorations on and off.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 20A Timer with Twist-Lock Plug, P1131, SKU INT-30-839. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 20A Timer with Twist-Lock Plug, P1131
Intermatic

20A Timer with Twist-Lock Plug, P1131

$11499
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012
Gecko Alliance

Gecko Aeware IN.K450 7-Button Control Panel with Overlay, 0607-005012

$17399
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26999
Hayward Digital Control Interface Assembly, SPX3200LCD
Hayward

Digital Control Interface Assembly, SPX3200LCD

$45999
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$31199
Subtotal

Similar products

Other products people compare with this one.

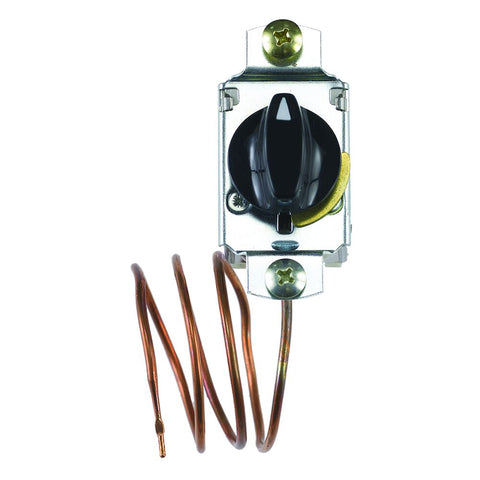

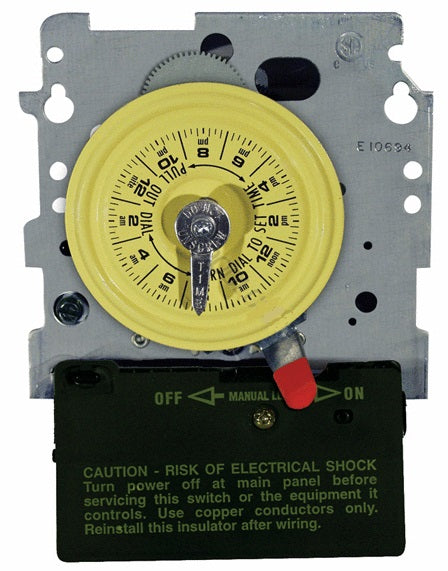

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 WPCTC replacement time clock for the WPC-2 wireless pool control S.R. Smith WPC-2 Replacement Time Clock for Pool Cleaner Booster, WPCTC$12399 Intermatic T101P3 24-hour 120V mechanical time switch, SPST, with Type 3R plastic enclosure Intermatic T101P3 24-Hour 120V Mechanical Time Switch, SPST, Type 3R Plastic Enclosure$9544 Intermatic P1101 outdoor mechanical plug-in timer with built-in enclosure Intermatic Outdoor Mechanical Plug-In Timer with Built-In Enclosure, P1101$6399 Intermatic PB913N66 24 hour panel mount time clock timer mechanism, 120V Intermatic Time Clock Timer Mechanism PF and RC Series Panel Mount 24hr 120V, PB913N66$5799 Intermatic T103M 110V time clock mechanism only Intermatic Time Clock Mechanism Only, 110V, T103M$9099 Intermatic T106M 208/277 volt SPDT time clock mechanism Intermatic T106M 208/277 Volt, SPDT Time Clock Mechanism$10499 Intermatic MECHANISM ONLY 120V | T101M Intermatic MECHANISM ONLY 120V | T101M$8699
Intermatic Complete Timer W Metal Case 120V | T101R3 Intermatic Complete Timer W Metal Case 120V | T101R3$13099 Intermatic 2T511GA gray metal Type 3R rain tight outdoor time clock case Intermatic Rain Tight Outdoor Time Clock Case, Type 3R Metal, Gray, 2T511GA$8599 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic 2T2502GA beige plastic weatherproof case for the T100R timer Intermatic Beige Plastic Case for T100R, 2T2502GA$5299 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Aquabond LIGHT NICHE COMPOUND | ABP-1000 Aquabond LIGHT NICHE COMPOUND | ABP-1000$5099 Intermatic PF1102M 240V freeze protection thermostat mechanism Intermatic Freeze Protection Thermostat Only for 240V Applications, Mechanism, PF1102M$17999 Eaton Corporation Cutler-Hammer CUTLER HAMMER DUAL BREAKER 2 POLE 20/50 AMP | BQ220250 Eaton Corporation Cutler-Hammer CUTLER HAMMER DUAL BREAKER 2 POLE 20/50 AMP | BQ220250$4899 Intermatic T101P201 24 hour 120V mechanical time switch in a Type 3R plastic enclosure Intermatic 24-Hour 120V Mechanical Time Switch, SPST, Pool Heater Protection, Type 3R Plastic Enclosure, T101P201$18143 Web Price

Product details

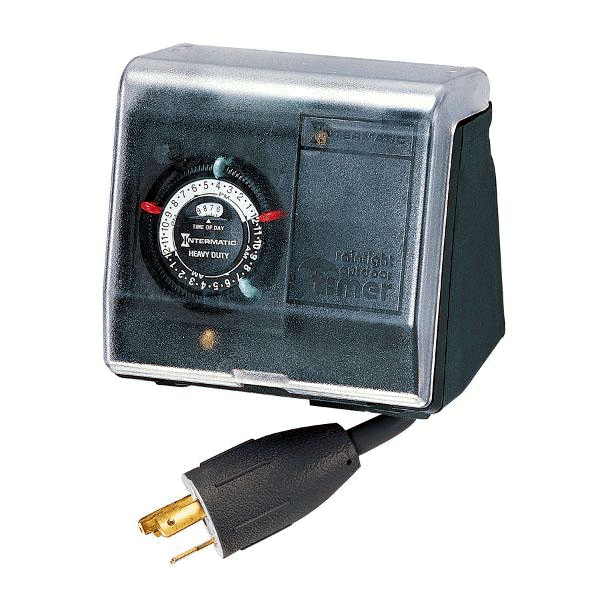

The Intermatic P1131 is a heavy duty portable outdoor time clock rated at 20 amps, fitted with a twist-lock plug and receptacle.

What it is for

Intermatic builds these portable timers to run the filter pump on a portable spa or an above ground pool. The timer sits between the outlet and the pump, so filtration runs on a set schedule without anyone remembering to switch it. The same unit is often used to time outdoor lighting and seasonal decorations.

Why twist-lock

A twist-lock plug and receptacle turn to lock rather than simply pushing in. Around a pool or spa, where cords get knocked and pulled, that connection stays made. Nothing has to be wired in, so setting it up is a matter of plugging the timer into the outlet and the pump into the timer. Check the amp draw on your pump nameplate against the 20 A rating before you connect it.

Specifications
Brand Intermatic
Manufacturer part number P1131
UPC 078275060982
Type Portable outdoor time clock
Rating 20A
Connection Twist-Lock plug and receptacle
Construction Heavy duty
Application Filter pump of a portable spa or above ground pool
Shipping weight 1.75 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12699 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499 Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600$34399

Questions and answers

What people ask about this product, answered by our pool techs.

What is this timer designed to control?
Intermatic designs these portable outdoor time clocks to control the filter pump of a portable spa or an above ground pool. They also work for switching outdoor decorations.
What is the twist-lock connection for?
The plug and receptacle twist to lock together, so the pump cord cannot be tugged loose in normal use around a pool or spa.
Does it need to be wired in?
No. It plugs into the existing outlet and the pump plugs into it, so there is no panel or hard wiring work.
What load will it take?
It is rated at 20 amps. Check the nameplate draw of your pump before connecting it.
