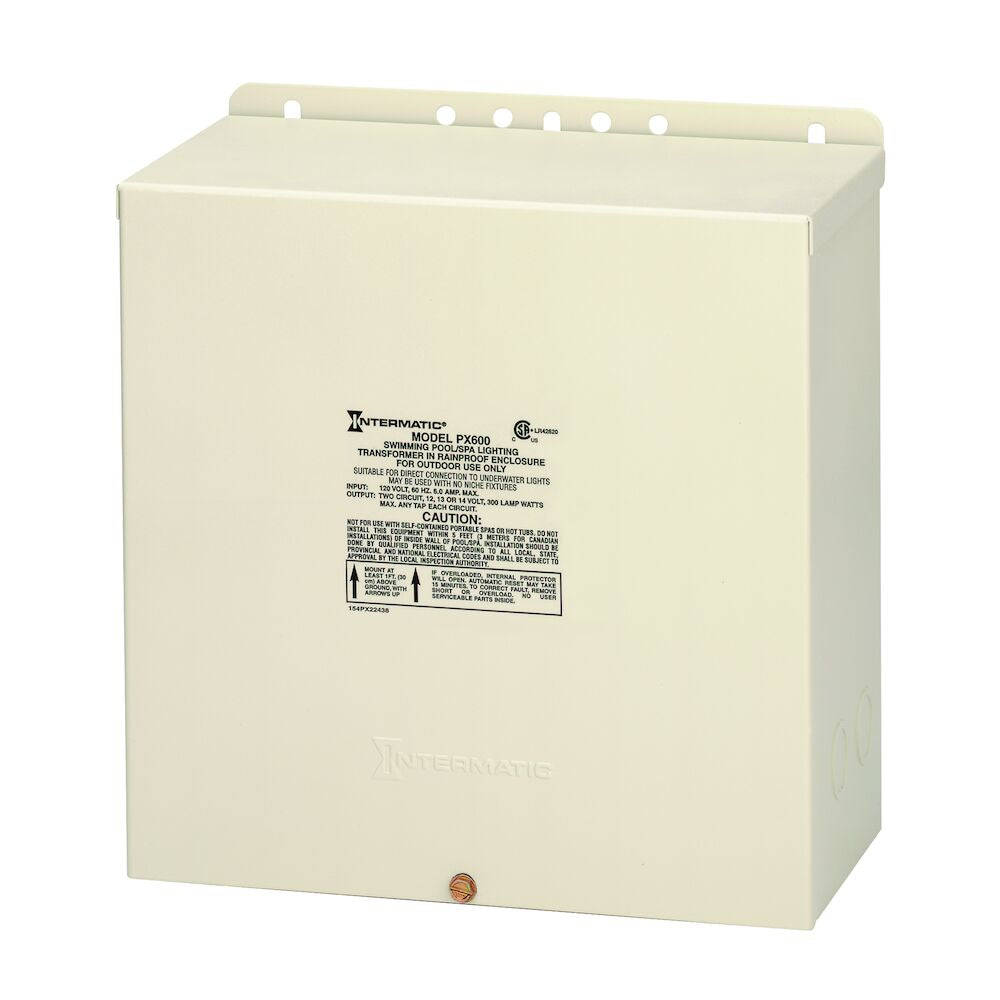

Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosureIntermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600 In stock$34399
Intermatic PX600 600 watt pool and spa safety transformer in beige steel enclosure
Shop all Intermatic

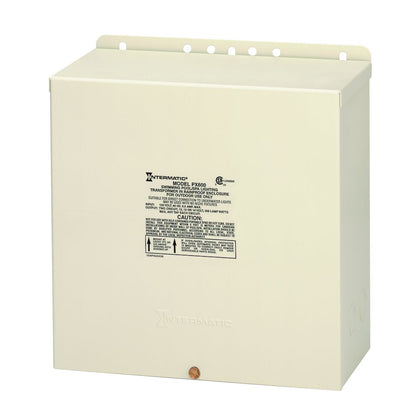

Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600

Ask a questionMPN PX600
$34399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 600 watts The 600 watt model in the Intermatic safety transformer range.
  • Selectable output 12, 13 or 14 volts out, so voltage drop over a long cable run can be made up at the transformer.
  • Grounded shield A grounded shield between the primary and secondary windings, which is what makes it a safety transformer.
  • Built in circuit protection Power is disconnected automatically in the event of a defect or an overload.
  • Beige steel enclosure Housed in a steel enclosure finished in beige.
  • Low voltage lighting Feeds pool, spa, fountain and garden lighting from a standard 120 volt supply.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600, SKU INT-30-1311. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Intermatic 600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600
Intermatic

600 Watt Pool and Spa Safety Transformer, Beige Steel Enclosure, PX600

$34399
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9599
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7299
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$6099
Intermatic On/Off Trippers Set, 156T1978A
Intermatic

On/Off Trippers Set, 156T1978A

$1199
Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121
Intermatic

Heavy Duty 15 Amp Outdoor Timer, P1121

$5599
Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige
Intermatic

PX100 Safety Transformer, 100W, Steel Enclosure, Beige

$12540
Subtotal

Similar products

Other products people compare with this one.

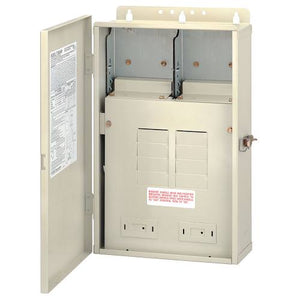

Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499 Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S Intermatic 300W 120V to 12 13 or 14V Transformer | PX300S$24499 Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S Intermatic 100W 120V to 12V Transformer Stainless Housing | PX100S$17799 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic T30000R5 100 amp load center subpanel with eight breaker spaces Intermatic 100 Amp Load Center Subpanel, 8-Breaker Spaces, T30000R5$18999 Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R Intermatic DUAL BOX W/SINGLE T104M 208-277V TIMER | T10004R$27499 Intermatic PX50 50 watt pool and spa safety transformer in a beige steel enclosure Intermatic 50 Watt Pool and Spa Safety Transformer, Input 120V, Output 12, 13, 14 Volt, Beige Steel Enclosure, PX50$14399 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 143T135 DPST relay with 240 VAC coil, rated 3 HP Intermatic DPST Relay with 240 VAC Coil, 3 HP, for Pool and Spa Pump Control, 143T135$7699 Intermatic 300W | 120V to 12V Transformer | PX300 Intermatic 300W | 120V to 12V Transformer | PX300$16199
Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999

Product details

The Intermatic PX600 is a 600 watt safety transformer for pool and spa lighting. It takes a 120 volt supply and steps it down to a selectable 12, 13 or 14 volts for submersible fixtures and outdoor lighting, in a beige steel enclosure.

What makes it a safety transformer

A grounded shield runs between the primary and secondary windings, which is the feature that separates a safety transformer from an ordinary one when the load is sitting in water. Built in circuit protection backs that up by disconnecting power to the transformer if there is a fault or an overload rather than letting it run on.

Picking the output tap

The three output voltages exist because low voltage cable loses voltage over distance. A short run is happy on 12 volts; a long one arrives dim, and moving up to the 13 or 14 volt tap puts the fixture back where it should be. Size the total lamp load against the 600 watt rating, and leave headroom rather than running the transformer at its limit.

Specifications
Brand Intermatic
Manufacturer part number PX600
UPC 078275079854
Type Pool and spa safety transformer
Rating 600 Watt
Input 120 VAC, 6 Amp, 60 Hz
Output 12, 13 or 14 V
Enclosure Beige steel
Applications Pool lights, spa lights, garden lights, fountain lights
Shipping weight 23.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Intermatic

Intermatic T104M 24-hour DPST mechanical time switch mechanism, 208-277V Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M$9599 Intermatic 178T24 freeze protection thermostat with knob and wiring Intermatic Freeze Protection Thermostat, 178T24$7299 Intermatic PB914N66 24 hour panel mount timer, 240V Intermatic 24HR Panel Mount Timer 240V, PB914N66$6099 Intermatic 156T1978A on and off tripper set for T100 Series time clocks Intermatic On/Off Trippers Set, 156T1978A$1199 Intermatic T104P201 24 hour DPST mechanical time switch in plastic enclosure Intermatic 24-Hour DPST Mechanical Time Switch with Heater Protection, 208-277V, T104P201$17705 Intermatic PX100 100 watt pool and spa safety transformer in a beige steel enclosure Intermatic PX100 Safety Transformer, 100W, Steel Enclosure, Beige$12540 Intermatic P1121 heavy duty 15 amp outdoor plug-in timer Intermatic Heavy Duty 15 Amp Outdoor Timer, P1121$5599 Intermatic T30004R 100 A pool and spa load center with T104M mechanism Intermatic 100 A Load Center with T104M Mechanism, 8-Breaker Spaces, T30004R$28572 Web Price Intermatic PF1103MT freeze protection timer with thermostat, 120/240V mechanism Intermatic Freeze Protection Timer with Thermostat for 120/240V Applications, Mechanism, PF1103MT$27499 Intermatic PJB4175 four light pool and spa junction box Intermatic 4 Light Connection Pool & Spa Junction Box, PJB4175$6701 Web Price
Intermatic P1403ME electronic pump motor controller mechanism with seasonal adjustment Intermatic Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Mechanism Only, P1403ME$27799 Intermatic T104P3 24-hour mechanical time switch in Type 3R plastic case Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Plastic Enclosure, T104P3$12699 Intermatic P1131 20 amp portable outdoor timer with twist-lock plug Intermatic 20A Timer with Twist-Lock Plug, P1131$11499 Intermatic RC2343PT four function air switch with 24 hour timer Intermatic 4 Function Air Switch with Timer, RC2343PT$34199 Intermatic T104R3 24 hour DPST mechanical time switch in Type 3R metal enclosure Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Type 3R Metal Enclosure, T104R3$13199 Intermatic AG3000 three mode surge protective device in an outdoor enclosure Intermatic AG3000 Surge Protective Device, 3-Mode, 120/240 VAC, Outdoor$9499 Intermatic WG1573-10D 208/277 volt 60 Hz time clock motor Intermatic 208/277 Volt, 60 Hz Replacement Time Clock Motor, WG1573-10D$5199 Intermatic PS3000 surge protector for pool and spa equipment Intermatic PS3000 Surge Protector for Pool and Spa Equipment, 120/240V$11999 Intermatic 21T156A 3 inch standoff spacer, four pack Intermatic 3" Standoff Spacer, 4 Pack, 21T156A$1999 Intermatic T40004RT3 load center with 300 W transformer and T104M time switch mechanism Intermatic 100 A Load Center with 300 W Transformer and T104M Mechanism, 8-Breaker Spaces, T40004RT3$37499

Questions and answers

What people ask about this product, answered by our pool techs.

What is the input and output?
Input is 120 VAC at 6 amps, 60 Hz. Output is selectable at 12, 13 or 14 volts.
Why would I pick 13 or 14 volts instead of 12?
Long low voltage cable runs lose voltage along the way. Tapping a higher output at the transformer compensates so the fixture still sees close to 12 volts.
What makes it a safety transformer?
A grounded shield sits between the primary and secondary windings, and built in circuit protection cuts power to the transformer if there is a defect or an overload.
What can I run from it?
Pool and spa lights, submersible fixtures, and outdoor garden and fountain lighting, up to its 600 watt rating.
Ask your own question
